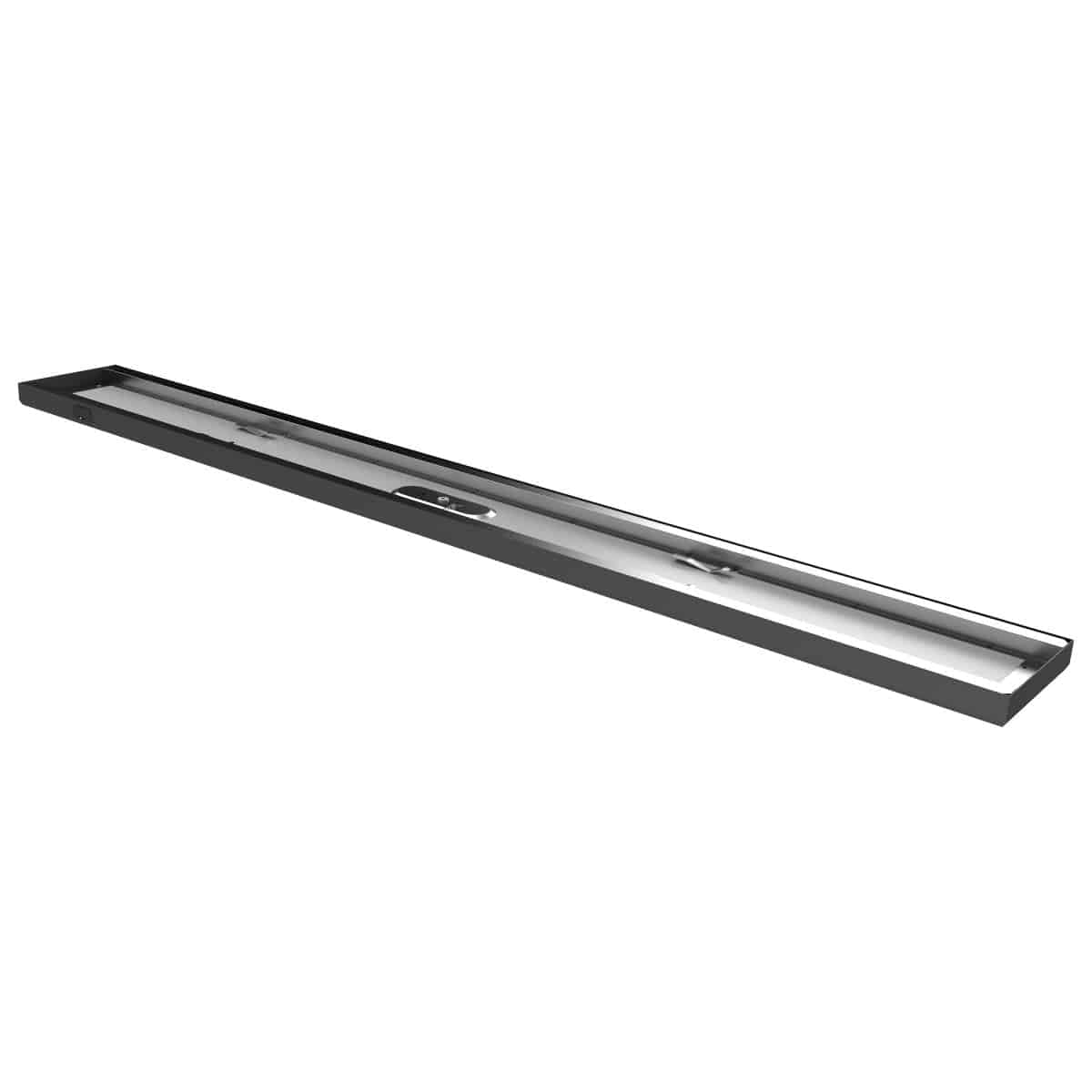

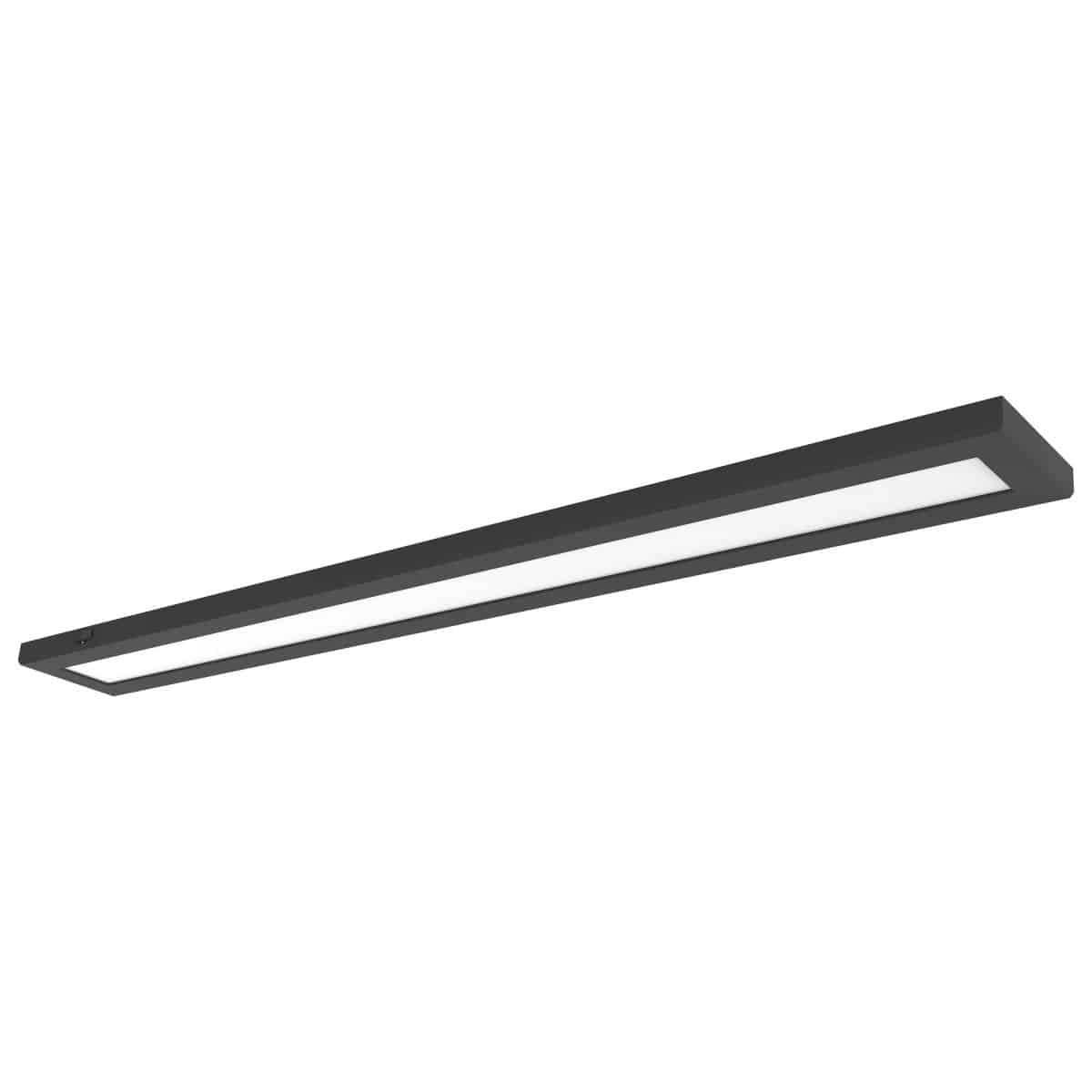

42 Watt; 5.5 in. x 48 in.; Surface Mount LED; CCT Selectable; 90 CRI; Black Finish; 120/277 Volt; Rectangular Shape

Part : 62-1782

Price:
Sale price$167.99

Please contact us for quantity discount

Description

42 Watt; 5.5 in. x 48 in.; Surface Mount LED; CCT Selectable; 90 CRI; Black Finish; 120/277 Volt; Rectangular Shape

pdf download

General
Status Active
Fixture Type Surface Mount
Finish Black
Wattage 42W
Lumen Output 2800L-2950L
CCT (Kelvin) 2700K/3000K/3500K/4000K/5000K
Indoor or Outdoor Fixture Indoor
Specifications
Technology LED
Wattage 42W
Lumen Output 2800L-2950L
CCT (Kelvin) 2700K/3000K/3500K/4000K/5000K
Color Temperature Warm to Cool White
CRI 90
Voltage 120V/277V
Beam Angle 110
Rated Hours 50000
Operating Temperature -20C (-4F) to +40C (+104F)
Dimmable Yes-Dimmable
Dimming Note 120V only
Lens Material Poly methyl methacrylate (PMMA)
Surge Protection Built-in surge protection - 2.5KV
Weight (lb.) 5.43
Material Die-cast Aluminum
Dimensions
Height (in.) 1.06
Width (in.) 5.61
Length (in.) 47.72
Compliance
Safety Listing cETLus - Listed
Location Rating Damp
Energy Star Yes
ES Unique ID ESID-2405329
DLC Approved No
CA T20 / T24 Rationale California T24 2016 - 2022 JA8 Listed
Title 20 / 24 Status California T24 Listed
California Prop 65
RoHS Compliant Yes
FCC Compliant Yes
Flicker Free No
SDS Sheet LED Fixture
Additional Information
Additional Information UGR - 21.5; Hi pot - DC-1550V; Edge-lit - Yes
Installation Notes Compatible with 3" & 4" J-box and pancake J-box
Warranty 5 Year Limited - Fixtures
Packaging
Each UPC 045923613111
Each Quantity 1
Each Length (in.) 48.03
Each Width (in.) 1.18
Each Height (in.) 5.91
Each Weight (lb.) 7.21
