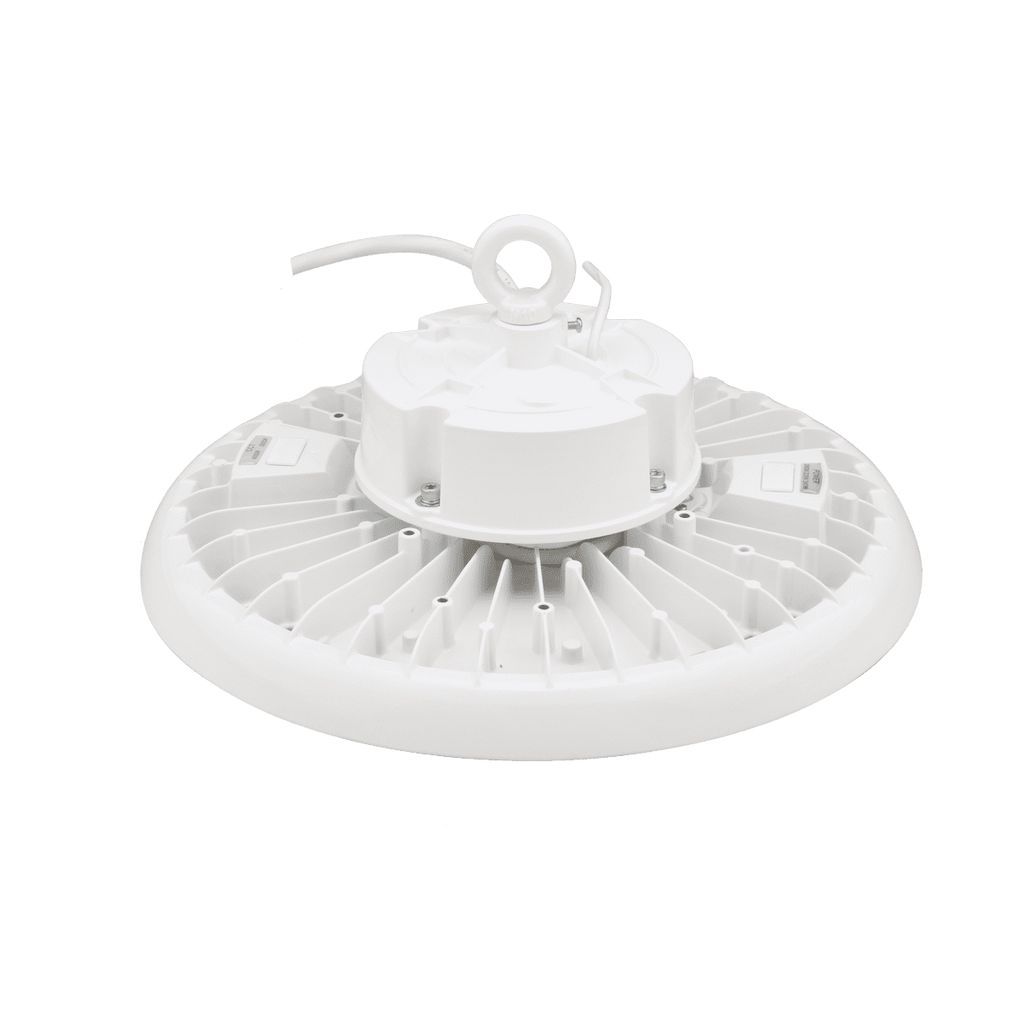

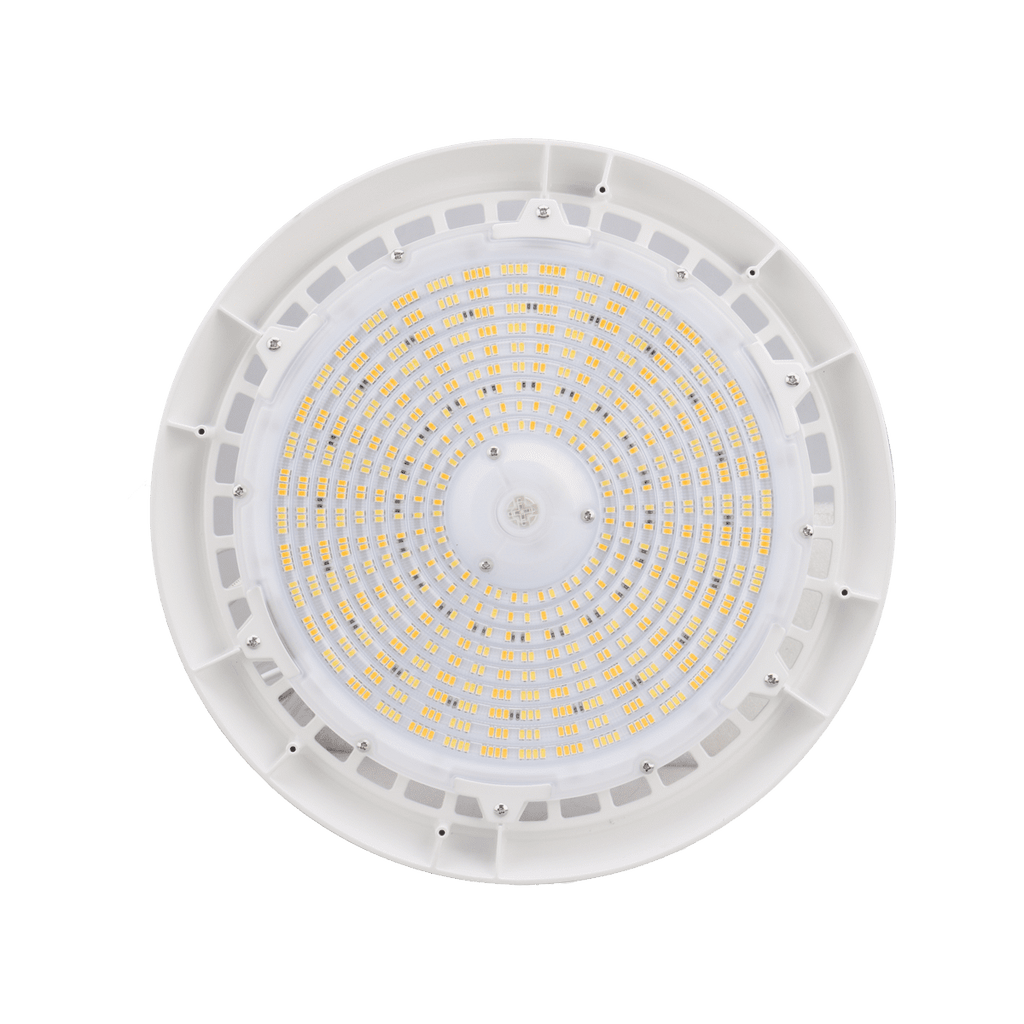

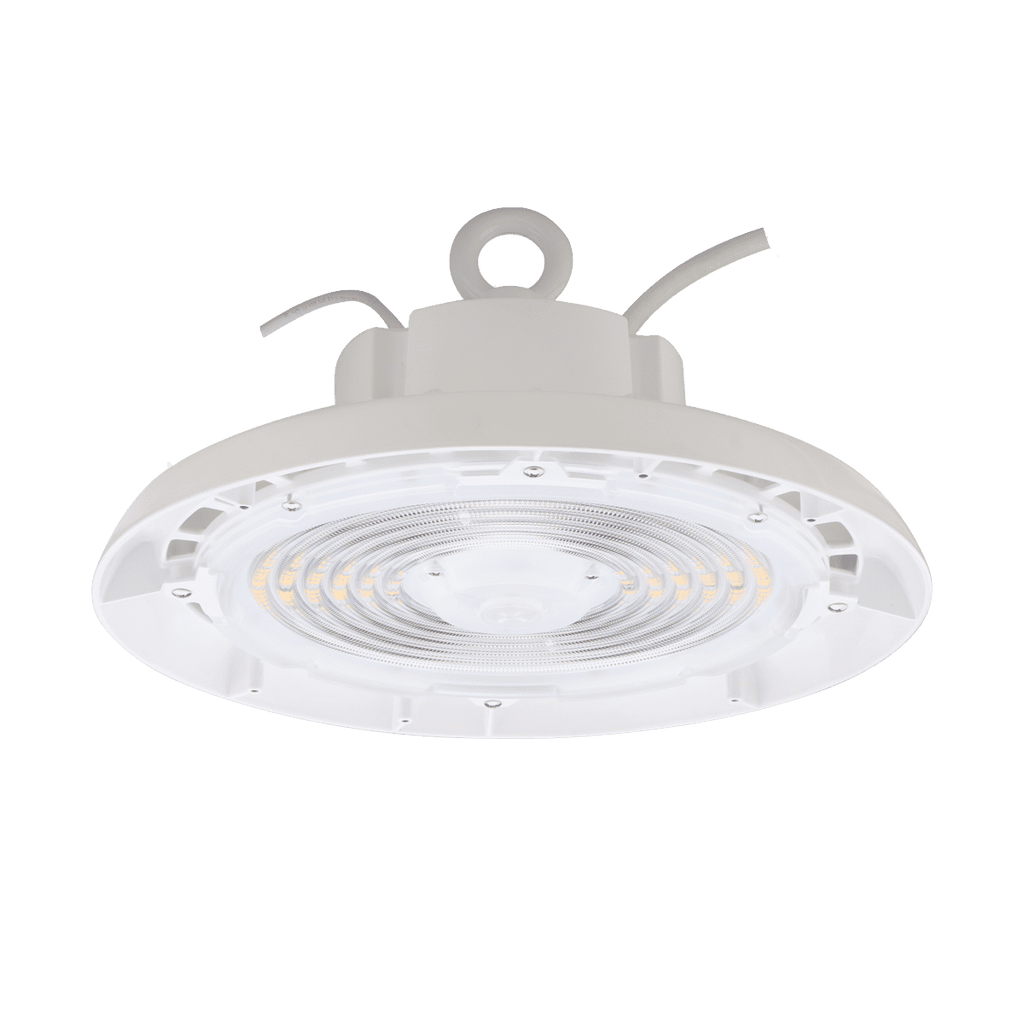

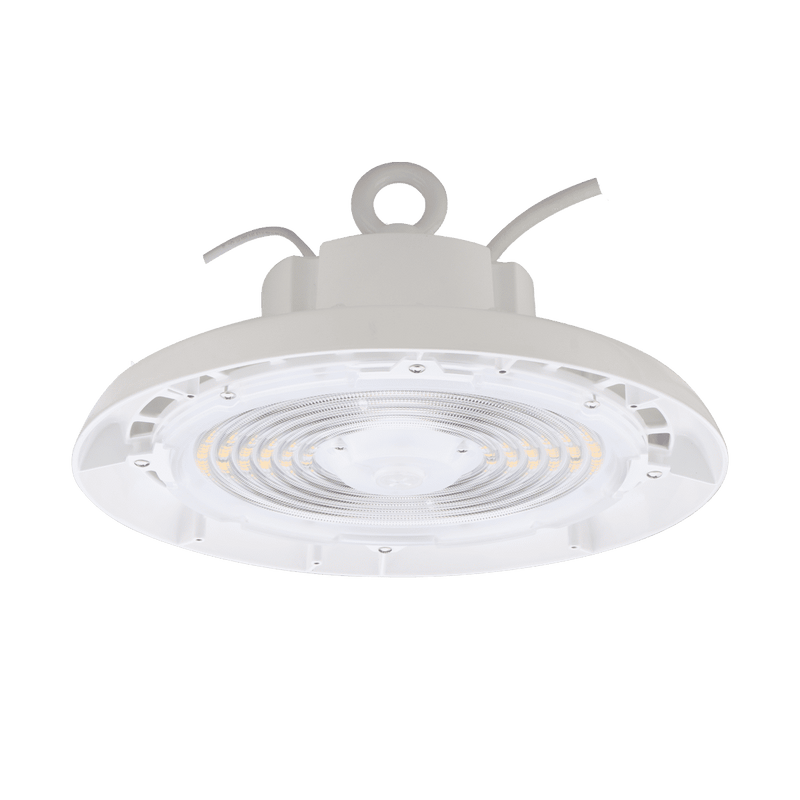

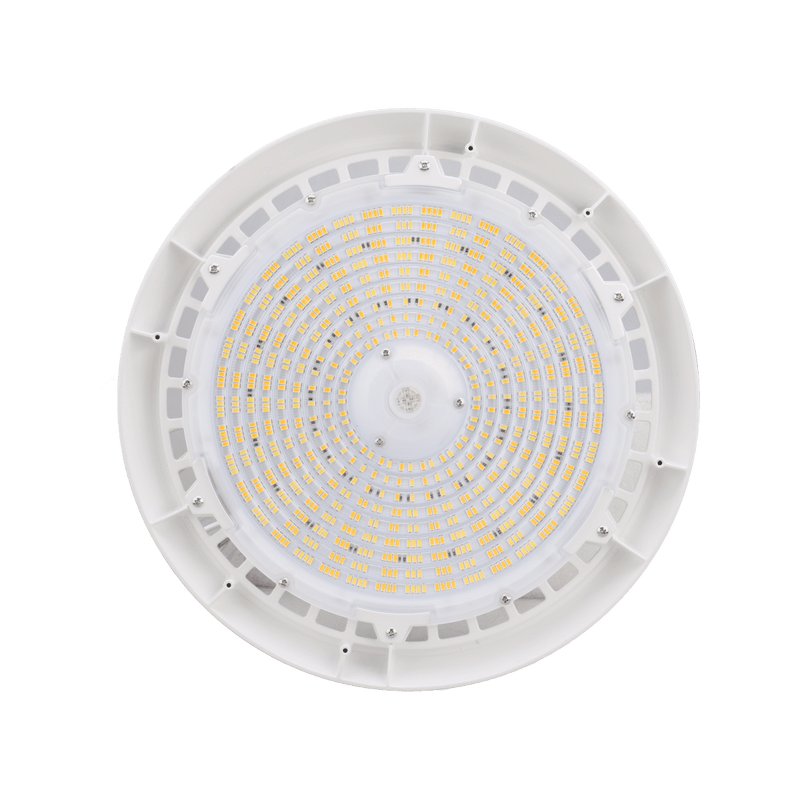

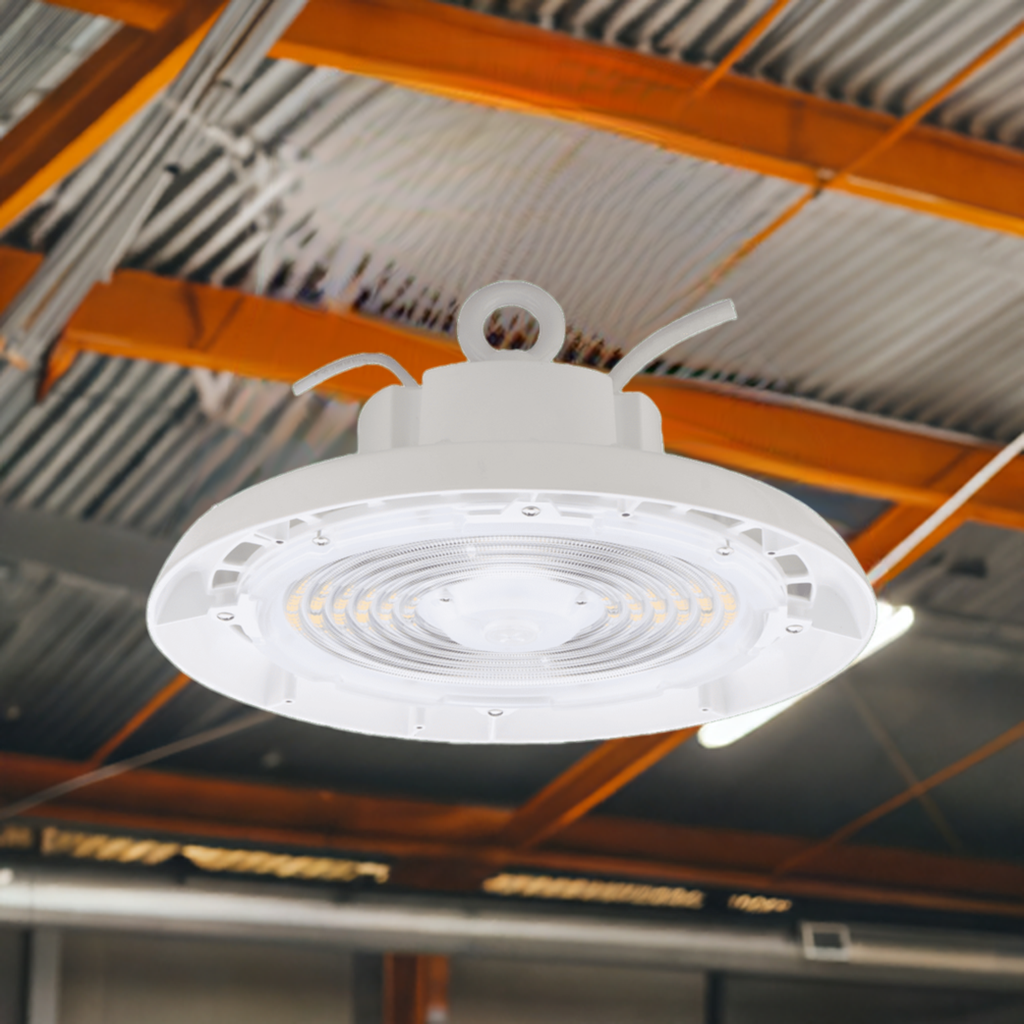

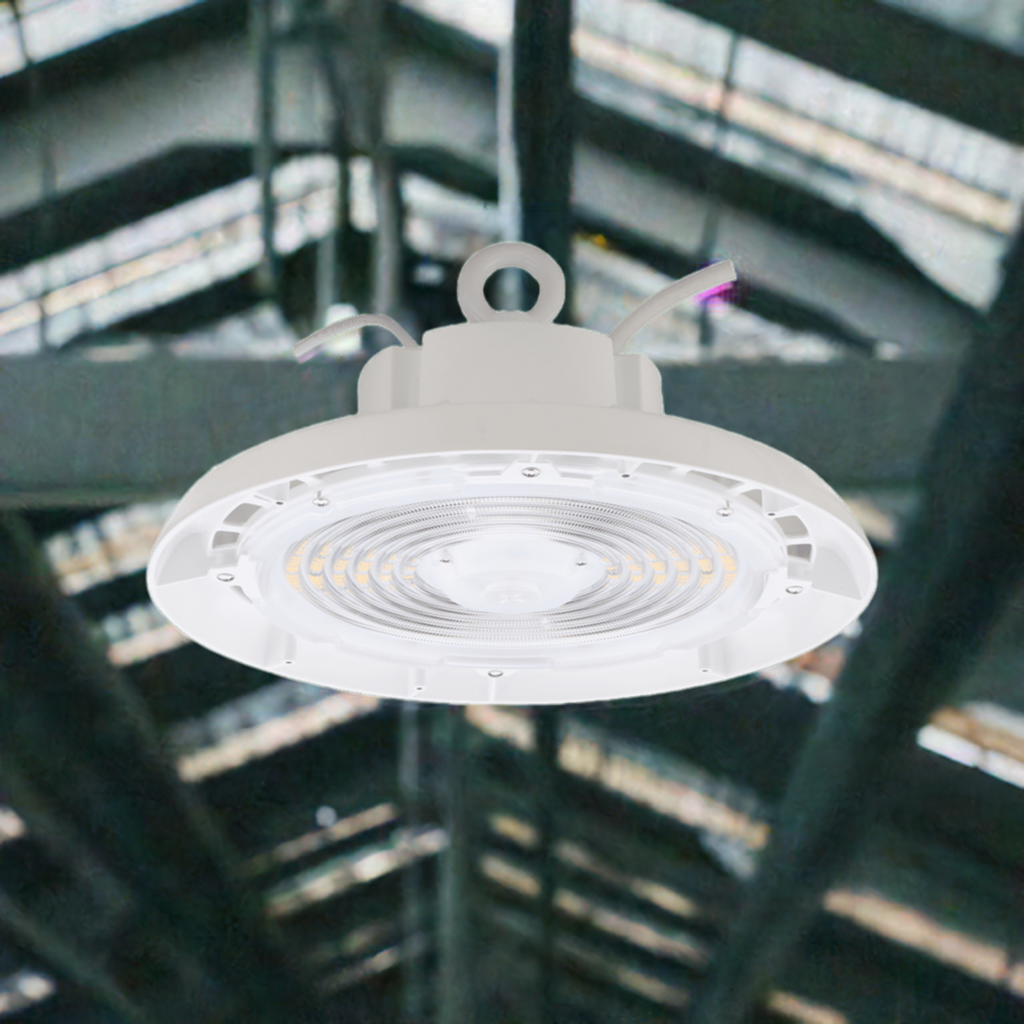

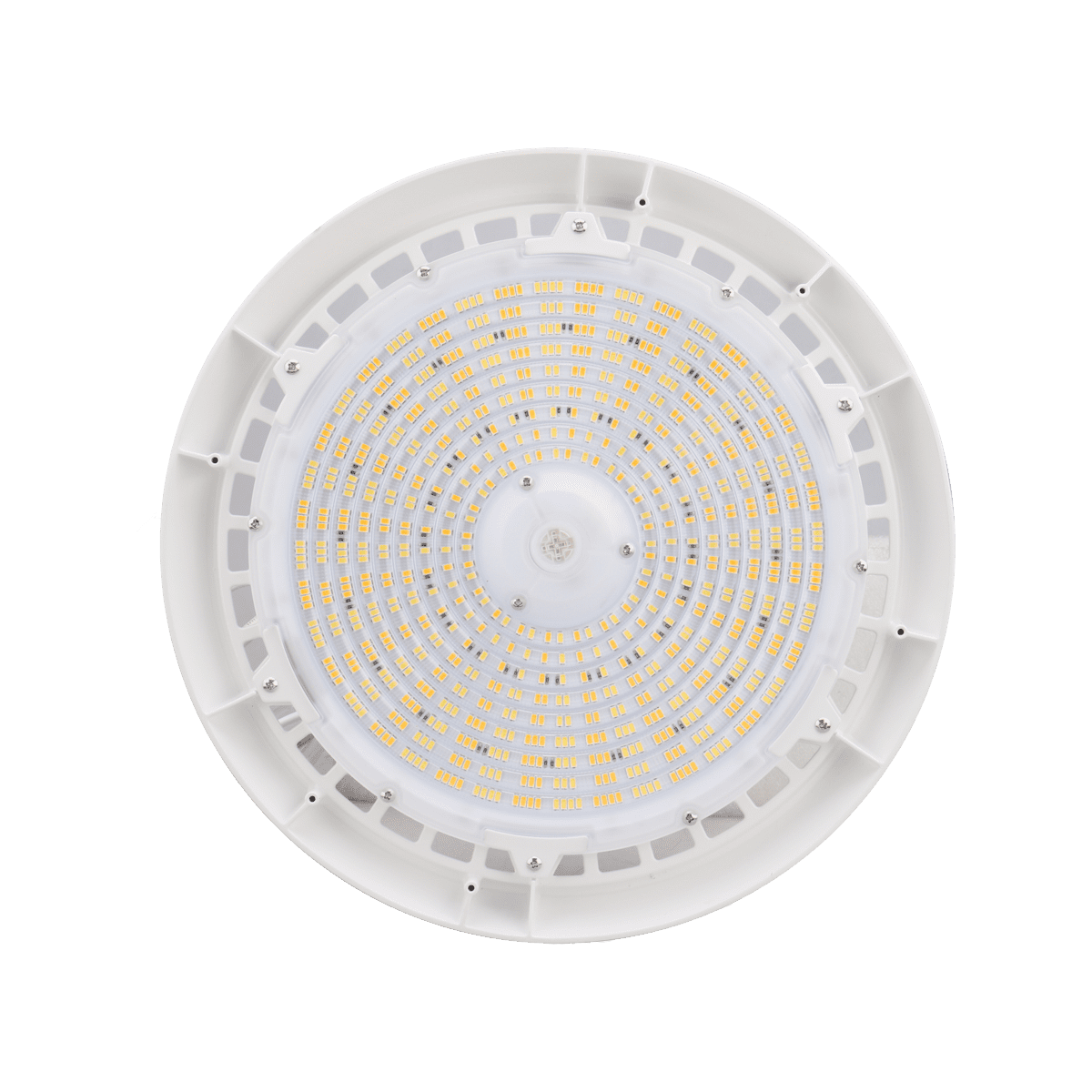

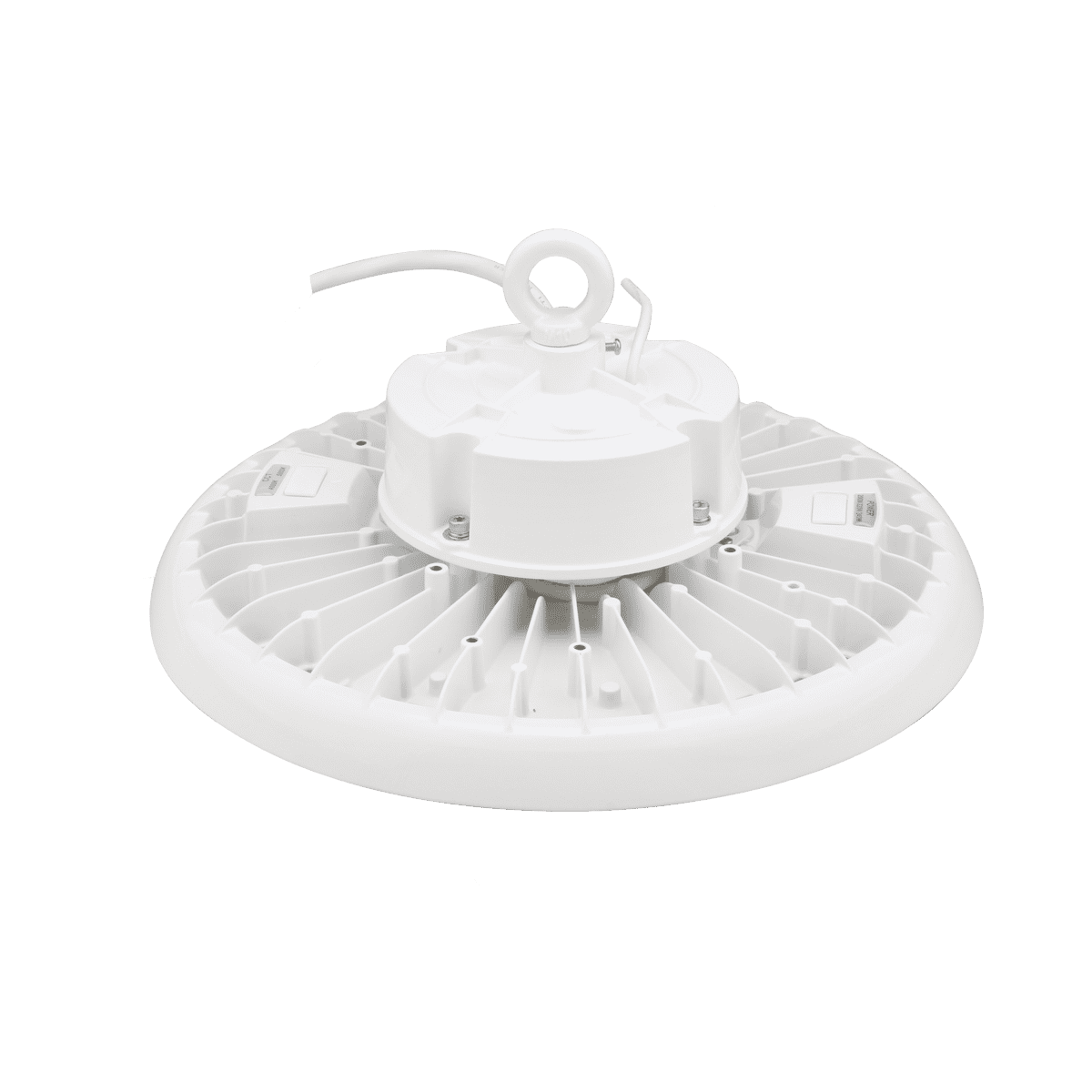

BAYE3 Round High Bay, 240/200/180W, 3500/4000/5000K, 120-277V, 0-10V Dimming, White

Part : 13166

Price:
Sale price$155.00

Please contact us for quantity discount

Description

BAYE3 Round High Bay, 240/200/180W, 3500/4000/5000K, 120-277V, 0-10V Dimming, White

pdf download

BAYE3-PS240-FCCT-U-WH

Order Code:13166

Product Specifications
Voltage 120-277VAC
Lumens (lm) 36,000 lm / 30,000 lm / 27,000 lm
Wattage 240W / 200W / 180W
Efficacy (lm/W) 150 lm/W
CCT (K) 3500K / 4000K / 5000K
CRI 80+
Dimming 0-10
Replacement for Up to 750W HID
T20 Status Exempt
IP Rating IP65
Wet/Damp/Dry Location Wet
Dimensions (L x W x H) L: 13 3/8" (340 mm), W: 13 3/8" (340 mm), H: 5 3/4" (146 mm)
Housing Color Matte Black
Lens Material New Polycarbonate (PC)
Ambient Temp Range -40F to 122F (-40C to 50C)
Driver Surge Protection (kV) new L/N-PE: 6kV, L-N: 6kV
Auxiliary Output Yes (12V)
