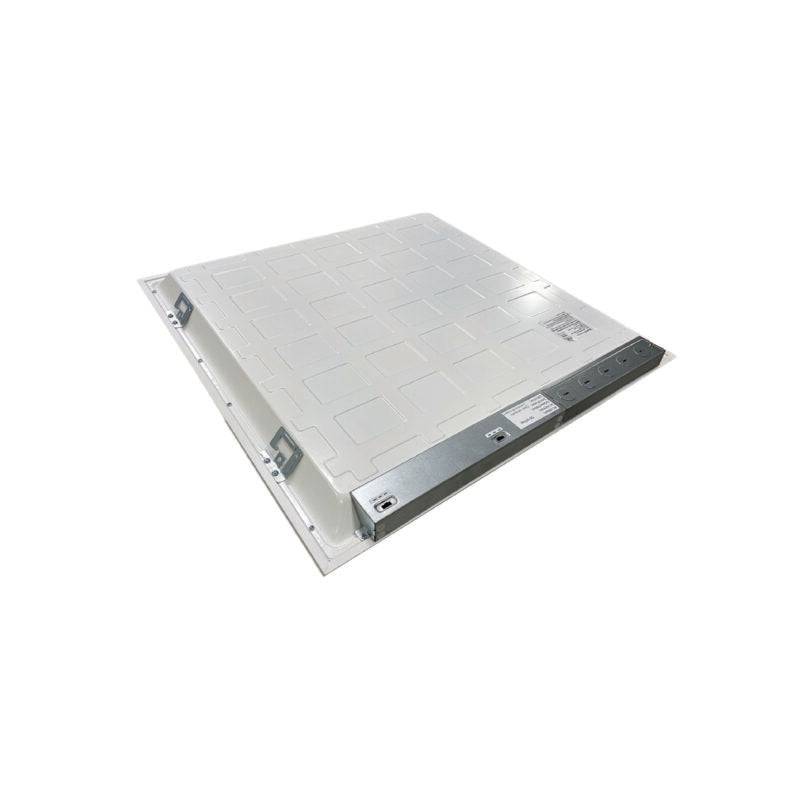

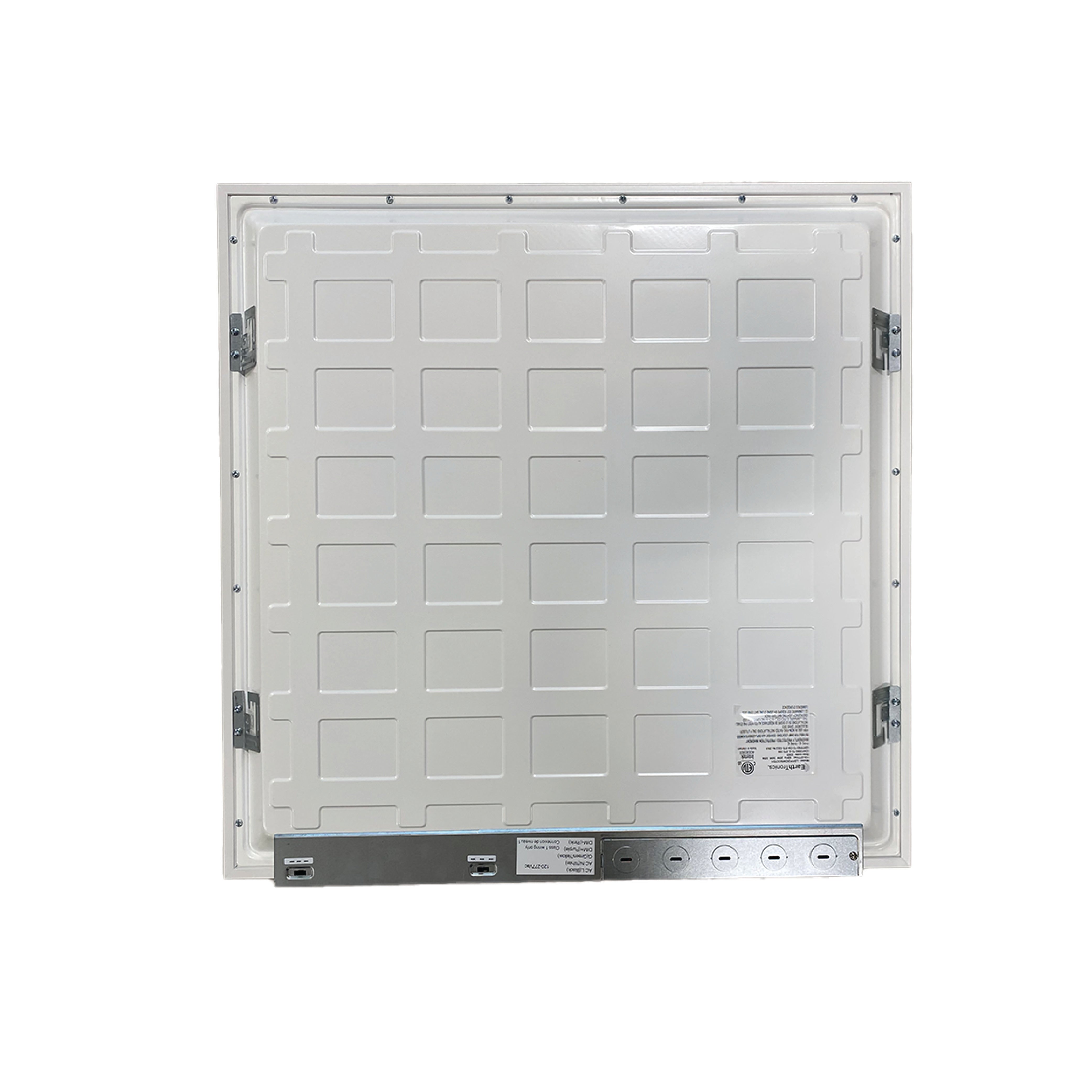

(2-Pack) Back Light Panel 2x2 20-30-35 Watt 2200/3300/4000LM 3CCT Selectable 120-277V


Sale price$75.99

Please contact us for quantity discount


(2-Pack) Back Light Panel 2x2 20-30-35 Watt 2200/3300/4000LM 3CCT Selectable 120-277V

pdf download

This 2x2 LED back light design provides the flexibility to insure the correct light level and color temperature desired in different applications. Select from 3500K,  4000K or 5000K color temperatures as well as 2200, 3300 or 4000 lumen levels with a switch located on the driver housing. The lightweight housing and slim design, measures only 1.5 inches in depth. The integral j-box and driver housing provide ample access for easy installation. The fixture is constructed using stamped steel back plate that provides excellent LED cooling as well as contributing rigidity to the design. The interior of the fixture is highly reflective white powder coated. The direct illumination panel is ideal for use in offices, schools, healthcare facilities and other commercial applications. This 2x2 panel features 120-277V voltage operation with an electronic driver that works with 0 – 10 volt dimming systems. DLC® listed.

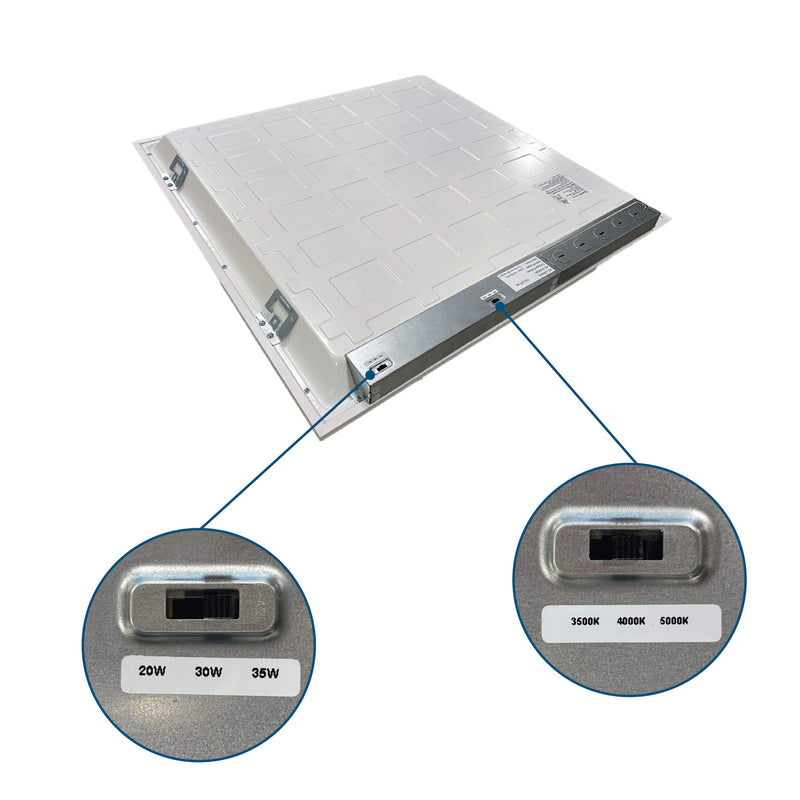

  • Select Color of Light & Wattage (Lumen) at installation with a simple switch located on the driver
  • Select from 3500K, 4000K or 5000K color of light

Master Carton Qty: 2
24.65” Length x 25.75” Width x 3.67” Depth
Weight: 9.4 LBS
UPC: 840791116739

  • Select from 2200, 3300 or 4000 lumen levels
  • Driver standard with 0-10V dimming (prewired)
  • Fixture interior painted white for over 96% reflectivity
  • Continuous dimming to 10% or below
  • Contractor friendly box for easy installation
  • Aluminum frame fits properly in drop ceiling panels
  • Integral LED lens is constructed from PMMA and provides even illumination across the face of the panel
  • IC Rated
  • DLC® Technical Requirement 5.1
  • 120-277V
  • Optional Accessory (ordered separately): Emergency Backup Driver
