6 Inch 10/12/17 Wattage & Color Selectable

Part : RCF610WCSDW

MaxLite: MaxLite
Sale price$44.98

Please contact us for quantity discount

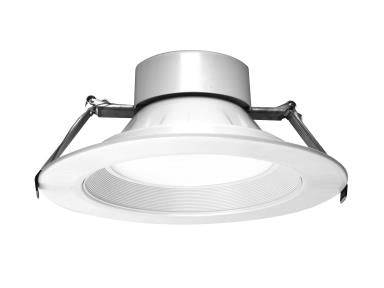

MaxLite 6 Inch 10/12/17 Watt Color Selectable LED Recessed Commercial Downlight Retrofit 3000K/3500K/4000K

pdf download

Watts (W) 10/12/17
Voltage (V) 120-347
Delivered Lumens (lm) 1000/1200/1700
Efficacy (lm/W) 100
Color Rendering Index (CRI) ≥80
Color Temperature (K) 3000/3500/4000
Equivalent Wattage 12W /18W/ 20W CFL
Beam Angle 104
Power Factor 0.90
Min. Ambient Temp (°F) -4
Max. Ambient Temp (°F) 104

The Universal Commercial Downlight is an economical, all-in-one

solution for adding recessed downlighting to hospitality, retail, office

, and other commercial lighting applications. It is both wattage and CCT

selectable, allowing for easy, on-the-job customization. The downlight

is designed with an integral whip that connects directly to a junction

box (existing or independently mounted) and an integral driver that

eliminates the need for a traditional recessed housing, saving installers

time and money. Easy to install in new construction, remodel and

retrofit projects, the downlight has a slim body that fits into shallow

ceilings. Its white baffle trim blends seamlessly into interiors and

reduces glare for soft, eye-pleasing illumination.


ETL listed as a fixture and a retrofit
Field installable Emergency Battery back up kit available (includes
a test switch and the charge indicator kit, no cover)

Mounts directly into the ceiling, no housing required
Comes standard with 24” power whip
IC Rated (4”, 6”, 8”)

120-347V option available with 0-10V dimming (10%)
Die Cast Aluminum housing
Plastic lens
cETLus for damp locations, Indoor
ENERGY STAR certified
Controls Ready:

Luminaire Level Lighting Control (LLC), individual addressability

and/or grouping, ability to create scenes, and high-Trim/ tuning

sets ( minimum dimming level is 15%) is available and enabled on

the product family with wireless Bluetooth technology via the field

installable c-Max Network power pack and the optional occupancy

PIR sensor
