Description

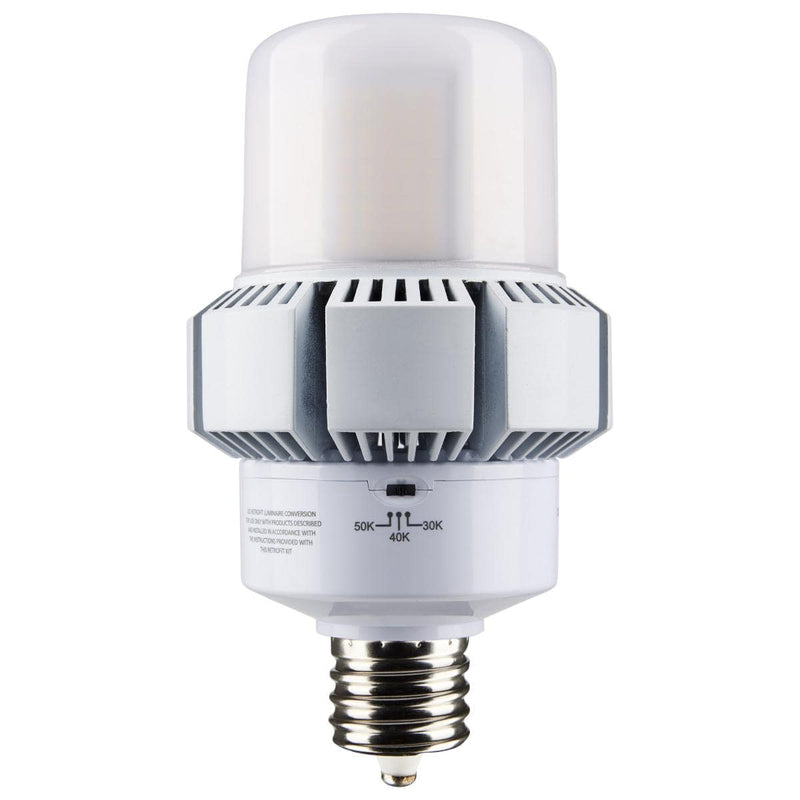

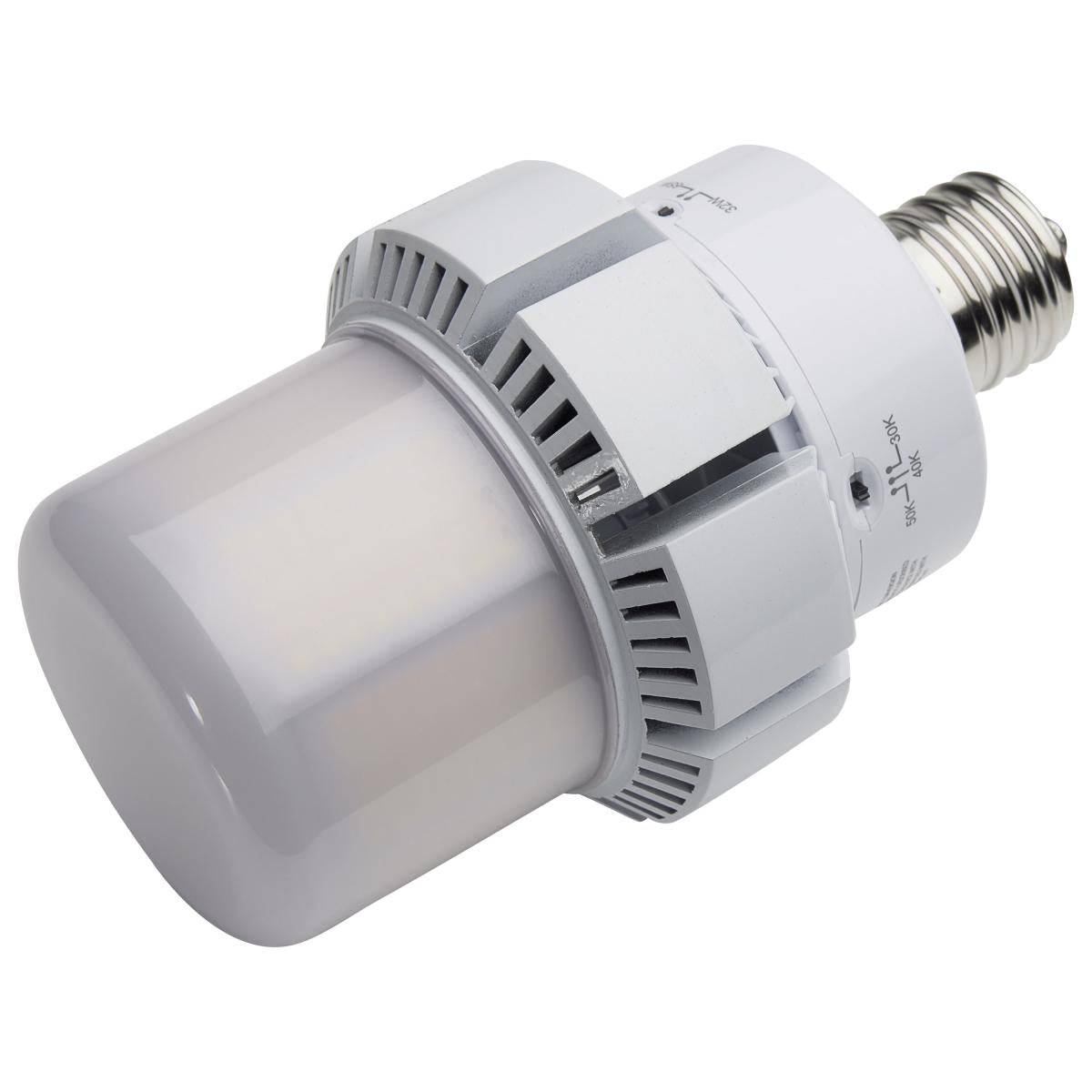

65 Watt; A-Plus 37; LED; CCT Selectable and Wattage Selectable; Extended Mogul base; Type B; Ballast Bypass
General
| Status | Active |
| Watts | 65W/32W |
| Incandescent Equivalent | 400W |
| Fluorescent Equivalent | 150W |
| HID Equivalent | 175W-250W |
| Volts | 100V-277V |
| Shape | AP37 |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | White |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Temperature | Warm to Cool White |
| CRI | 80 |
| Lumens | 8450L/4420L |
| Beam Spread | 280 |
| Hours Rated | 50000 |
| Product Category | Type A |
| Lamp Type | Type A |
| Technology | LED |
| Min Compartment Size | Length: 8 in. Width: 8 in. Height: 11 in. |
| Ballasting Requirements | Ballast Bypass |
Electrical
| Watts | 65W/32W |
| Incandescent Equivalent | 400W |
| Fluorescent Equivalent | 150W |
| HID Equivalent | 175W-250W |
| Volts | 100V-277V |
| Ballasting Requirements | Ballast Bypass |
| Operating Frequency | 50/60Hz |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Temperature | Warm to Cool White |
| CRI | 80 |
| Lumens | 8450L/4420L |
| Beam Spread | 280 |
| Dimming Type | Step Dimming |
| Power Factor | >0.9 |
| Hours Rated | 50000 |
| Operating Position | Universal |
| Surge Protection | Built-in surge protection - 4KV |
| THD | 15% |
| Operating Temperature | -22C (-30F) to +45C (+113F) |
Physical
| MOL | 8.03 |
| MOD | 4.61 |
| Shape | AP37 |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | White |
| Lens Finish | Frost |
| Lens Material | Polycarbonate (PC) |
| Housing Color | White |
| Weight (lb.) | 2.08 |
Additional Information
| Min Compartment Size | Length: 8 in. Width: 8 in. Height: 11 in. |
| Rated For Enclosed Fixture | Yes |
| IP Rating | IP64 |
| Specification Note | Lumen/Watt/CCT Ratio Chart in Documents. |
| Installation Notes | Not for use in vapor tight fixtures. |
| Warranty | 5 Year Limited - Hi-Pro |
Compliance
| Safety Listing | cULus - Certified; cULus - Classified; cULus - Listed |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | S-6YKMLZ |
| CA T20 / T24 Rationale | Exempt - Base Not Regulated |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923131677 |
| Each Quantity | 1 |
| Each Length (in.) | 5.31 |
| Each Width (in.) | 5.31 |
| Each Height (in.) | 9.41 |
