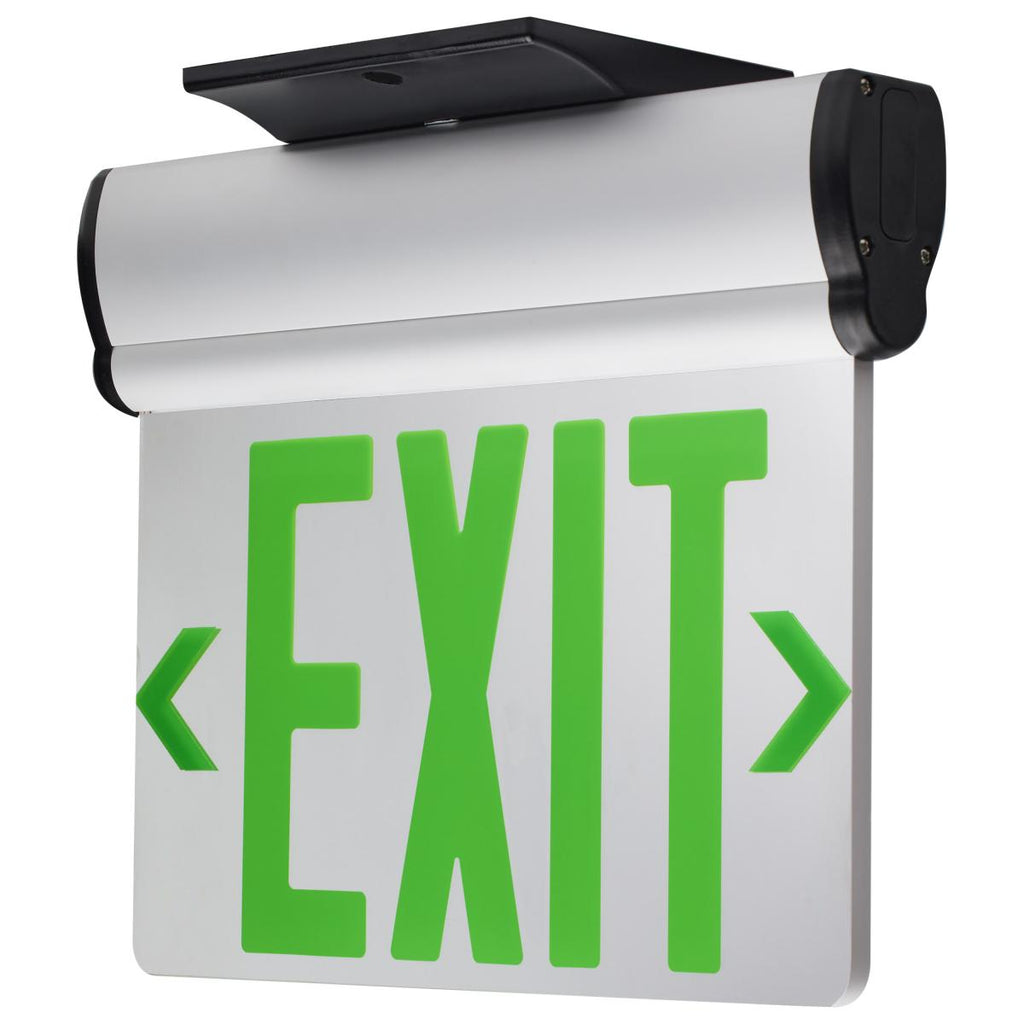

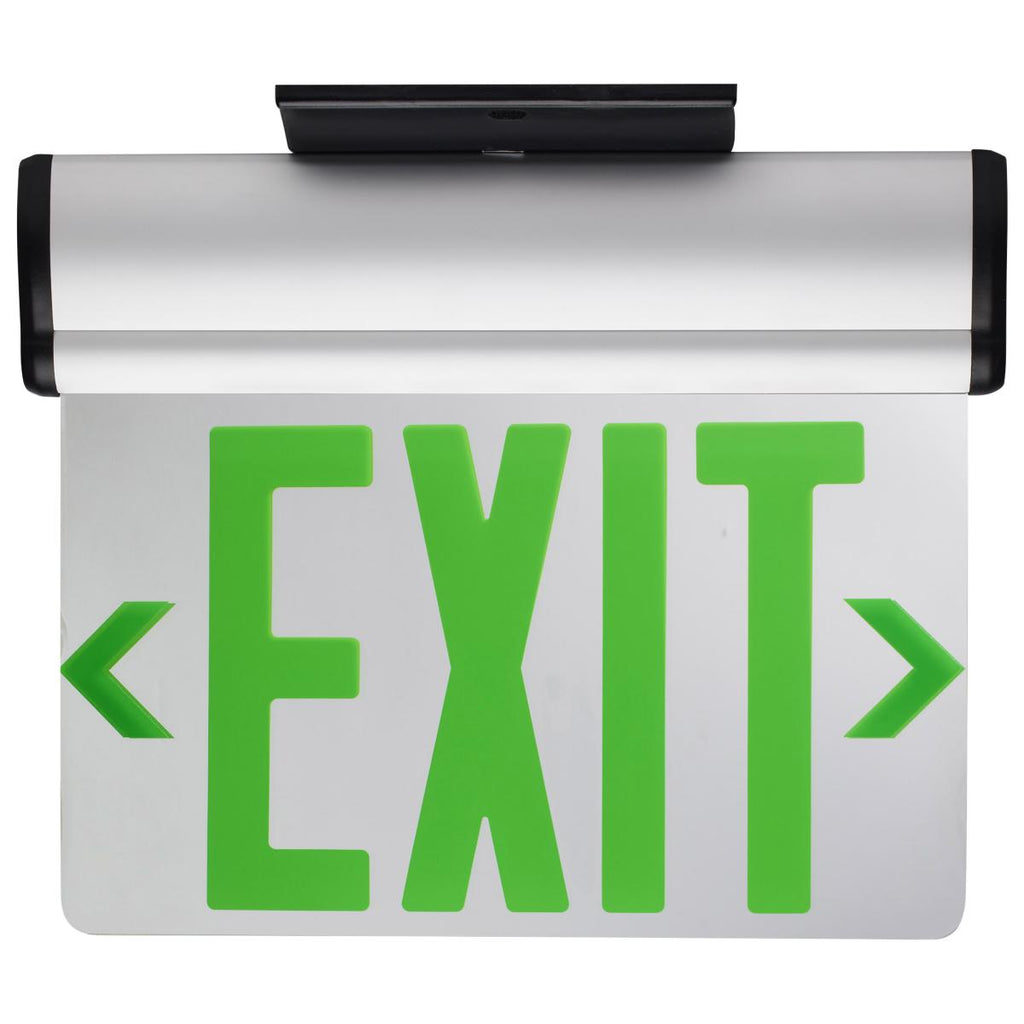

Green (Mirror) Edge Lit LED Exit Sign, 90min Ni-Cad backup, 120/277V, Dual Face, Top/Back/End Mount

Part : 67-110

Sale price$65.99

Please contact us for quantity discount


Green (Mirror) Edge Lit LED Exit Sign, 90min Ni-Cad backup, 120/277V, Dual Face, Top/Back/End Mount

pdf download

SATCO|NUVO's LED Surface Mount Edge-Lit Exit Signs - the perfect solution for your commercial, hospitality and multi-family spaces. Available in four different configurations, these signs are designed with a sleek, brushed aluminum housing and offer configurable arrows, ceiling, wall or side mounting options, and a push-to-test button with an AC supply indicator. With a 90-minute battery backup run time, you can trust these signs to keep your space illuminated in the event of a power outage or emergency. Choose from single face mirrored or dual face clear acrylic with red or green lettering options to fit your specific needs. The surface mount style provides an easy installation process, and the versatility of these signs makes them suitable for a range of applications. OSHA and NFPA compliant, don't compromise on safety - upgrade to SATCO|NUVO's LED Edge-Lit Exit Signs today.

  • Green Lettering
  • Dual Face
  • Configurable Arrows
  • Ceiling, Wall or Side Mounting
  • Damp Location
  • Sleek Brushed Aluminum Housing
  • 90 Minute Backup Run Time

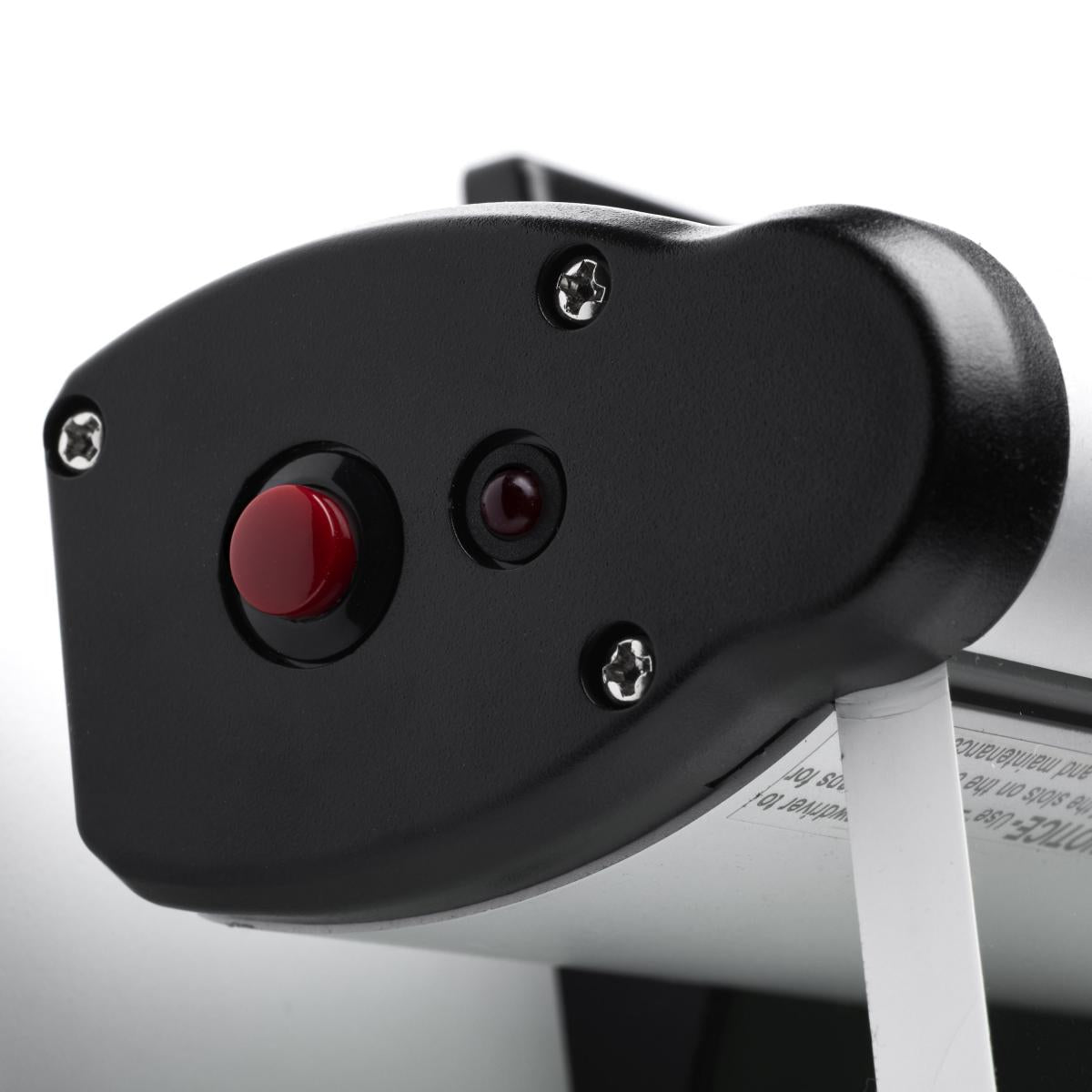

  • Test Switch and AC Supply Indicator
  • 2 Year Warranty
Fixture Type Exit Sign
Finish Silver
Wattage 2.94W
Indoor or Outdoor Fixture Indoor
Technology LED
Wattage 2.94W
Voltage 120V/277V
Operating Temperature +10C (+50F) to +40C (+104F)
Dimmable Non-Dimmable
Surge Protection Built-in surge protection - 3KV
Weight (lb.) 2.76
Material Aluminum
Height (in.) 9.69
Width (in.) 12.06
Length (in.) 1.81
Safety Listing ULus - Certified
Location Rating Damp
Energy Star No
DLC Approved No
CA T20 / T24 Rationale T20 Listed
California Prop 65
RoHS Compliant Yes
FCC Compliant Yes
Additional Information
Additional Information Input Wattage: 2.94W; Output Wattage: 0.4W; Energy Used in Maintenance Mode: 2.94W
Specification Note Aluminum, Acrylic Panel, 4.8V AA300mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Letter Height: 6 in.; Letter Stroke: 0.75 in.
Includes Mounting hardware and accessories
Warranty 2 Year Limited
Each UPC 045923675706
Each Quantity 1
Each Length (in.) 12.60
Each Width (in.) 8.46
Each Height (in.) 2.76
