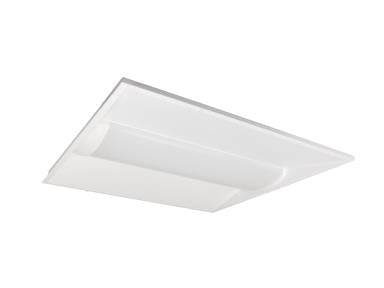

LED Arcmax 2X2 Troffer Wattage Selectable And Color Selectable 3500K, 4000K, 5000K

Part : MLVT22D13WCSCR

Price:
Sale price$71.05

Please contact us for quantity discount

Description

LED Arcmax 2X2 Troffer Wattage Selectable  And Color Selectable 3500K, 4000K, 5000K

pdf download

Product Description:
ArcMAX™ Lay-In LED troffers are the eye-pleasing and energy efficient
replacement for fluorescent troffers in new or remodel construction. CCT
and wattage selectable technology enables customers to choose the color
temperature and lumen output that is best suited for their lighting application.
The troffer’s high-performance optic system delivers beautifully even light
with excellent color rendering and low glare, while its architectural design
features make it the perfect complement to office, education, health care,
hospitality and retail interiors.
Features:
• Advanced “UniGlo” optics provides uniform brightness across the lens
• Fixed Wattage and Wattage Selectable Available
• Controls Ready – can be paired with the new cMax controls nodes
• CCT Selectable: 3500K, 4000K, 5000K
• Industry highest efficacy of 150 LPW
• On EM mode, the fixture output a minimum of 1050 lumens for 90
minutes, when fully charged
• 0-10V Dimming

Performance
Watts (W) 13/20/26
Voltage (V) 120-277
Delivered Lumens (lm) 2010, 3100, 4030
Efficacy (lm/W) 155
Color Rendering Index (CRI) ≥80
Color Temperature (K) 3500/4000/5000
Beam Angle 130
Power Factor 0.90
Min. Ambient Temp (°F) -4
Max. Ambient Temp (°F) 122
