Description

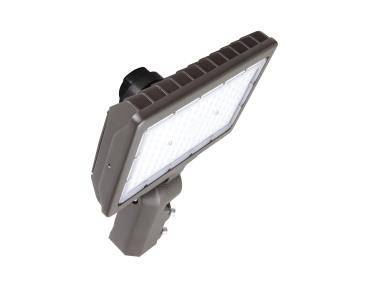

Maxlite 70 Watt Color Selectable (3000K/4000K/5000K) Slim LED Flood Light Fixture With Slipfitter Mount and Photocell
MSF70UW-CSBSKRPC
Maxlite 70 watt Slim LED Flood Light Fixture with slipfitter. Features an integral listed driver, potted within a separate compartment to ensure cool operation and longer life.
- Includes 3-pin NEMA photocell receptacle with shorting cap
- 120-277V
- Wide distribution NEMA 7x7 (H x V)
- 2KV surge protection
- Die cast aluminum housing with integrated heat sink to maximize performance and fixture life
- Polymer powder coat finish provides corrosion resistance
- UV resistant polycarbonate glass
- The 15.5"H listed includes the slipfitter mount
Performance:
Watts (W) 70
Voltage (V) 120-277
Delivered Lumens (lm) 9200
Efficacy (lm/W) 130
Color Rendering Index (CRI) ≥80
Color Temperature (K) 3000/4000/5000
Equivalent Wattage 175W MH/HPS
Beam Type Wide
Power Factor 0.90
Min. Ambient Temp (°F) -40
Max. Ambient Temp (°F) 10
Size 10.43inx4.92inx15.45
Product Weight (lbs.) 8.62
Product Height (Inches) 15.45
Product Length (Inches) 10.43
Product Width (Inches) 4.92
Listings
DesignLights Consortium® Premium
DLC# PLI3K3D9HAFC
Dimming Control
Dimming compatible Y
Dimming 0 TO 10V
