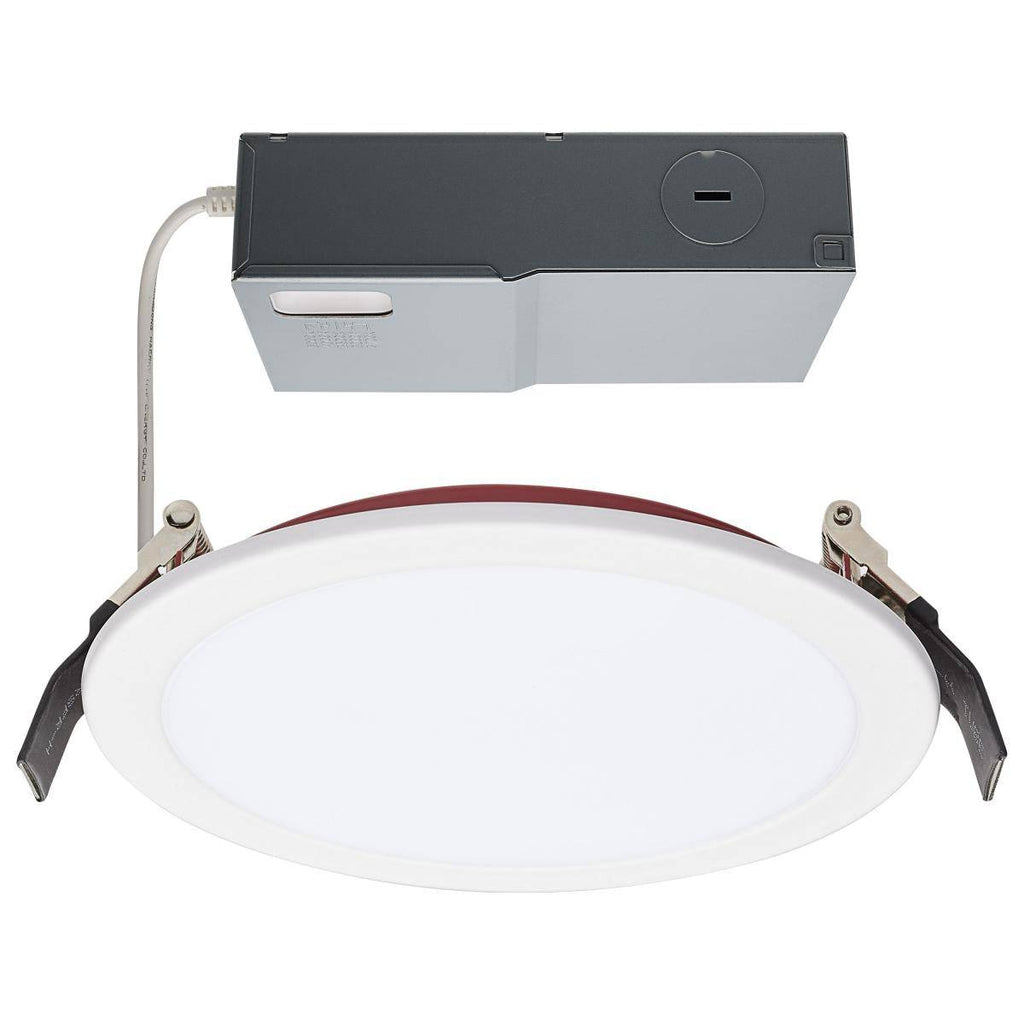

120-277V Fire Rated 6 Inch; Direct Wire Canless Downlight; Round Shape; White Finish; CCT Selectable

Part : S11869

Price:
Sale price$43.95

Please contact us for quantity discount

Description

120-277V Fire Rated 6 Inch; Direct Wire Canless Downlight; Round Shape; White Finish; CCT Selectable

pdf download

Wattage 13W
Voltage 120V-277V
Finish White / Red

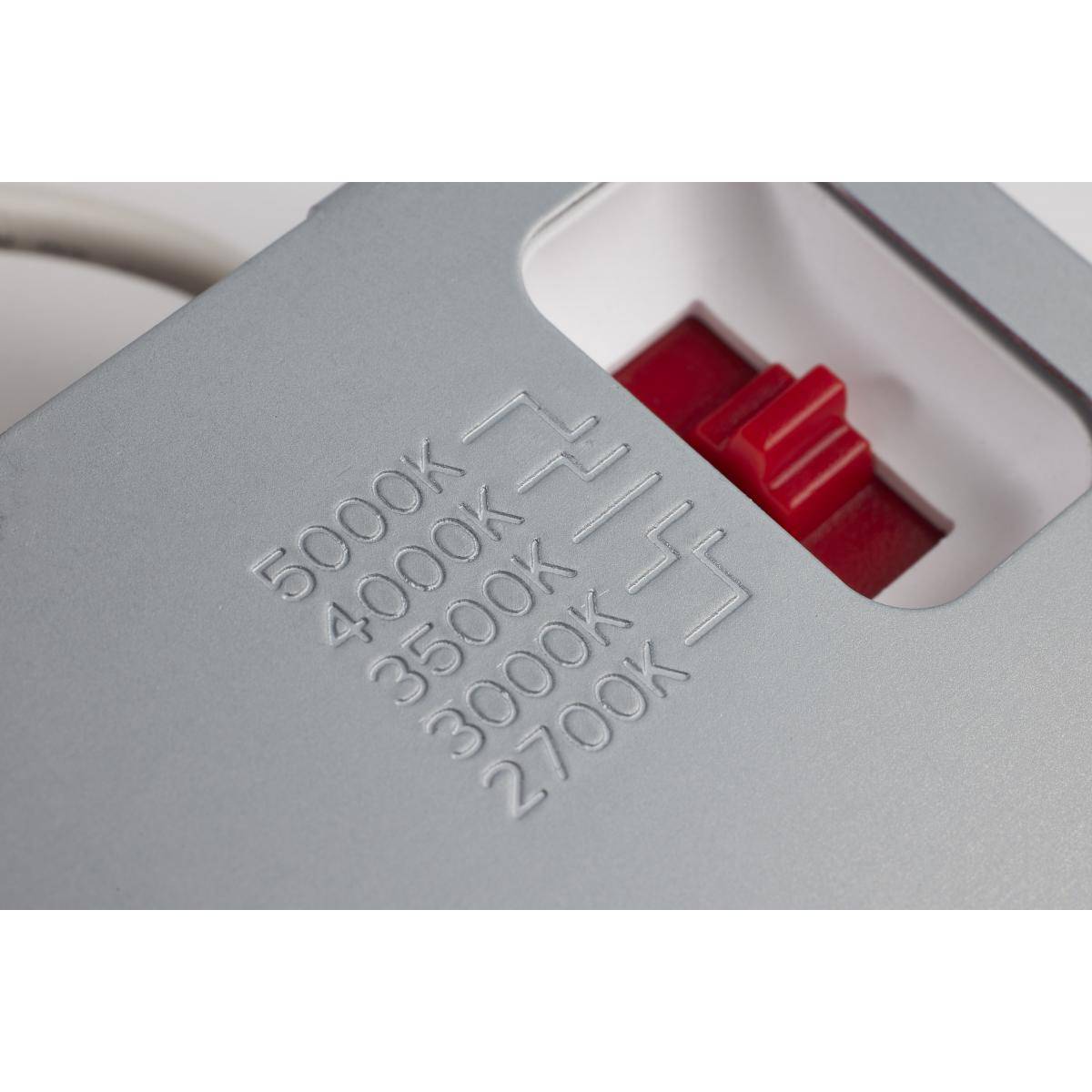

CCT (Kelvin) 2700K/3000K/3500K/4000K/5000K
Color Temperature Warm White to Natural Light
Lumen Output 1050L
Indoor or Outdoor Fixture Indoor
Specifications
Technology LED
Wattage 13W
Lumen Output 1050L
CCT (Kelvin) 2700K/3000K/3500K/4000K/5000K
Color Temperature Warm White to Natural Light
CRI 90
Voltage 120V-277V
Beam Angle 110
Rated Hours 50000
Operating Temperature -20C (-4F) to +40C (+104F)
Dimmable Yes-Dimmable
Dimming Note 0-10V Dimming
Sloped Ceiling No
Dimensions
Width (in.) 6.81
Height (in.) 0.69
Weight (lb.) 1.55
Compliance
Safety Listing cULus - Certified
Location Rating Wet
UL Application LED Recessed Luminaire
Energy Star Yes
ES Unique ID ESID-2473605
DLC Approved No
NSF Approved No
Air Tight Rated Yes
IC Rated Yes
CA T20 / T24 Rationale California T24 2016 - 2022 JA8 Listed
Title 20 / 24 Status California T24 Listed
California Prop 65
RoHS Compliant Yes
FCC Compliant Yes
SDS Sheet LED Lamp
Additional Information

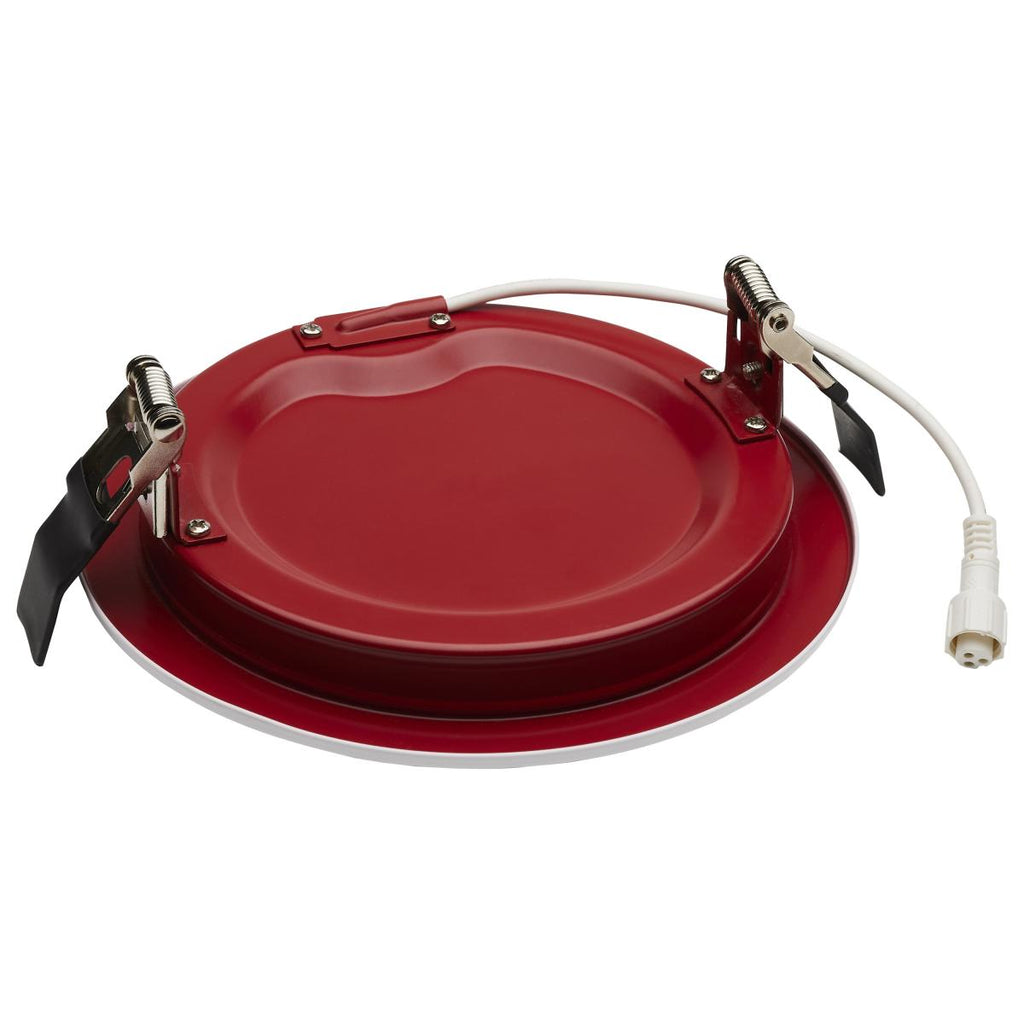

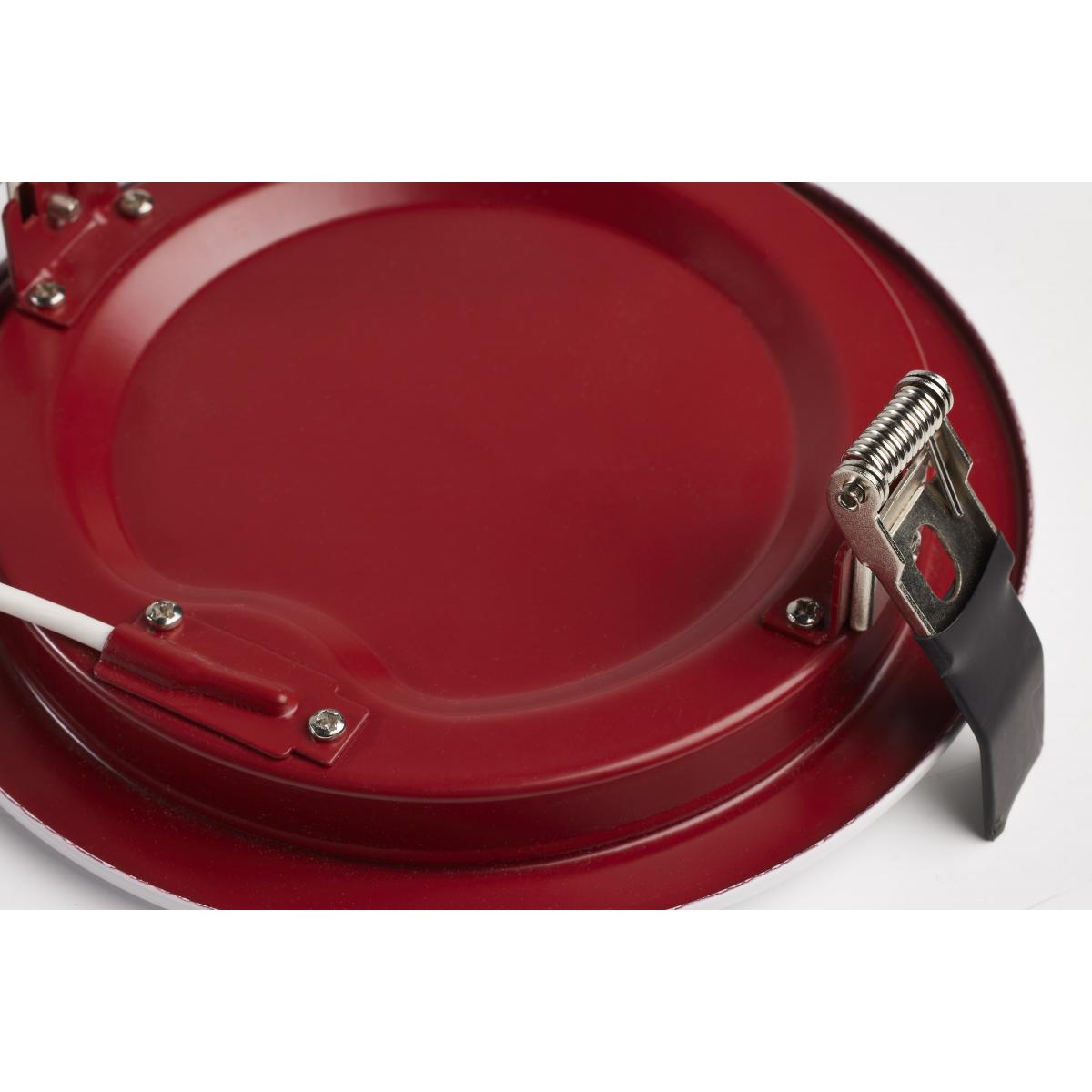

Additional Information 2HR Fire Rated: Tested to comply with UL 263/ASTM E119/CAN-ULC S101-07; White Trim/Red Backplate
Specification Note Driver Dimensions: 4.50" x 3.00" x 1.25"
Warranty 5 Year Limited - Fixtures
Packaging
Each UPC 045923118692
Each Quantity 1
Each Length (in.) 7.87
Each Width (in.) 2.68
Each Height (in.) 6.93
