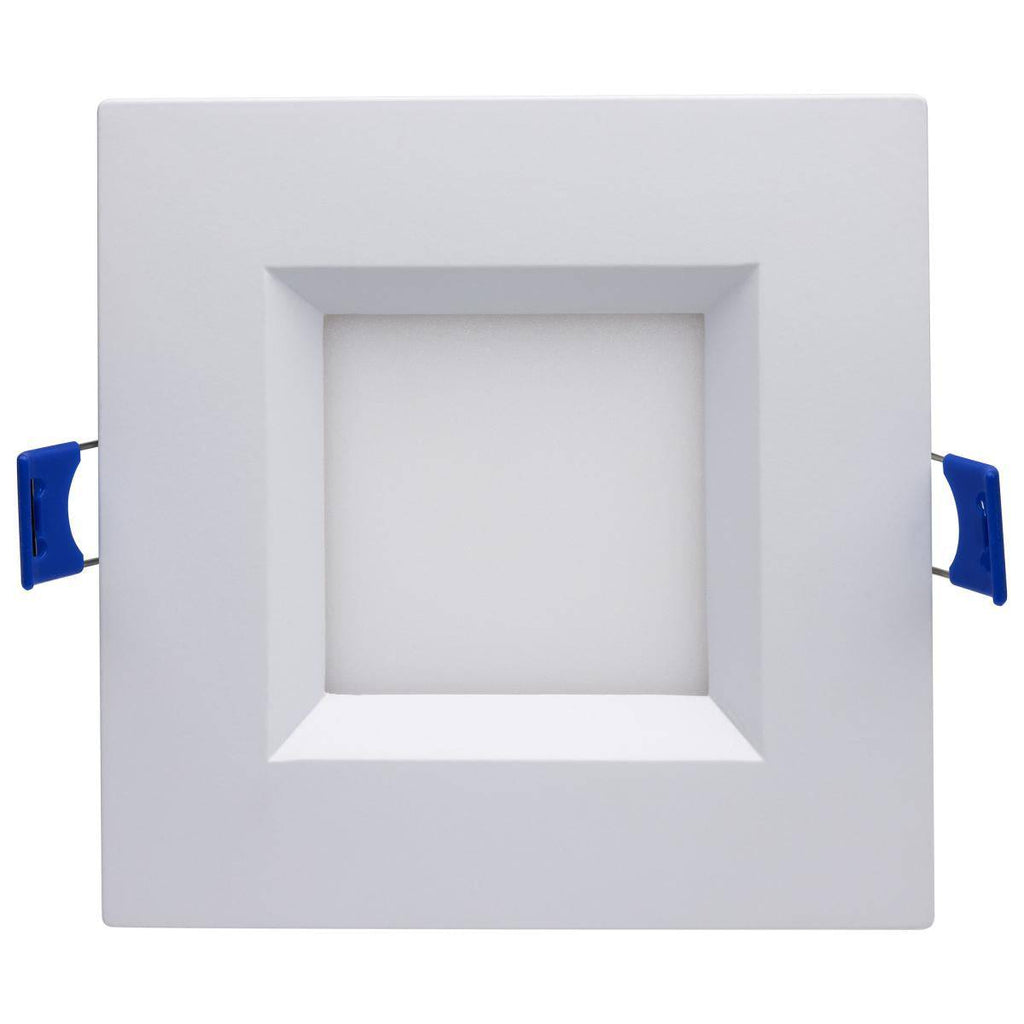

12 Watt LED Low Profile Downlight; 4 Inch; CCT Selectable; Square Shape

Part : S11871

Price:
Sale price$20.95

Please contact us for quantity discount

Description

12 Watt LED Low Profile Regress Baffle Downlight; 4 Inch; Remote Driver; CCT Selectable; Square Shape; White Finish; 120 Volt

pdf download

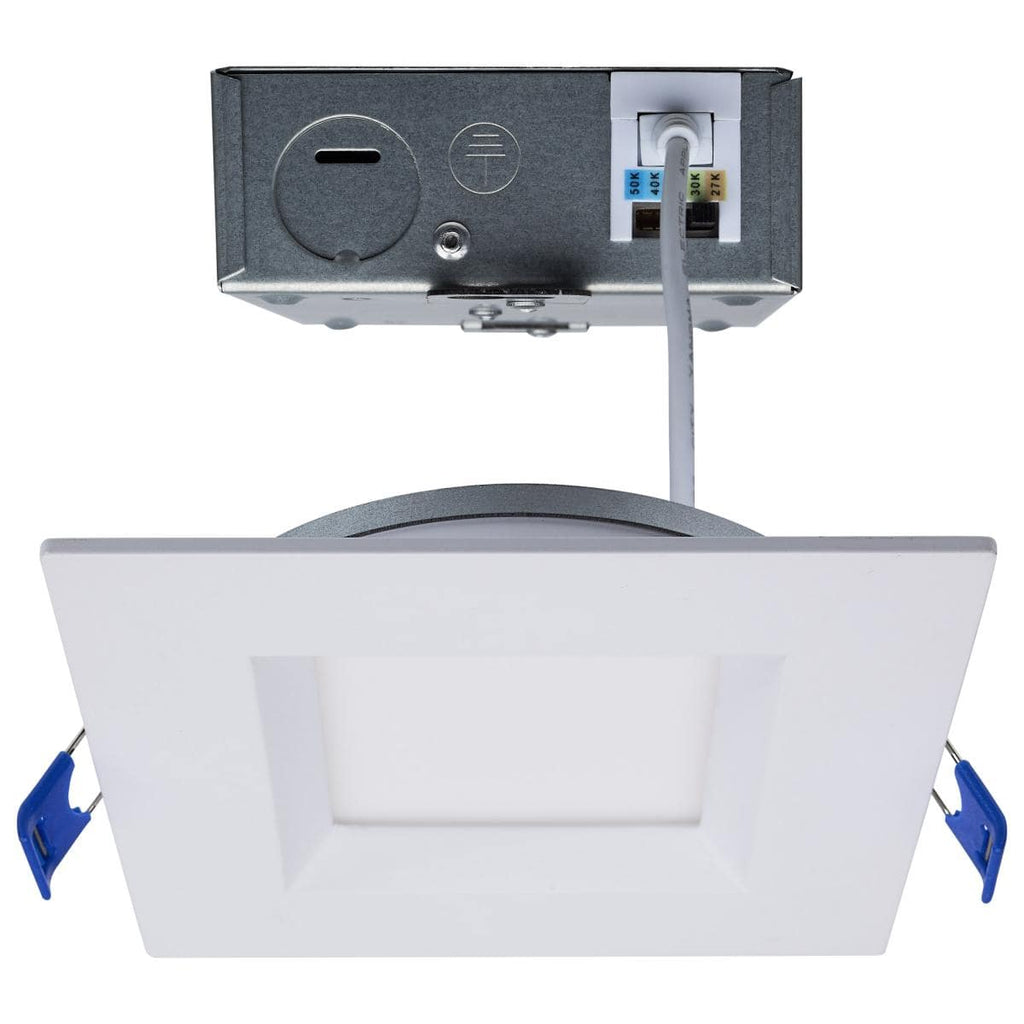

SATCO's LED Low Profile Regress Baffle Downlights have a reflector that provides low glare and comfortable uniform optical distribution. These fixtures feature a strong low-profile design, white aluminum trim, a polycarbonate lens, and a 5-CCT selectable switch in both round and square designs. At installation choose from 2700K, 3000K, 3500K, 4000K, or 5000K to set your ideal color temperature environment. These fixtures come with a remote driver J-box for direct installation and are IC rated, wet location rated, and Title 24 compliant. Ideal for numerous indoor residential, commercial, and multi-family applications such as bathrooms, kitchens, hallways, basements; anywhere light is needed, and space is at a premium.

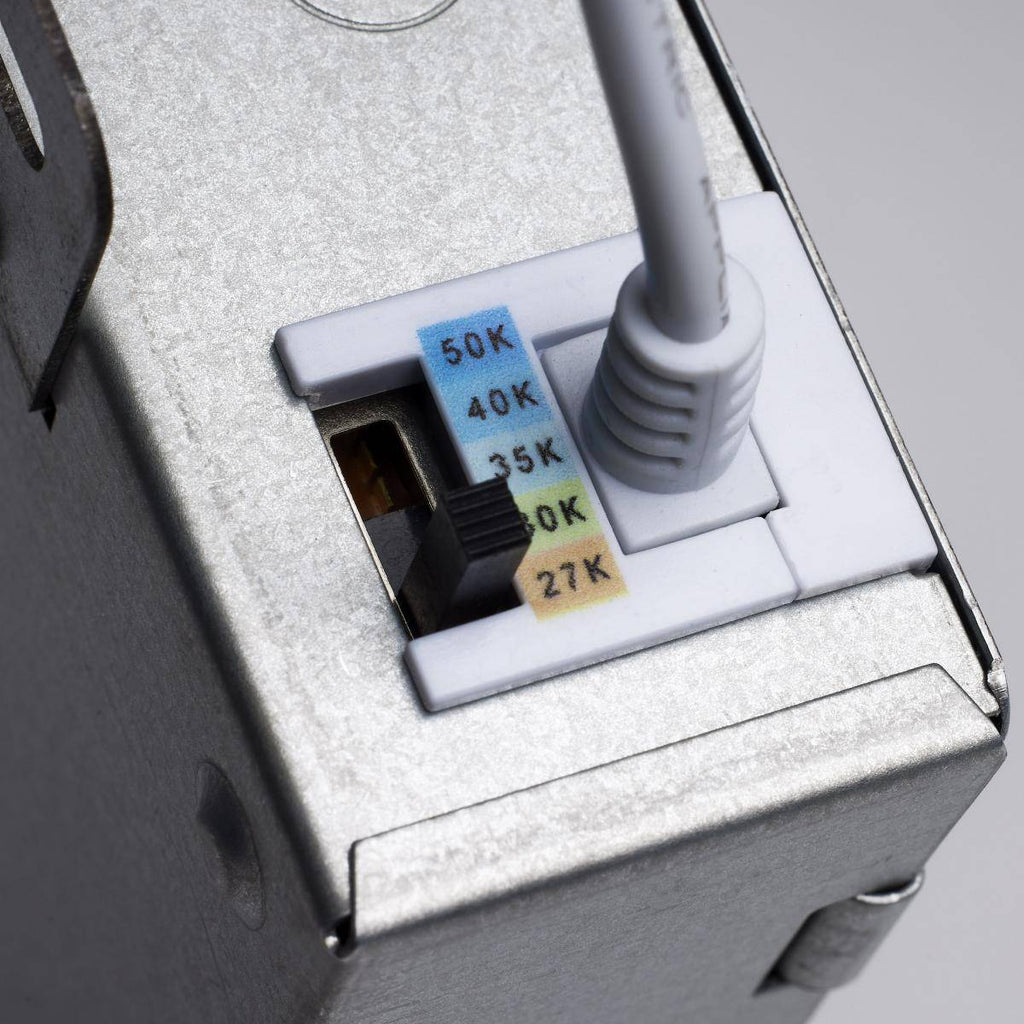

  • 5 CCT selectable Switch
  • 90 CRI
  • Dimmable
  • 120V
  • Wet Rated
  • 50,000 Hours
  • Energy Star Certified - Pending
  • 5 Year Warranty
General
Status Active
Wattage 12W
Voltage 120V
Finish White
CCT (Kelvin) 2700K/3000K/3500K/4000K/5000K
Color Temperature Warm White to Natural Light
Lumen Output 750L
Indoor or Outdoor Fixture Indoor
Specifications
Technology LED
Wattage 12W
Lumen Output 750L
CCT (Kelvin) 2700K/3000K/3500K/4000K/5000K
Color Temperature Warm White to Natural Light
CRI 90
Voltage 120V
Beam Angle 110
Rated Hours 50000
Operating Temperature -20C (-4F) to +40C (+104F)
Dimmable Yes-Dimmable
Dimensions
Length (in.) 5.06
Width (in.) 5.06
Height (in.) 1.29
Weight (lb.) 1.03
Compliance
Safety Listing cETLus
Location Rating Wet
Energy Star Yes
ES Unique ID ESID-2408268
DLC Approved No
Air Tight Rated Yes
IC Rated Yes
CA T20 / T24 Rationale California T24 2016 - 2022 JA8 Listed
California Status Lawful for sale in California
Title 20 / 24 Status California T24 Listed
California Prop 65
RoHS Compliant Yes
FCC Compliant Yes
SDS Sheet LED Lamp
Additional Information
Installation Notes Driver Dimensions: 4.27 x 3.62 x 1.44
Warranty 5 Year Limited - Fixtures
Packaging
Each UPC 045923118715
Each Quantity 1
Each Length (in.) 6.10
Each Width (in.) 3.54
Each Height (in.) 5.31
Each Weight (lb.) 1.16
