Description

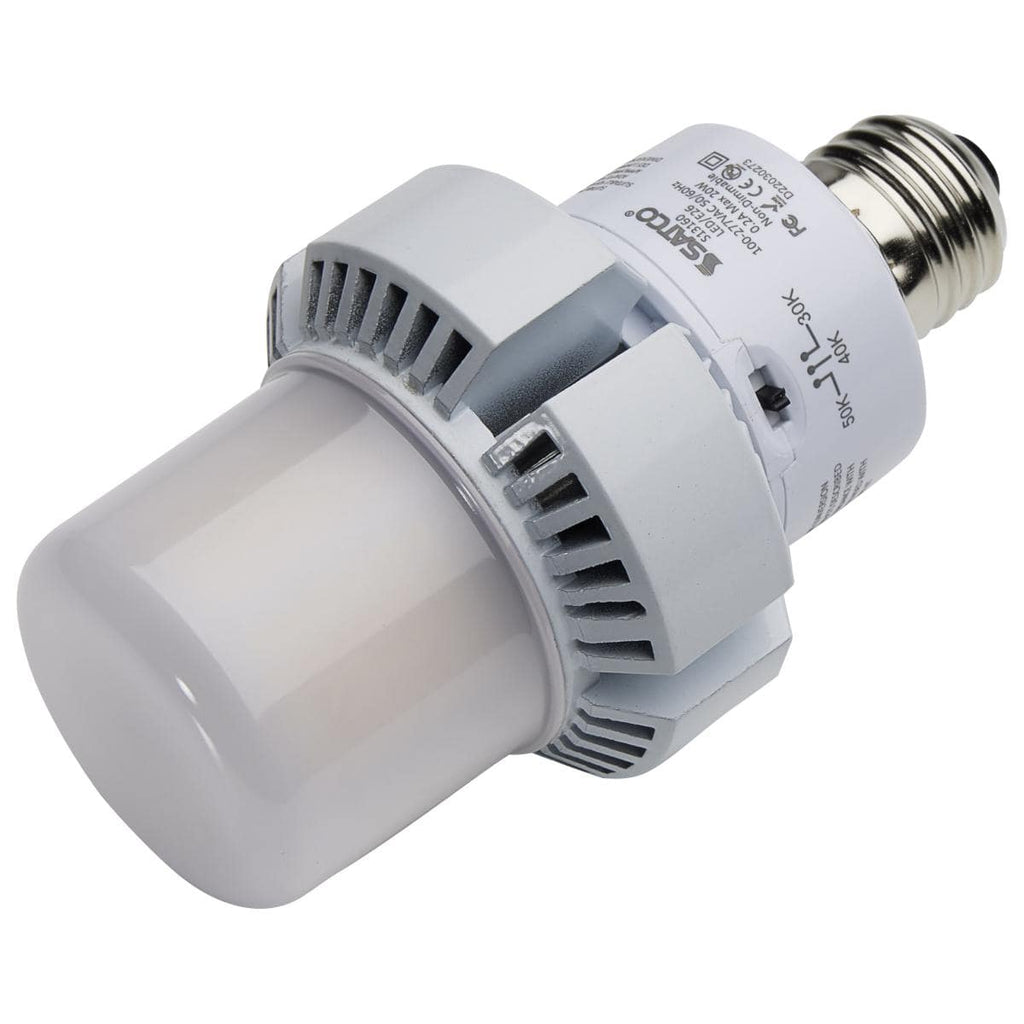

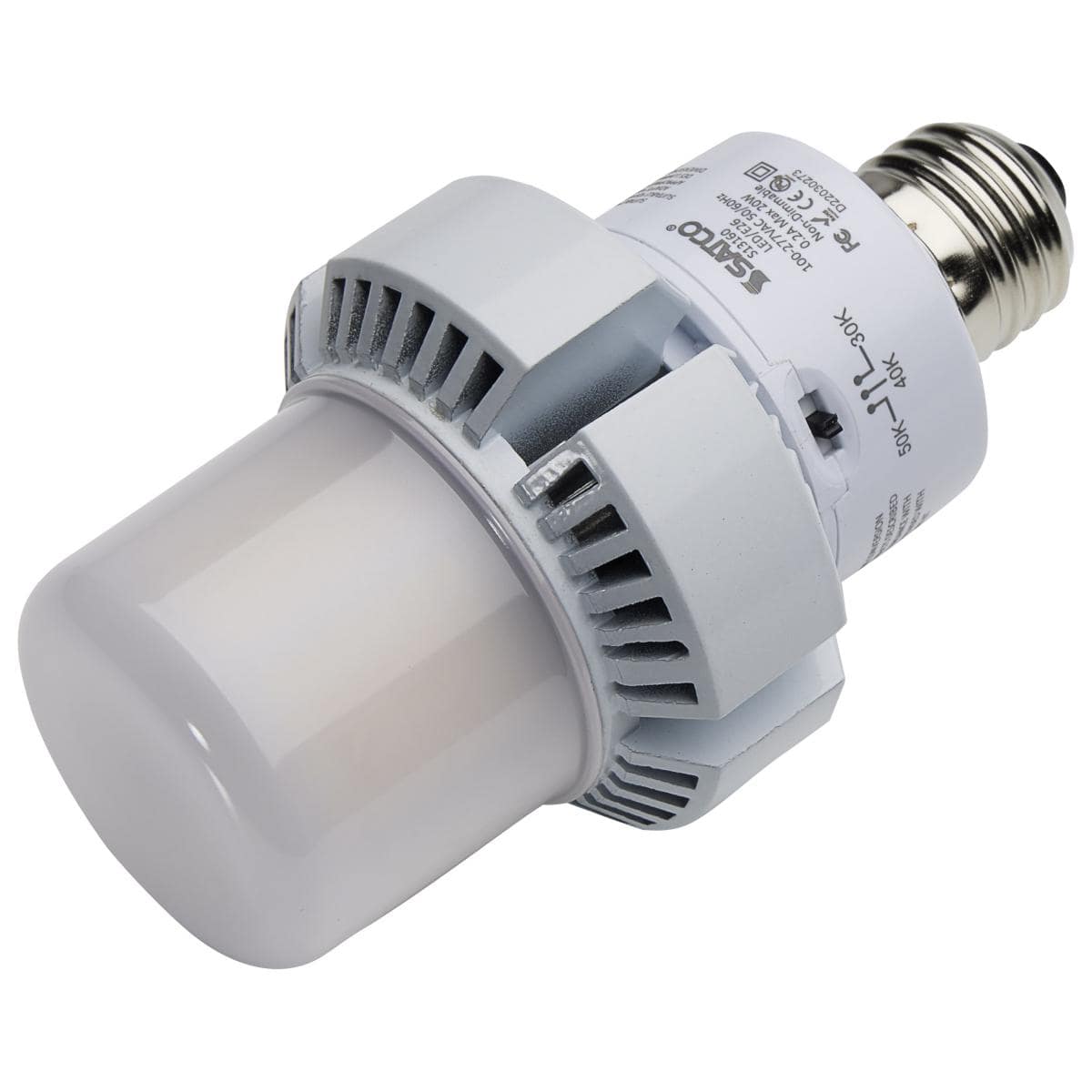

20 Watt; A-Plus 23; LED; CCT Selectable 3K/4K/5K; Medium base; Type B; Ballast Bypass; 100-277 Volt;
Satco's newest additions to the Hi-Pro LED family provides up to 85% in energy savings, and advanced features. CCT and wattage selectable capability means more versatility and custom-tailored light for specific applications. Designed to produce high-output light with over 300 degrees of illumination, these lamps are perfect for commercial bollard fixtures, post-top lighting and high ceiling applications, to name a few. A smaller jacket size and base up, down or horizontal use makes this our most versatile A-lamp to date.
- Advanced heat sink design ensures long lifespan, less maintenance

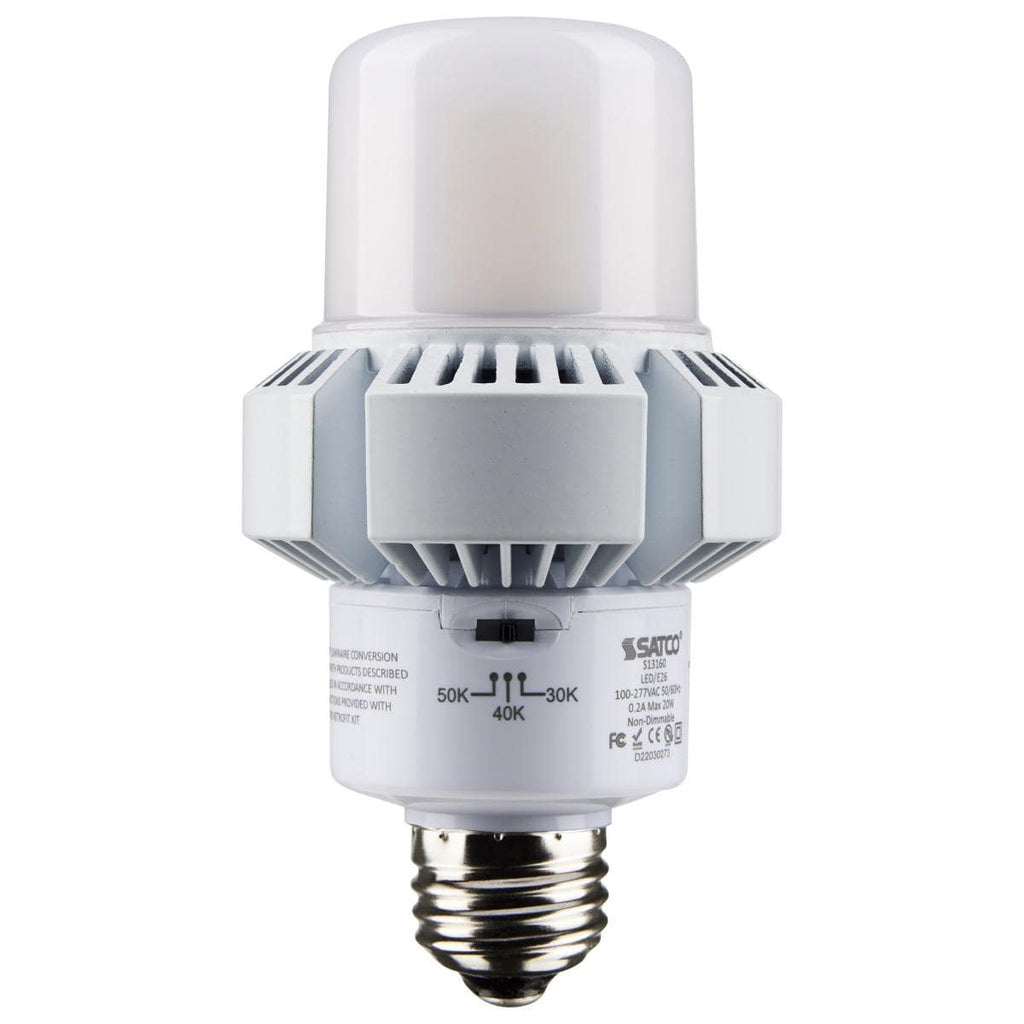

- ColorQuick technology - Integrated switch allows for 3000K, 4000K and 5000K CCT Selections
- Damp location rated for indoor or outdoor use
- Rated for totally enclosed fixtures
- Reduced jacket size and built-in surge protection
- FCC/RoHS compliant
- Superior 80 CRI light quality
General
| Status | Active |
| Watts | 20W |
| Incandescent Equivalent | 150W |
| Fluorescent Equivalent | 55W |
| HID Equivalent | 70W-100W |
| Volts | 100V-277V |
| Shape | AP23 |
| Base | Medium |
| ANSI Base | E26 |
| Finish | White |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Temperature | Warm to Cool White |
| CRI | 80 |
| Lumens | 2400L/2700L/2600L |
| Beam Spread | 280 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Product Category | Type A |
| Lamp Type | Type A |
| Technology | LED |
| Min Compartment Size | Length: 6 in. Width: 6 in. Height: 8.5 in. |
| Ballasting Requirements | Ballast Bypass |
Electrical
| Watts | 20W |
| Incandescent Equivalent | 150W |
| Fluorescent Equivalent | 55W |
| HID Equivalent | 70W-100W |
| Volts | 100V-277V |
| Ballasting Requirements | Ballast Bypass |
| Operating Frequency | 50/60Hz |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Temperature | Warm to Cool White |
| CRI | 80 |
| Lumens | 2400L/2700L/2600L |
| Beam Spread | 280 |
| Dimmable | Non-Dimmable |
| Power Factor | >0.9 |
| Hours Rated | 50000 |
| Operating Position | Universal |
| Surge Protection | Built-in surge protection - 1KV |
| Operating Temperature | -22C (-30F) to +45C (+113F) |
Physical
| MOL | 5.12 |
| MOD | 2.83 |
| Shape | AP23 |
| Base | Medium |
