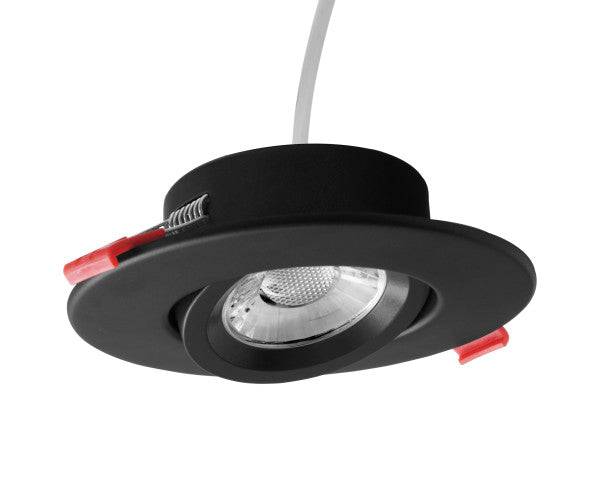

4-inch Black Selectable Canless Adjustable Gimbal LED Recessed Downlight

Part : DGC43120SRDBK

Price:
Sale price$36.00

Please contact us for quantity discount

Description

4-inch Black Selectable Canless Adjustable Gimbal LED Recessed Downlight



Features
  • Includes Selectable LED downlight, plenum-rated cable, and off-board driver
  • Installs directly into the ceiling; no housing or junction box required
  • Adjustable directional lighting at 25° tilt and 360° rotation
  • Produces over 715 Lumens at 9-Watts (65W Equivalent)
  • Dimmable to less than 5% using standard TRIAC LED Dimmers
  • Precision optics provide smooth, uniform lighting at a narrow 33° beam angle
  • Insulation Contact rated, Damp-Location rated, Airtight (ASTM E283), FCC compliant, and RoHS compliant
  • Lifetime rated for over 54,000 hours of use
  • Protected by NICOR's 5-Year limited warranty

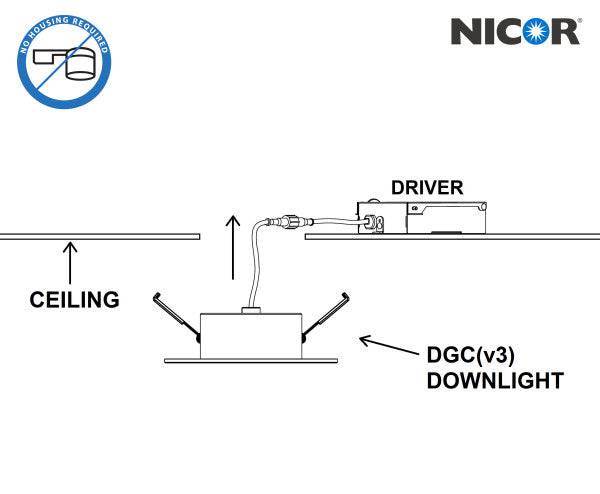

The NICOR DGC4(v3) 4-inch gimbal LED downlight is the ideal LED remodel downlight for directional lighting. It is fully adjustable and features 360° rotation, 25° tilt and a narrow 33° beam angle to highlight architectural or artistic elements in your home. The DGC4 features 5 built-in color temperatures to choose from, ranging from soft white to daylight (2700K - 5000K). Easily switch between color temperatures using the switch located on the included junction box. The high-performance DGC4 is fully dimmable and features an incredible 97 CRI rating (color rendering index) with an R9 value over 70. This means that your reds will be brighter, and your blues will be truer. Installation is simple-a recessed housing or junction box is not required. Instead, the DGC4 installs directly into the ceiling using the 3.75-inch template provided. The adjustable spring-loaded retention tabs ensure a secure fit directly to the ceiling. This all-in-one kit includes everything you need to install custom directional lighting anywhere in your home. Available in Black, Oil-Rubbed Bronze, and White. Protected by NICOR’s 5-Year Limited Warranty.

SPECS

Size (in.)
4
Product Color
Black
Finish
Matte
Light Source
LED
Wattage
8.9 (2700K)
8.8 (3000K)
8.7 (3500K)
8.7 (4000K)
8.8 (5000K)
Wattage Equivalent
65
Voltage
120VAC
Lumen Output
715 (2700K)
763 (3000K)
805 (3500K)
840 (4000K)
845 (5000K)
Lumens Per Watt
81.4 (2700K)
87.1 (3000K)
92.7 (3500K)
96.7 (4000K)
96.5 (5000K)
Color Temperature (CCT)
2700K
3000K
3500K
4000K
5000K
CRI
97
R9 Value
>70
Dimmable?
Yes
Dimming Type
TRIAC
Operating Temperature
0°F to 120°F (-18°C to 49°C)
Listings/Certifications
ETL Intertek Listed
UL 1598 Listed
cUL 1598 Listed
Damp-Location
IC-Rated
RoHS Compliant
FCC Class B
Airtight
ASTM 283 Compliant
Other Certifications
LM-79, LM-80 testing performed in accordance with IESNA standards
COB maintains 4-step MacAdams with duv <±0.003
Meets or exceeds ASTM-283 Air-Tight Requirements
Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
