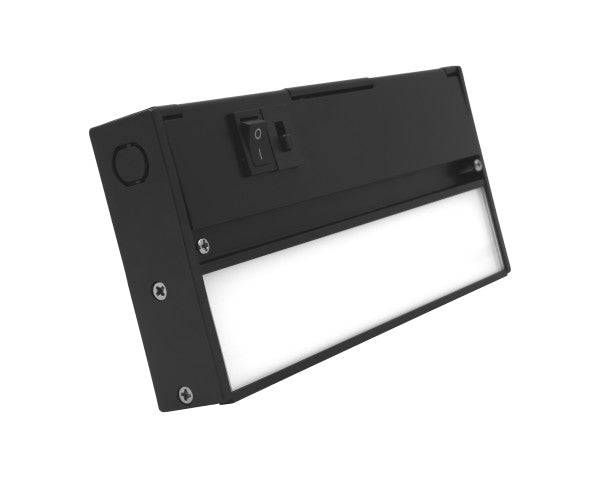

8-inch Black Selectable LED Under Cabinet Light

Part: NUC508SBK

Product Description

Features

Selectable color temperature (2700K, 3000K, 4000K)

Full range dimming using standard LED dimmers

Ready to install directly out of the box. No other parts required

Requires hardwire installation with standard residential voltage (120V)

Easy access to wiring for linking fixtures together end-to-end

ATTRIBUTES

Model Number

NUC508SBK

Product Title

NUC-5 Series 8-inch Black Selectable LED Under Cabinet Light

UPC

767706161779

NICOR’s fifth generation LED Undercabinet light features the latest in LED technology. The NUC Series Selectable LED Undercabinet allows you to change the color temperature of the light to 2700K, 3000K, and 4000K. The selectable color temperature switch is located next to the on/off rocker switch for easy access. This fixture is designed for easy hardwire installation that can be done through various knockout ports. This allows you to control the undercabinet lights from a wall switch or dimmer for full range dimming. The 1-inch low profile design keeps the fixture out of sight to provide pure ambient light without heat or harmful UV light. This Selectable LED Undercabinet is available in Black, Nickel, Oil-Rubbed Bronze, and White in sizes ranging from 8-inches to 40-inches. It features a projected lifespan of over 100,000 hours and is protected by NICOR’s 5-year limited warranty.

SPECS

Size (in.)

Product Color

Black

Finish

Powder Coat

Light Source

LED

Wattage

3.36

Wattage Equivalent

Voltage

120VAC

Lumen Output

247 (2700K)

276 (3000K)

289 (4000K)

Lumens Per Watt

68.1 (2700K)

76.2 (3000K)

79.7 (4000K)

Color Temperature (CCT)

2700K

3000K

4000K

CRI

R9 Value

>50

Dimmable?

Yes

Dimming Type

TRIAC

Operating Temperature

0°F to 120°F (-18°C – 49°C)

Listings/Certifications

UL Listed

cUL Listed

Energy Star

Title 24

FCC Class B

Damp-Location
