Description

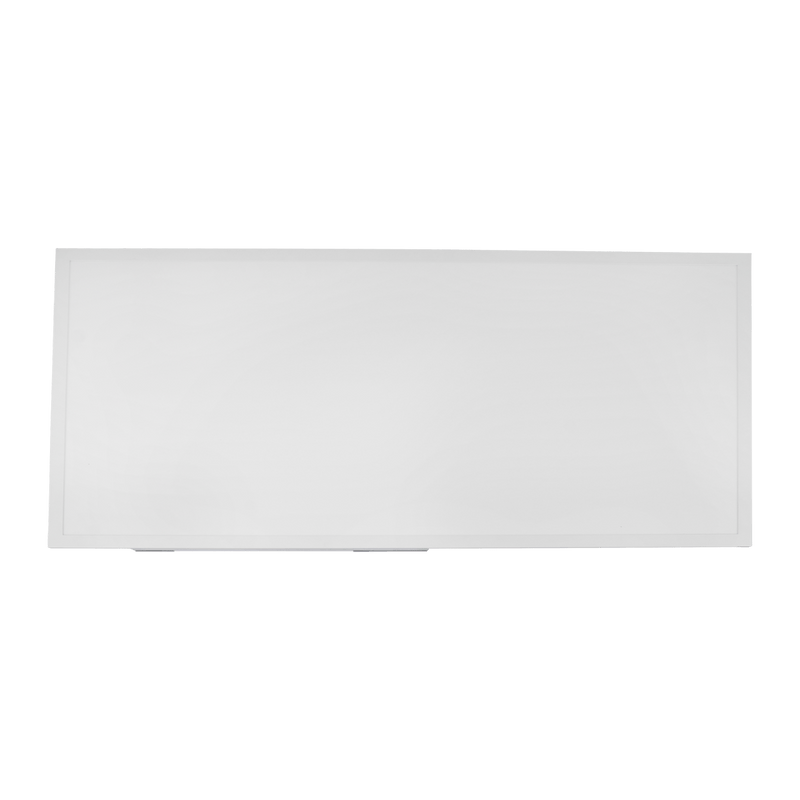

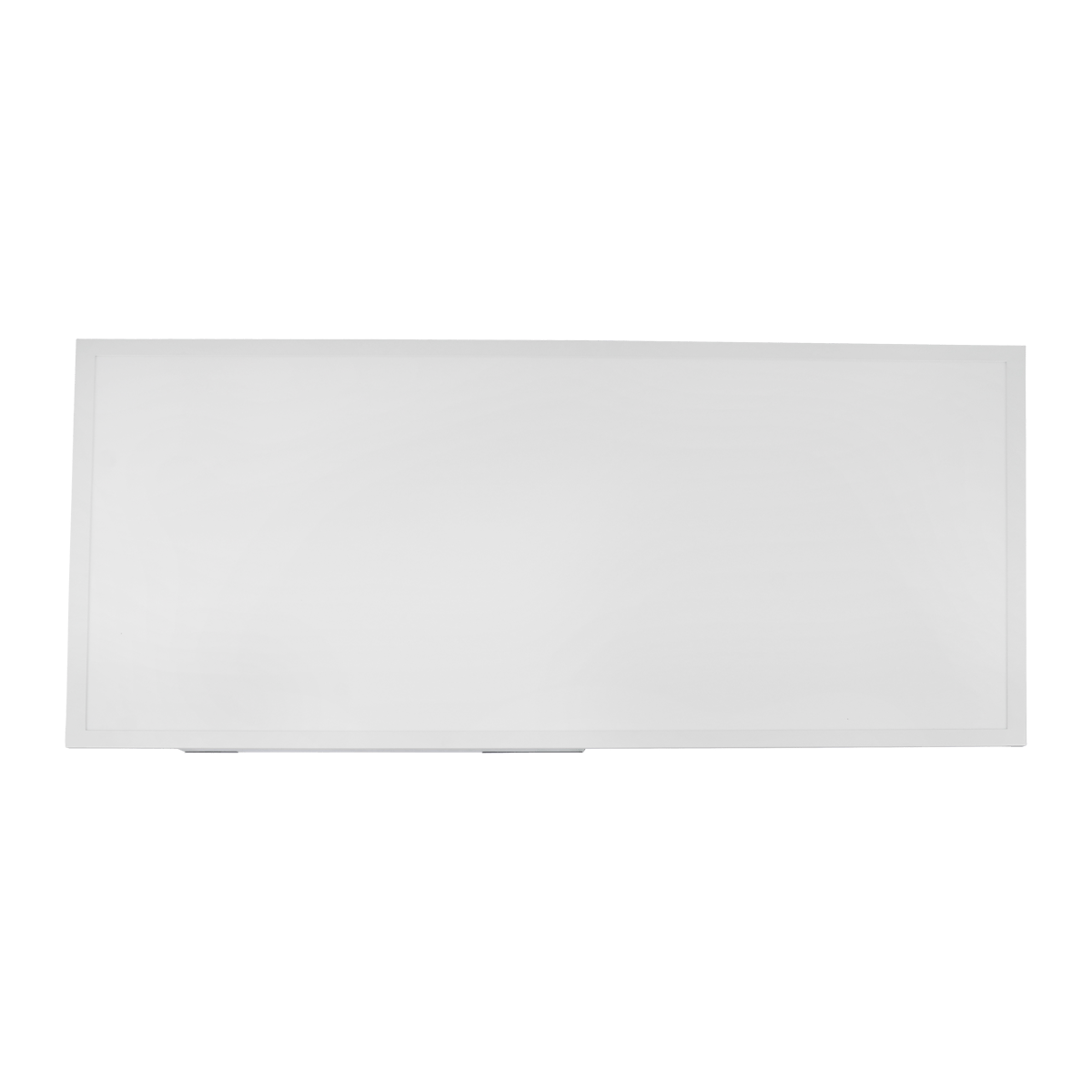

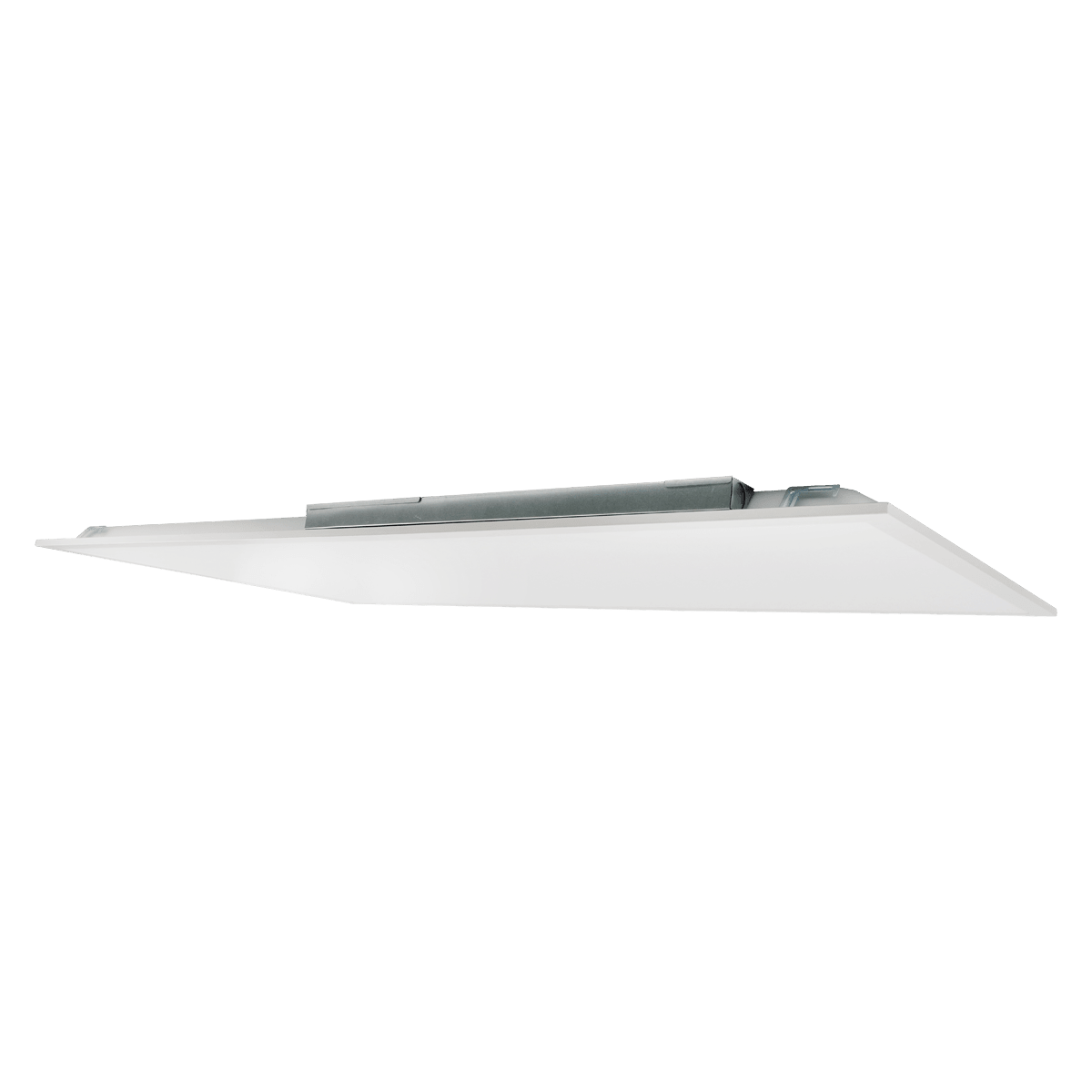

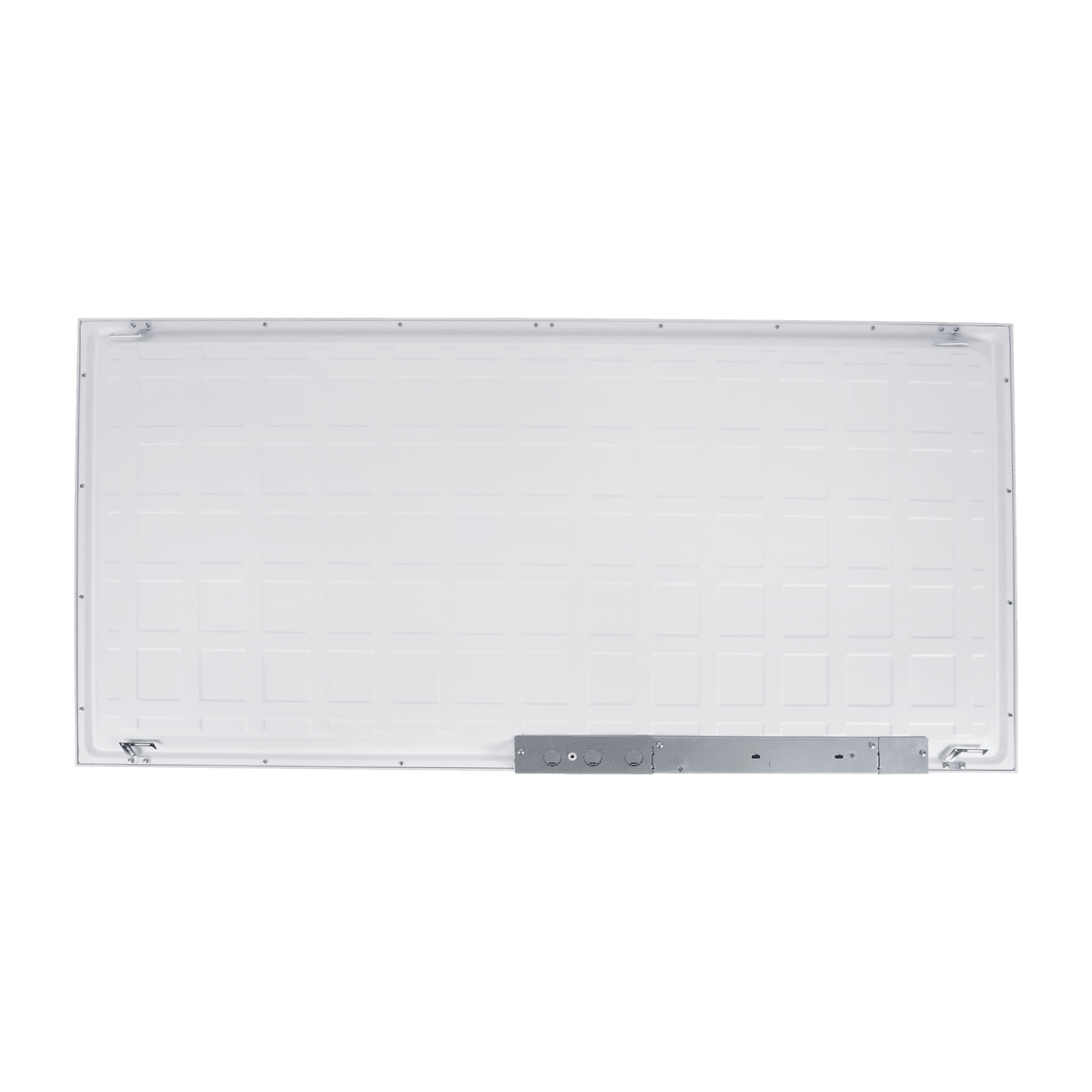

Backlit Panel, 2x4, PowerSet 50/40/30W, FieldCCeT 3500/4000/5000K, 120-277V, 0-10V Dimming
| Product Specifications | |
|---|---|
| Voltage | 120-277VAC |
| Lumens (lm) | 5,500/4,400/3,300 lm |
| Wattage | 50/40/30W |
| Efficacy (lm/W) | 110 lm/W |
| CCT | 3500/4000/5000 |
| CRI | 80+ |
| Dimming | 0-10/PWM/Resistance |
| Nominal Size | 2x4 |
| Replacement For/Equivalent | 4 x 32W 4ft T8 |
| DLC Version | DLC Standard |
| T20 Status | Exempt |
| IP Rating | IP20 |
| Wet/Damp/Dry Location | Damp |
| Dimensions (L x W x H) | L: 47 3/4" (1212 mm), W: 23 3/4" (603 mm), H: 1 9/16" (40 mm) |
| Housing Color | White |
| Lens Material | Acrylic (PMMA) |
| Operating Temp Range (°F/°C) | -4F to 113F (-20C to 45C) |
| Driver Surge Protection (kV) | L/N-PE: 2kV, L-N: 1kV |
| Auxiliary Output | No |
| Brand | EiKO |
