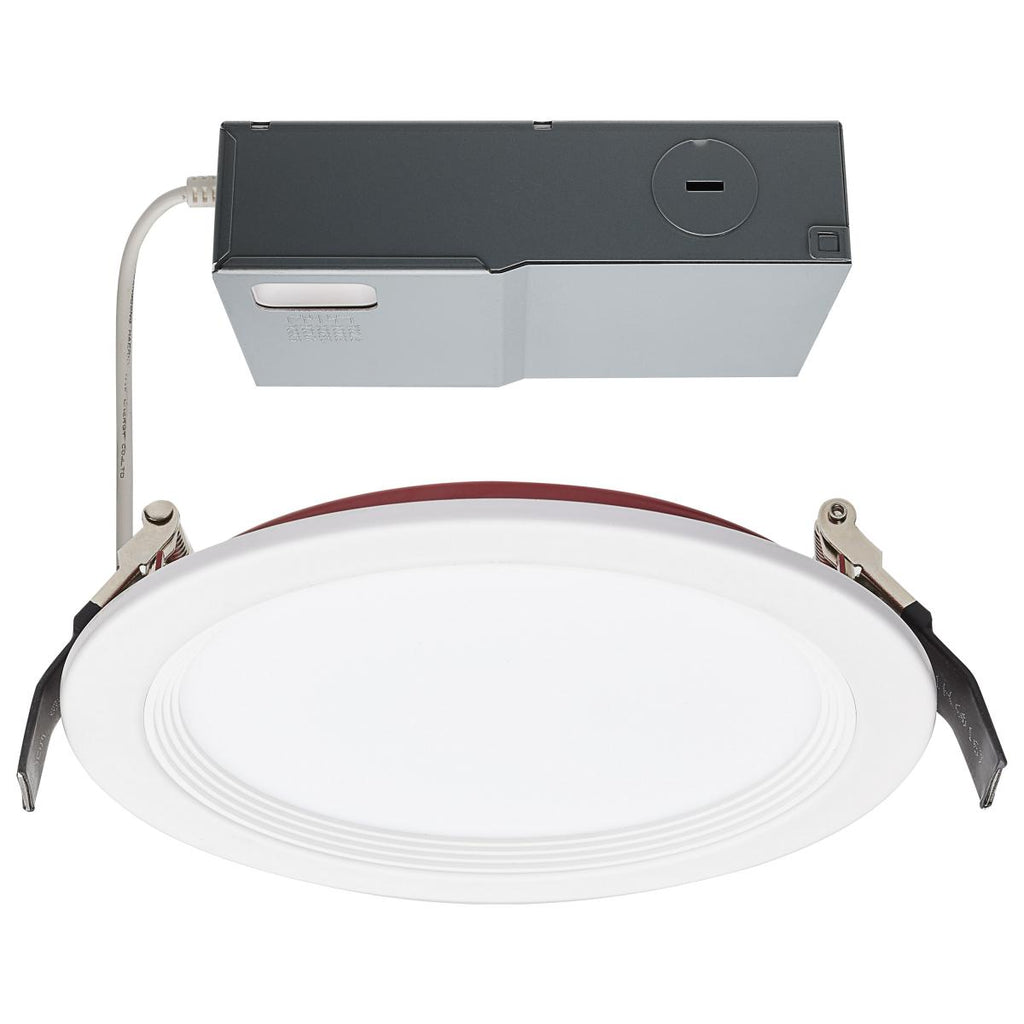

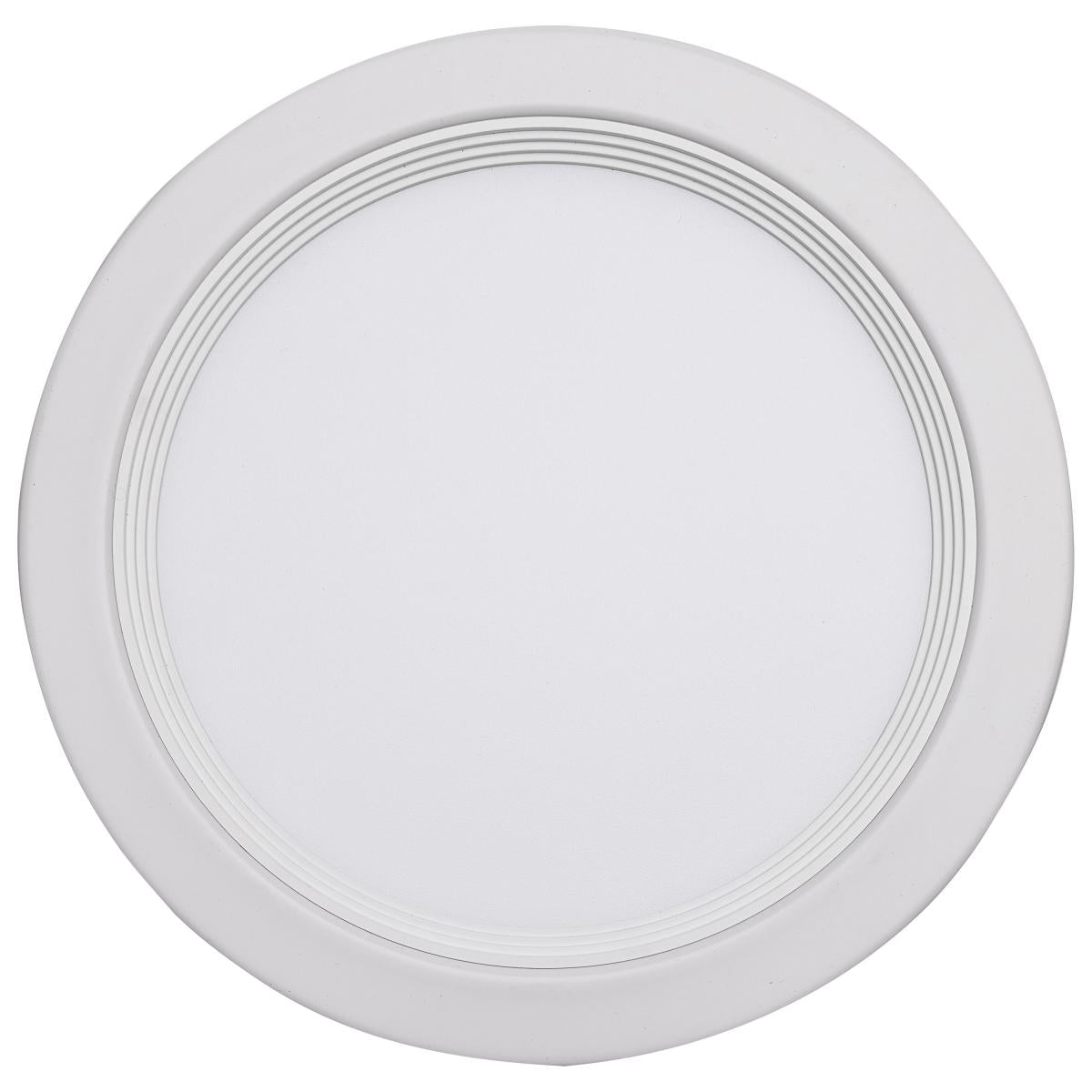

Fire Rated 6 Inch Direct Wire Downlight; Round Shape; White Finish; CCT Selectable

Part : S11867

Price:
Sale price$40.95

Please contact us for quantity discount

Description

Fire Rated 6 Inch Direct Wire Downlight; Round Shape; White Finish; CCT Selectable

pdf download

SATCO|NUVO's Fire Rated Downlights are the perfect solution for installations with low ceiling clearance. Designed to provide exceptional illumination, these downlights provide two hours of protection in the event of a fire. Increase safety and peace of mind in residential, multi-family, and commercial applications.

  • Fire rated up to 2-hours

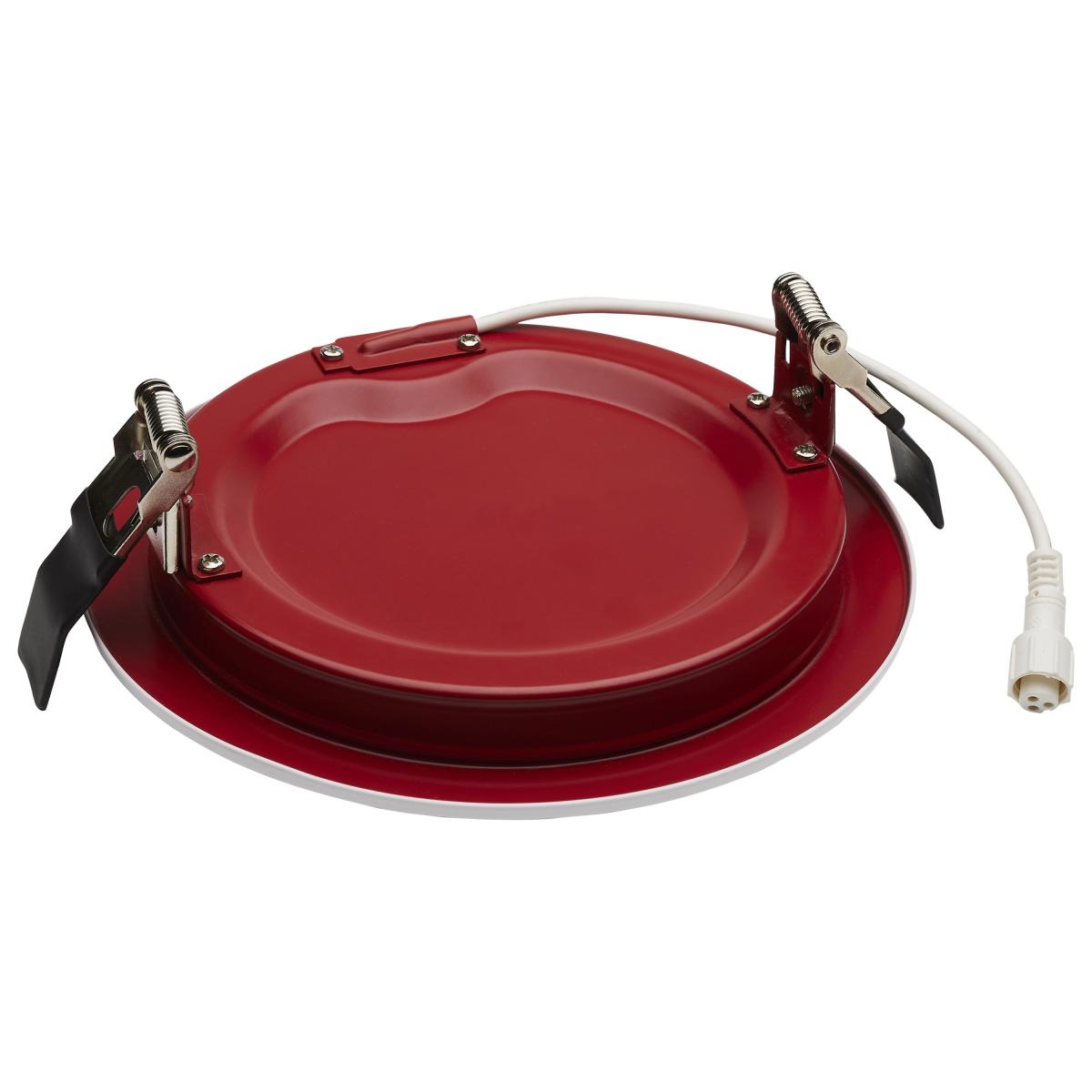

  • Red painted backplate for easy identification
  • 5 CCT Selectable
  • 90 CRI
  • Wet location rated
  • Dimmable
  • IC Rated
  • AT Rated



Wattage 13W
Voltage 120V
Finish White and Red
CCT (Kelvin) 2700K/3000K/3500K/4000K/5000K
Color Temperature Warm White to Natural Light
Lumen Output 1050L
Indoor or Outdoor Fixture Indoor
Specifications
Technology LED
Wattage 13W
Lumen Output 1050L
CCT (Kelvin) 2700K/3000K/3500K/4000K/5000K
Color Temperature Warm White to Natural Light
CRI 90
Voltage 120V
Beam Angle 110
Rated Hours 50000
Operating Temperature -20C (-4F) to +40C (+104F)
Dimmable Yes-Dimmable
Sloped Ceiling No
Dimensions
Width (in.) 6.81
Height (in.) 0.69
Weight (lb.) 1.39
Compliance
Safety Listing cULus - Certified
Location Rating Wet
UL Application LED Recessed Luminaire
Energy Star Yes
ES Unique ID ESID-2473603
DLC Approved No
NSF Approved No
Air Tight Rated Yes
IC Rated Yes
CA T20 / T24 Rationale California T24 2016 - 2022 JA8 Listed
Title 20 / 24 Status California T24 Listed
California Prop 65
RoHS Compliant Yes
FCC Compliant Yes
SDS Sheet LED Lamp
Additional Information
Additional Information 2-Hour Fire Rated; White Trim/Red Backplate

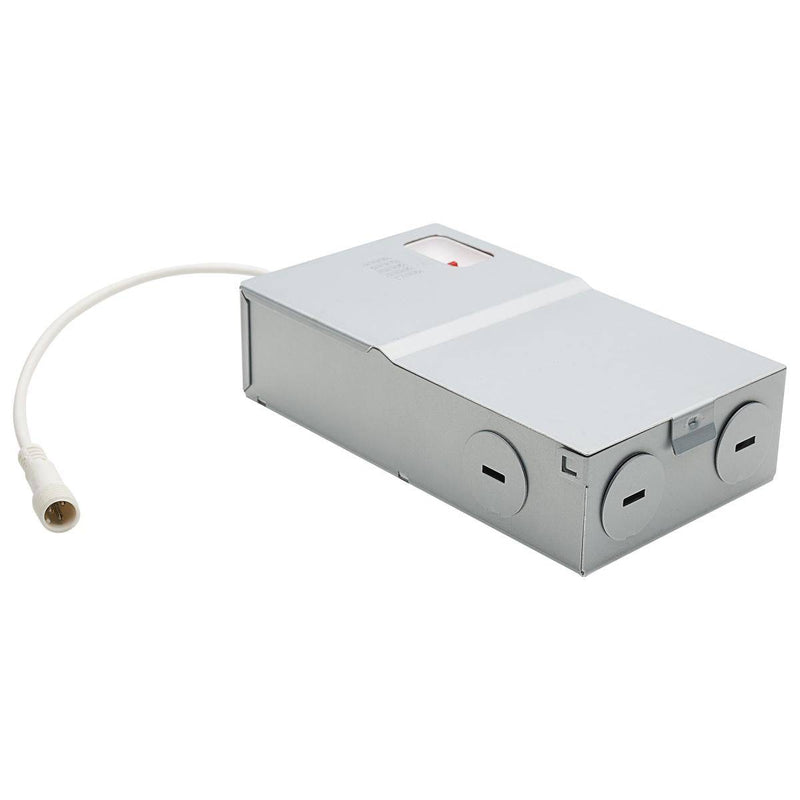

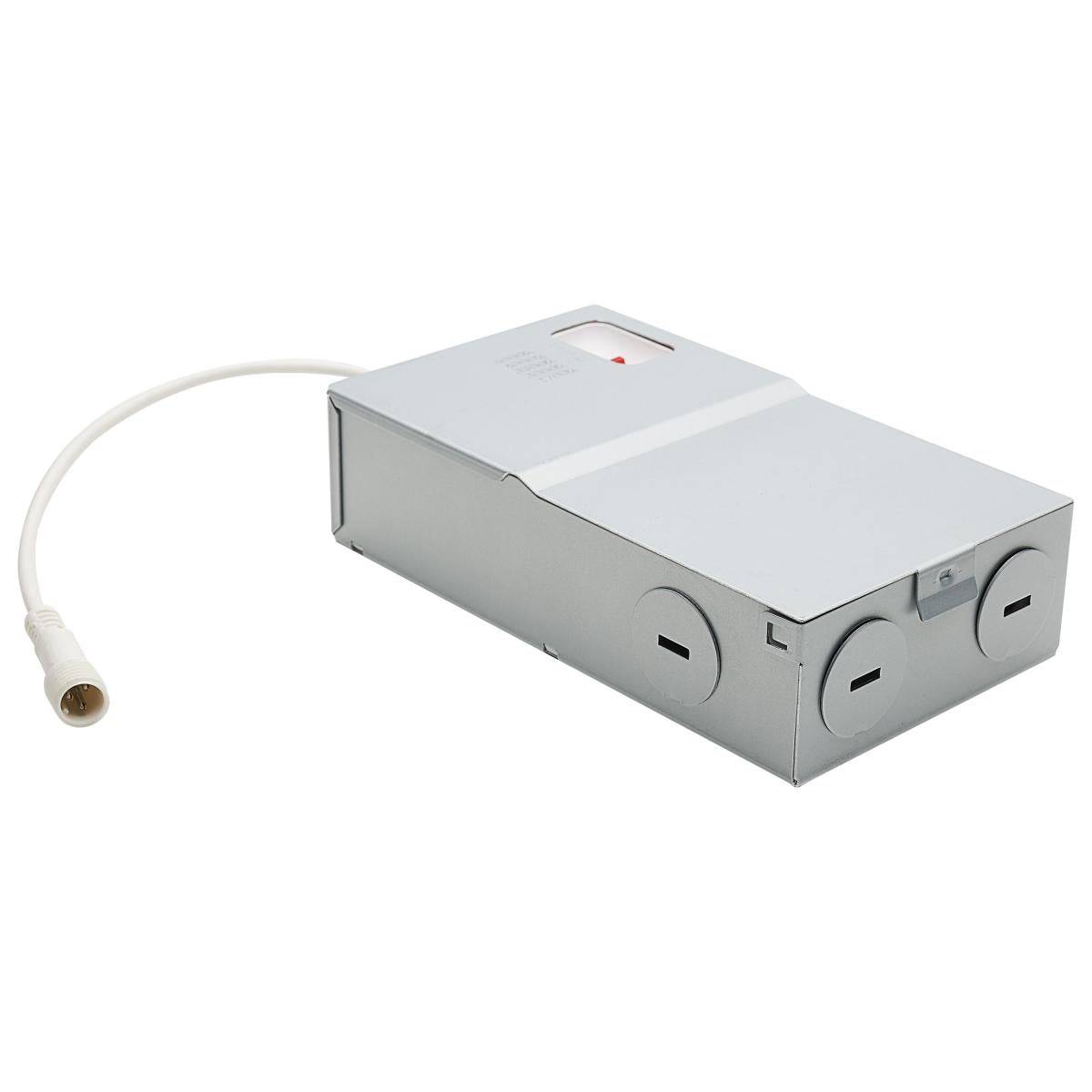

Specification Note Driver Dimensions: 4.50" x 3.00" x 1.25"
Warranty 5 Year Limited - Fixtures
Packaging
Each UPC 045923118678
Each Quantity 1
Each Length (in.) 7.87
Each Width (in.) 2.68
Each Height (in.) 6.93
