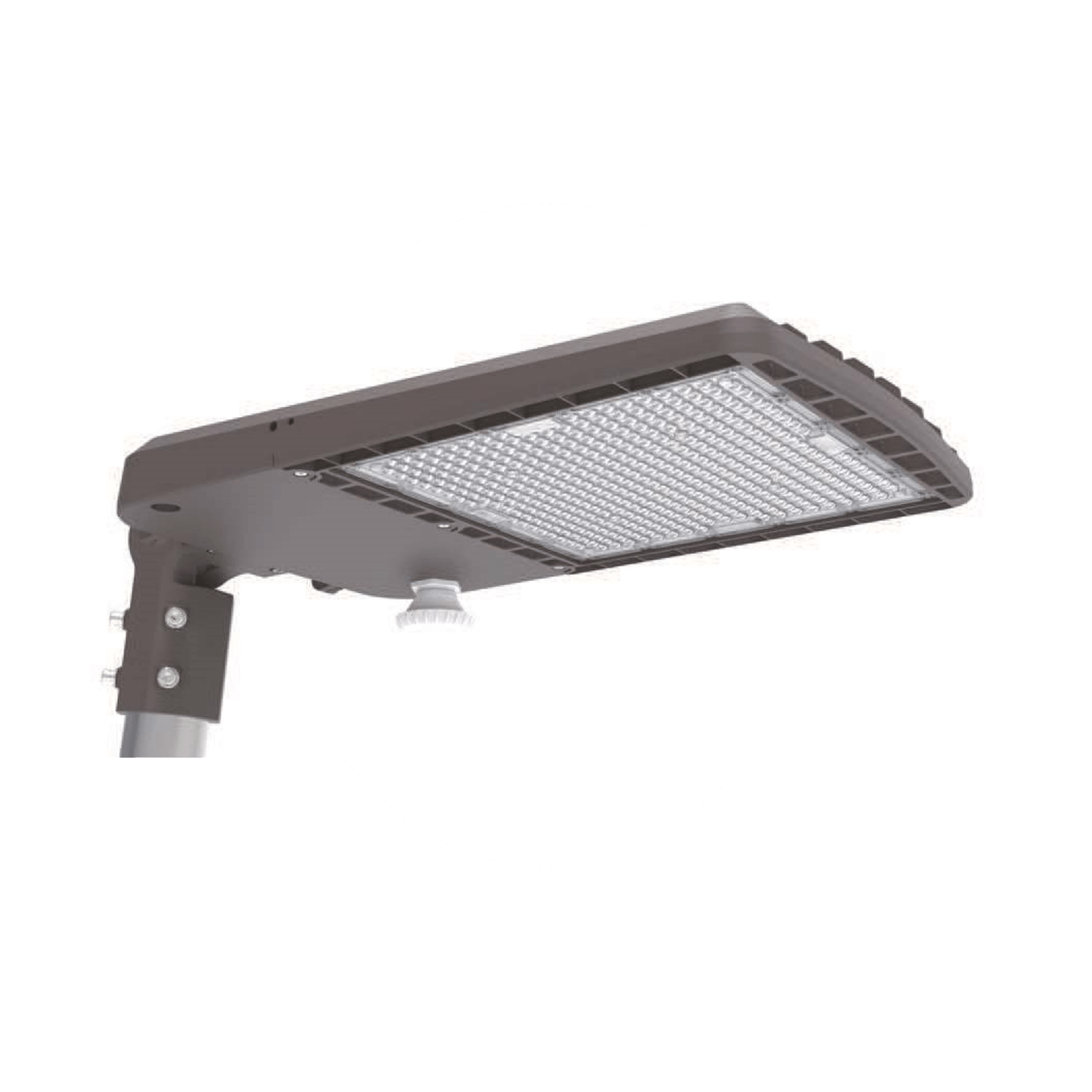

LED Area Light – Color & Watt Selectable 70 | 100 | 150 Watt

Part : 11765

Sale price$125.00

Please contact us for quantity discount


LED Area Light – Color & Watt Selectable 70 | 100 | 150 Watt

pdf download

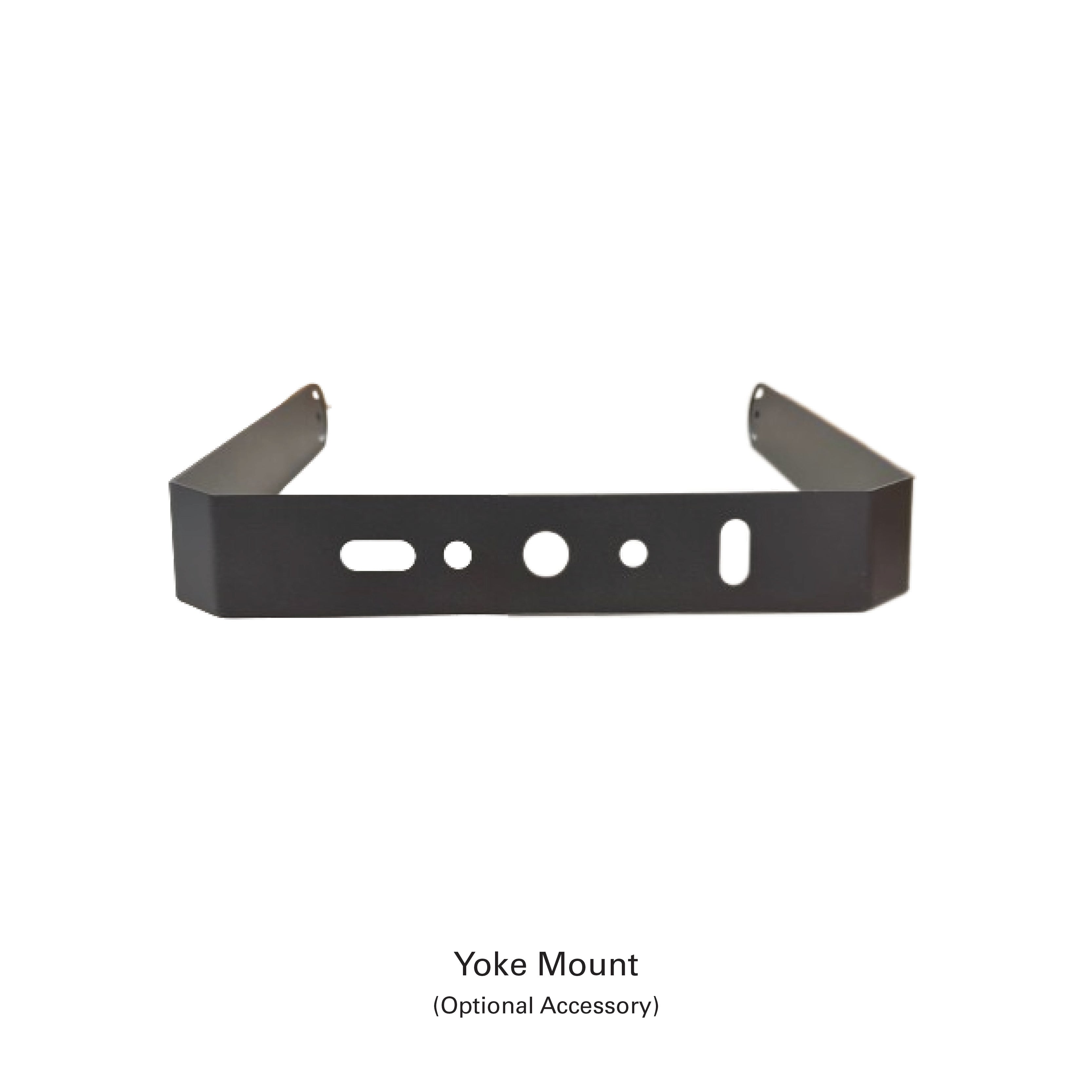

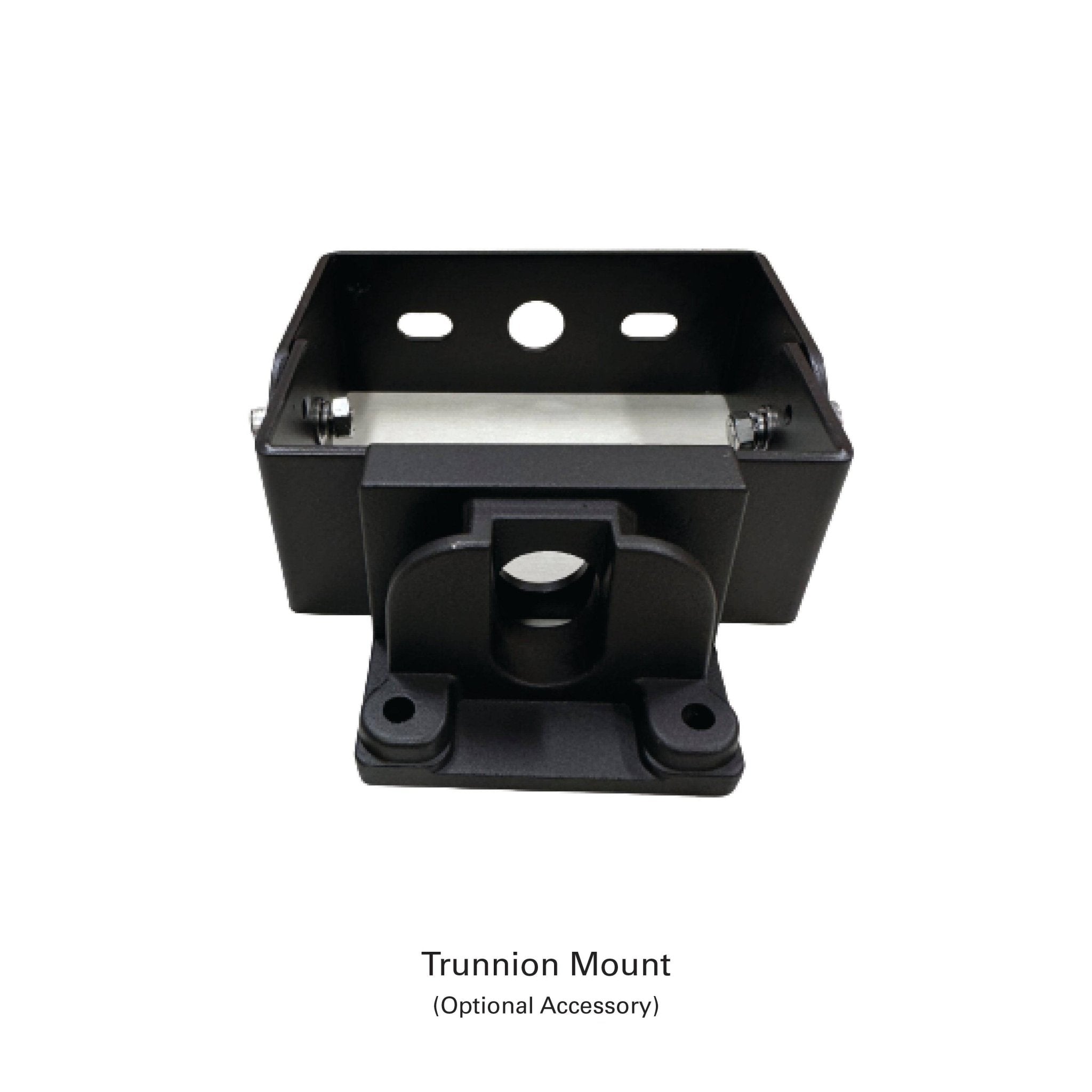

EarthTronics color and wattage selectable LED Area Lights low profile design that provides the flexibility to insure the correct light level and color temperature desired in different applications. Select from 3000K, 4000K or 5000K color temperatures as well as 9100, 13000 or 19500 lumen levels. LED Area Lights are ideal for exterior illumination for commercial, industrial, and municipal facilities. The durable die cast aluminum housing is powder coated to maintain the fixture appearance for several years. The area light provides more than 130 lumens per watt and a high 73 CRI for improved visual acuity and efficient performance. A dusk to dawn sensor is available and is easily added at the time of installation. The design is built to withstand all climates and allows for an extreme temperature range, even operating down to -40 degrees C°, and is IP65 wet location rated. The unique changeable mount system has the following options: slip fitter with adjustable angle, straight mounts for poles and wall applications and a trunnion (yoke) mount. DLC® Premium listed.

Dimensions: 17.99”x 11.81”x 4.72” Weight: 8.50 LBS UPC: 840791117651

  • Color Selectable: 3000K, 4000K, 5000K
  • Lumen Selectable: 9100, 13000 or 19500
  • Provides more than 130 lumens per watt
  • Die-cast aluminum alloy housing provides long life in commercial installations
  • Corrosion resistant finish & screws
  • Standard 6KV surge protector included
  • UV resistant powder coat finish

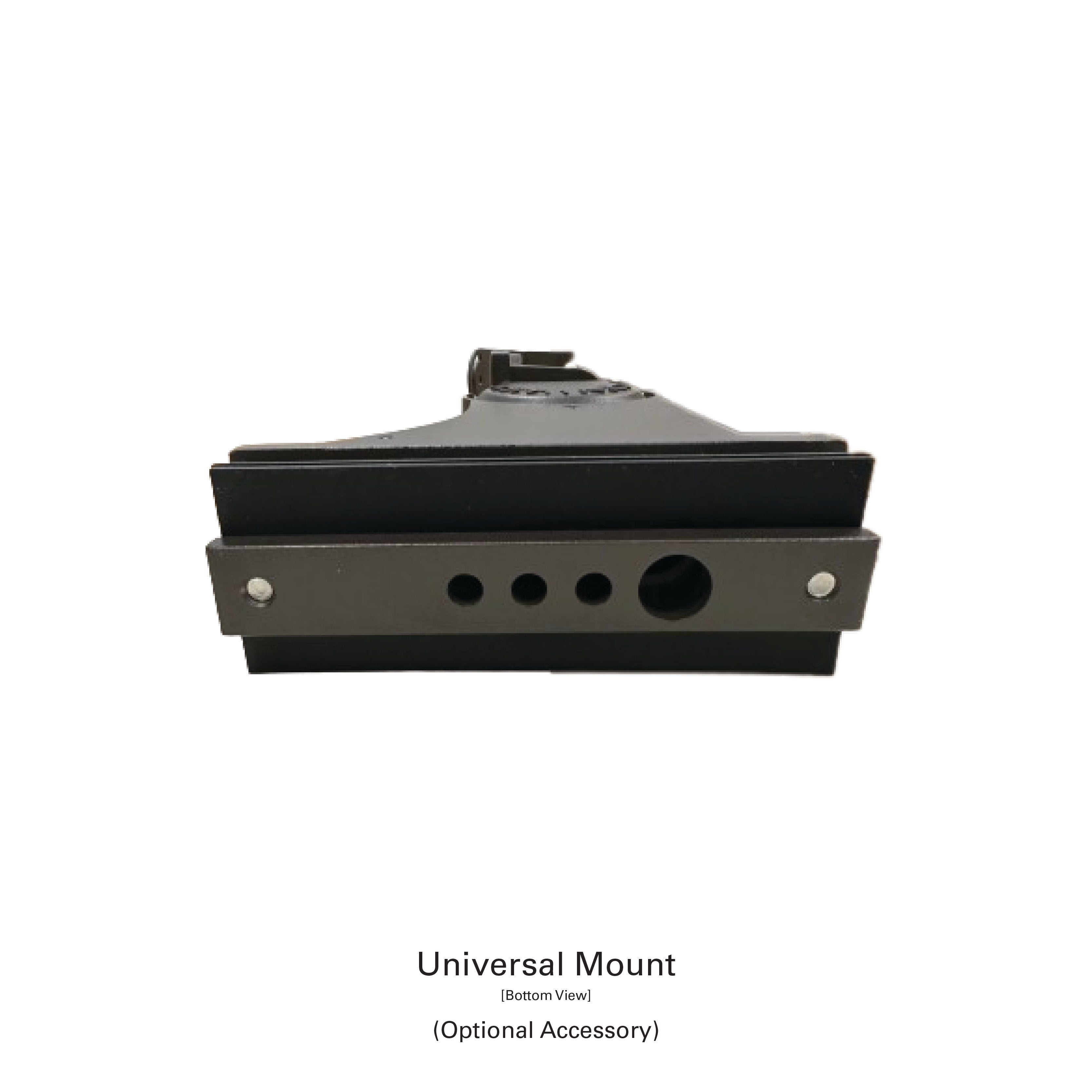

  • Various mounting options available
  • IP65 wet location rated
  • DLC® 5.1 Technical Requirement
  • DLC® Premium
  • Compatible with EarthConnect®, Networked Lighting Controls


Voltage: 120/277VAC, 347VAC

Power Factor: 0.942 THD: 15.1%

OperatingTemp. Range: -40°C (-4°F) to 45°C (113°F)

Dimming: 0-10VDCDim Capability & Range: Continuous down to 10% LIGHT

Initial Lumens: 19500 Lumens per Watt: 130 Color Temperature: 3000K, 4000K, 5000K
