Description

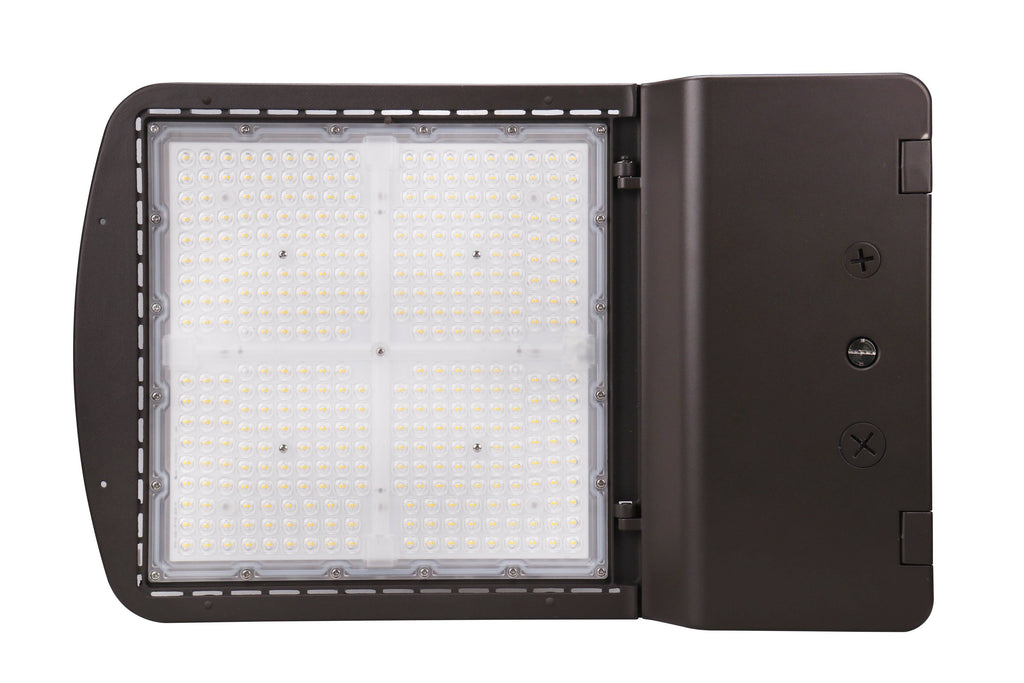

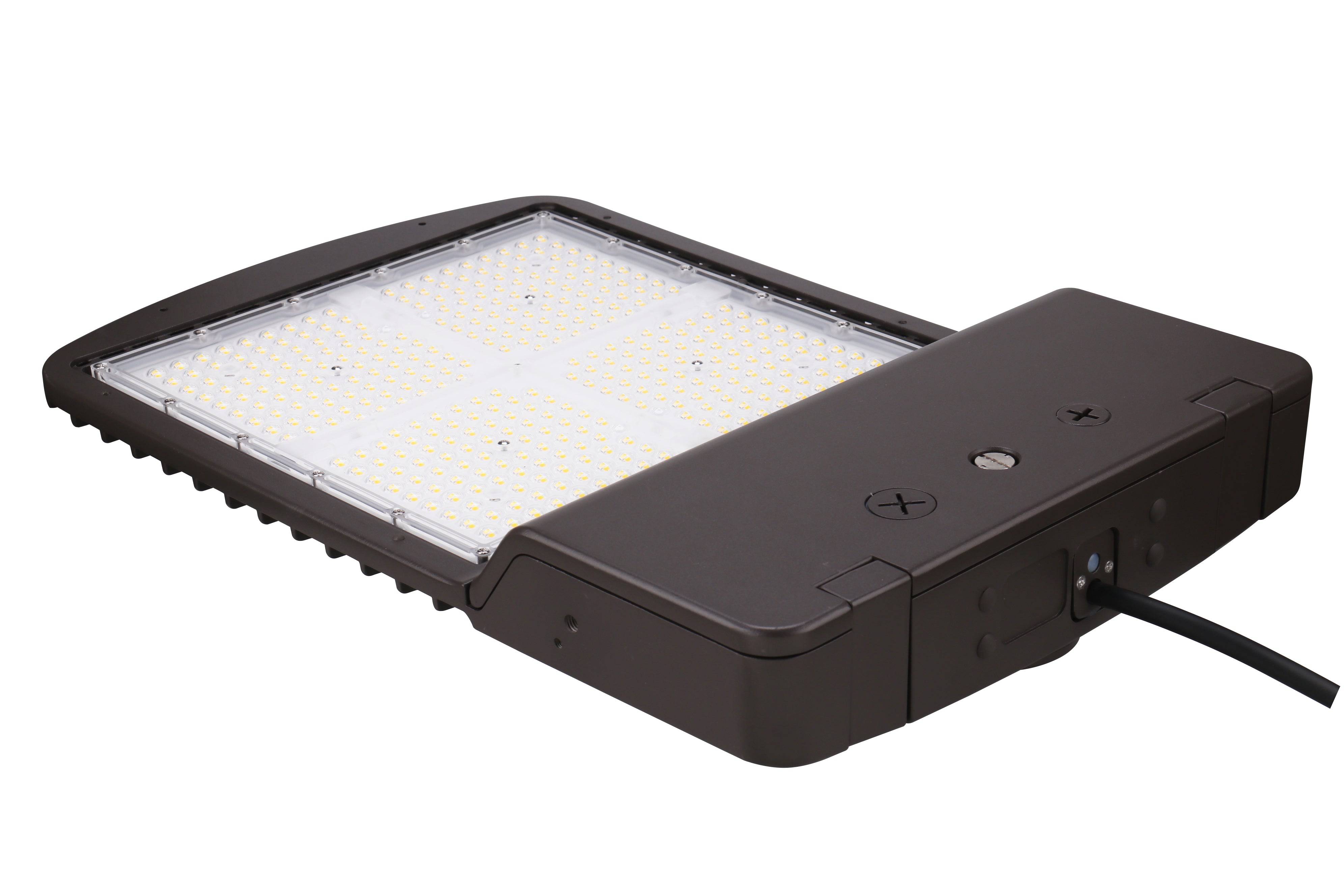

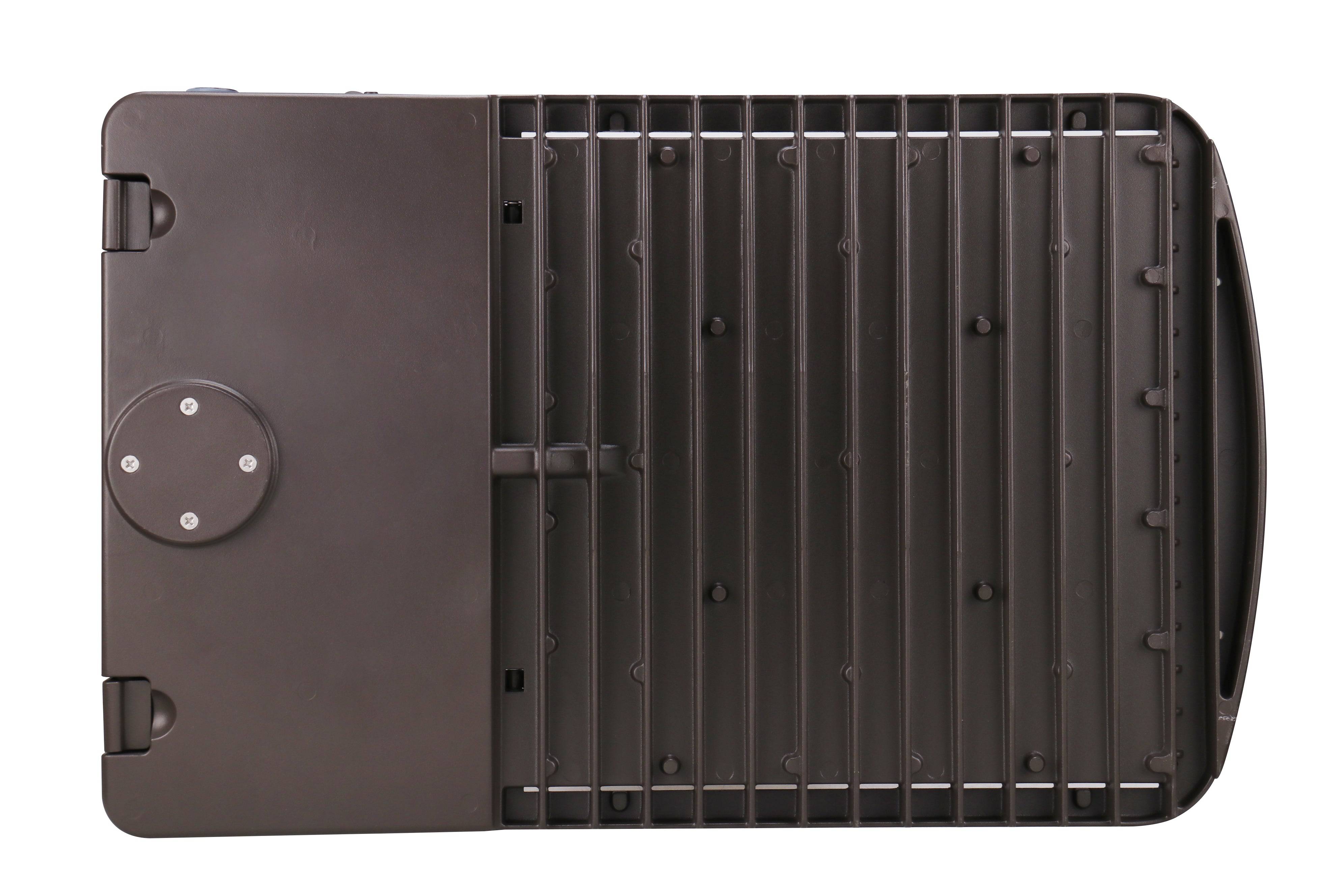

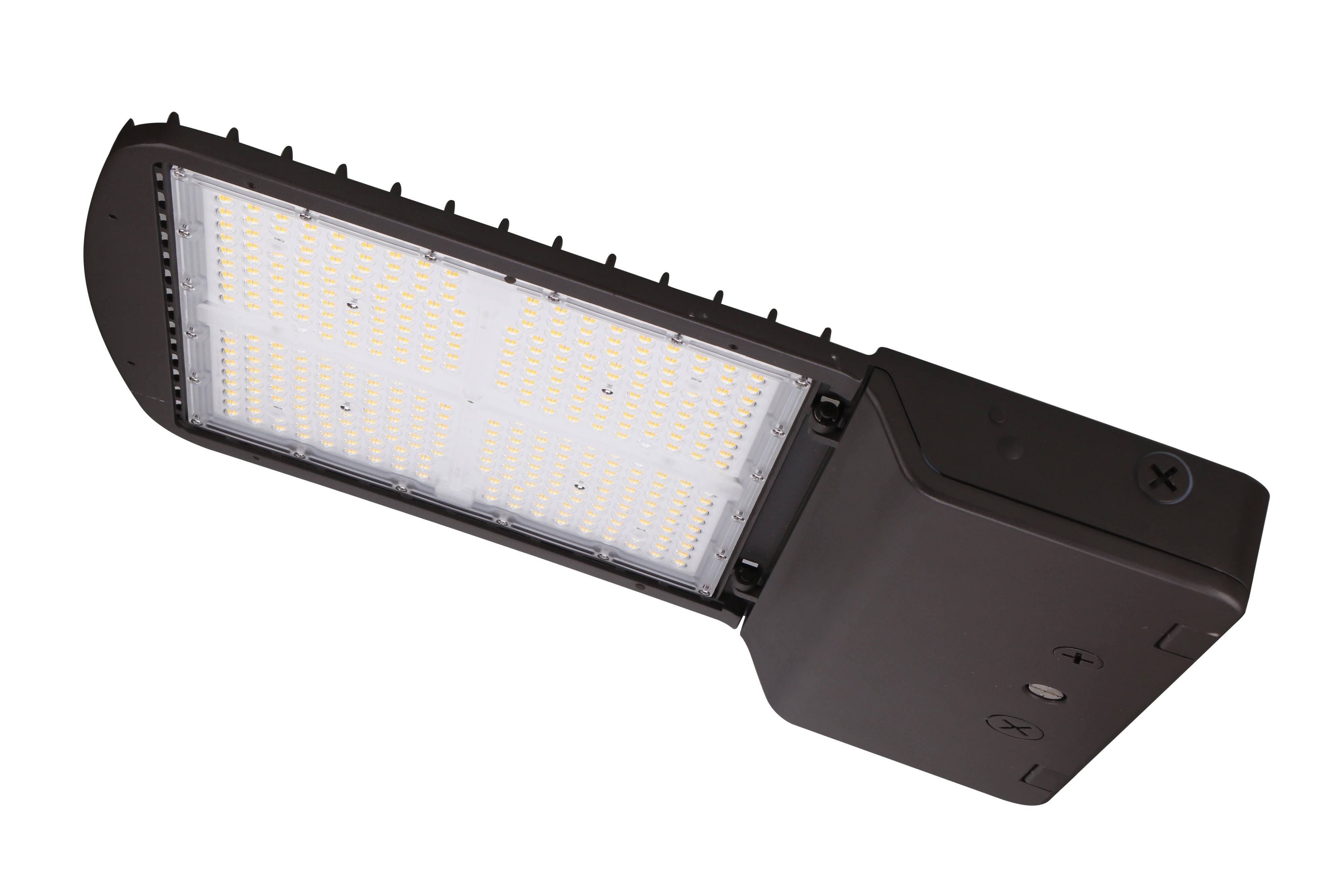

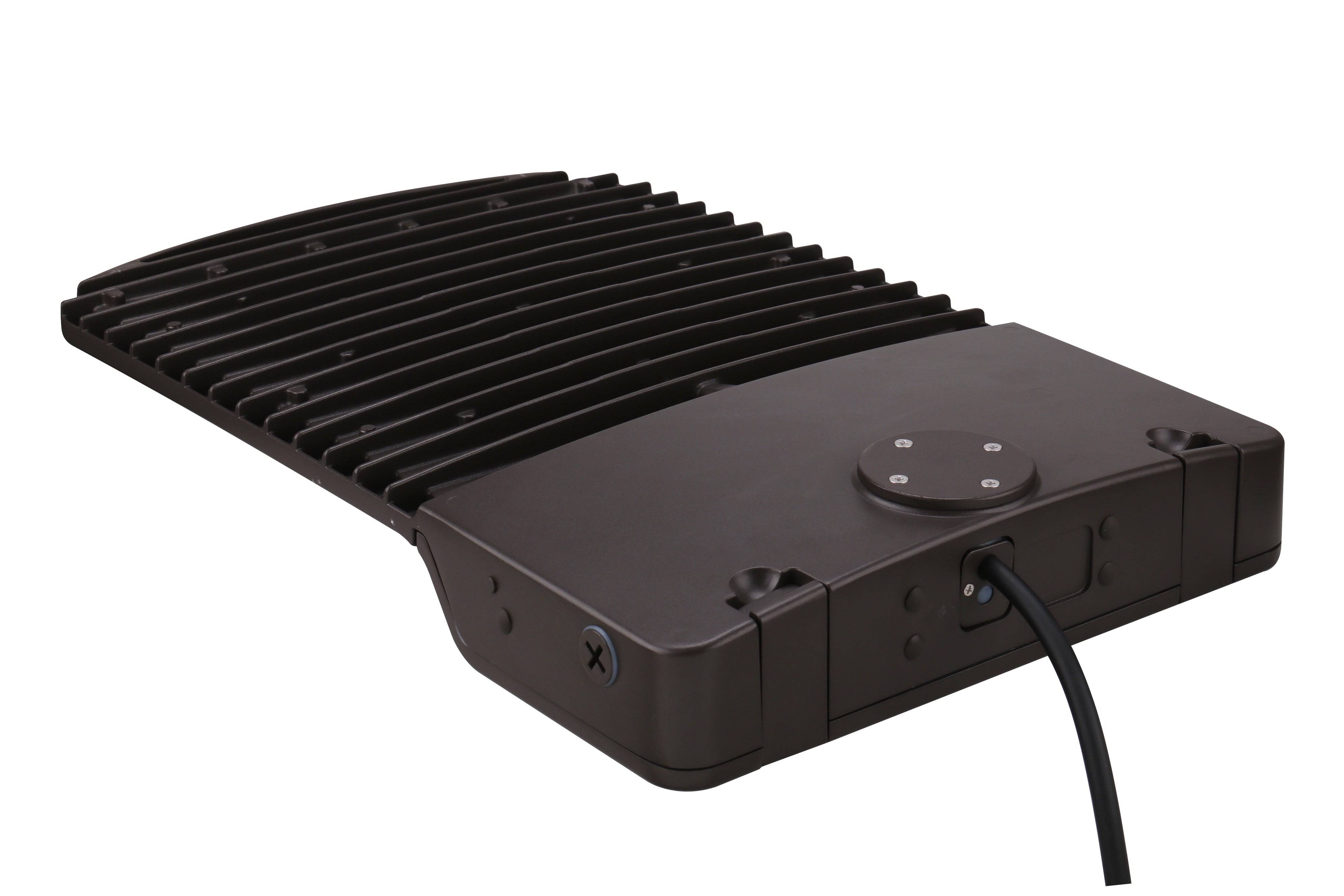

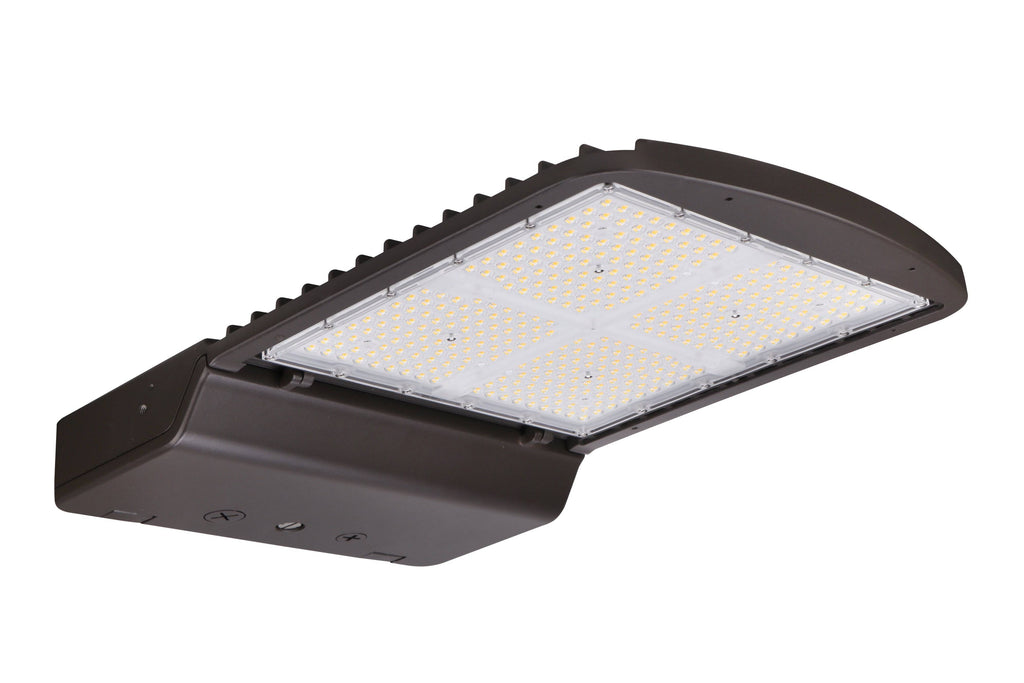

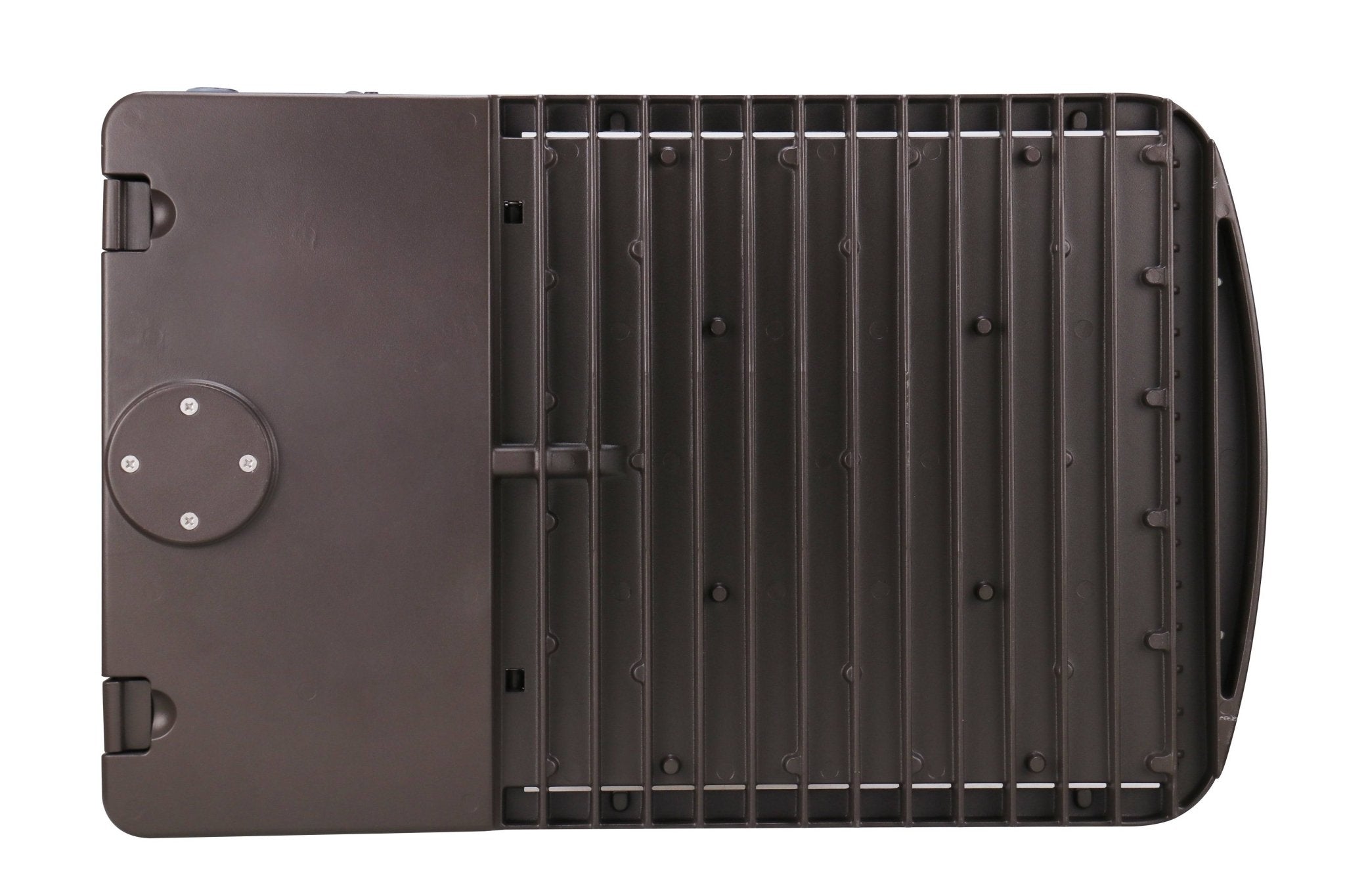

LED Area Light, PowerSet 300/240/200W, FieldCCeT 3000/4000/5000K, Type 3 Lens, 277-480V, Dimming, Bronze
AAL1-PS300-FCCTT3-V
Order Code:14682
| Product Specifications | |
|---|---|
| Voltage | 277-480VAC |
| Lumens (lm) | 42,000/33,600/28,000 lm |
| Wattage | 300/240/200W |
| Efficacy (lm/W) | 140 lm/W |
| CCT | 3000K / 4000K / 5000K |
| CRI | 80+ |
| Dimming | 0-10 |
| Replacement For/Equivalent | up to 400-1000W HID |
| DLC Version | DLC Premium |
| T20 Status | Exempt |
| IP Rating | IP65 |
| Wet/Damp/Dry Location | Wet |
| IK Rating | 8 |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| UL | Yes |
| Dimensions (L x W x H) | L: 20 3/8" (518 mm), W: 13" (330 mm), H: 2 5/16" (74 mm) |
| Housing Color | Bronze |
| Lens Material | Polycarbonate (PC) |
| Operating Temp Range (°F/°C) | -40F to 122F (-40C to 50C) |
| Driver Surge Protection (kV) | L/N-PE: 10kV, L-N: 10kV |
| Additional Surge Protection (kV) | 10kV included, 20kV option |
| Auxiliary Output | 12V, 100mA |
| Warranty | 5 Years |
