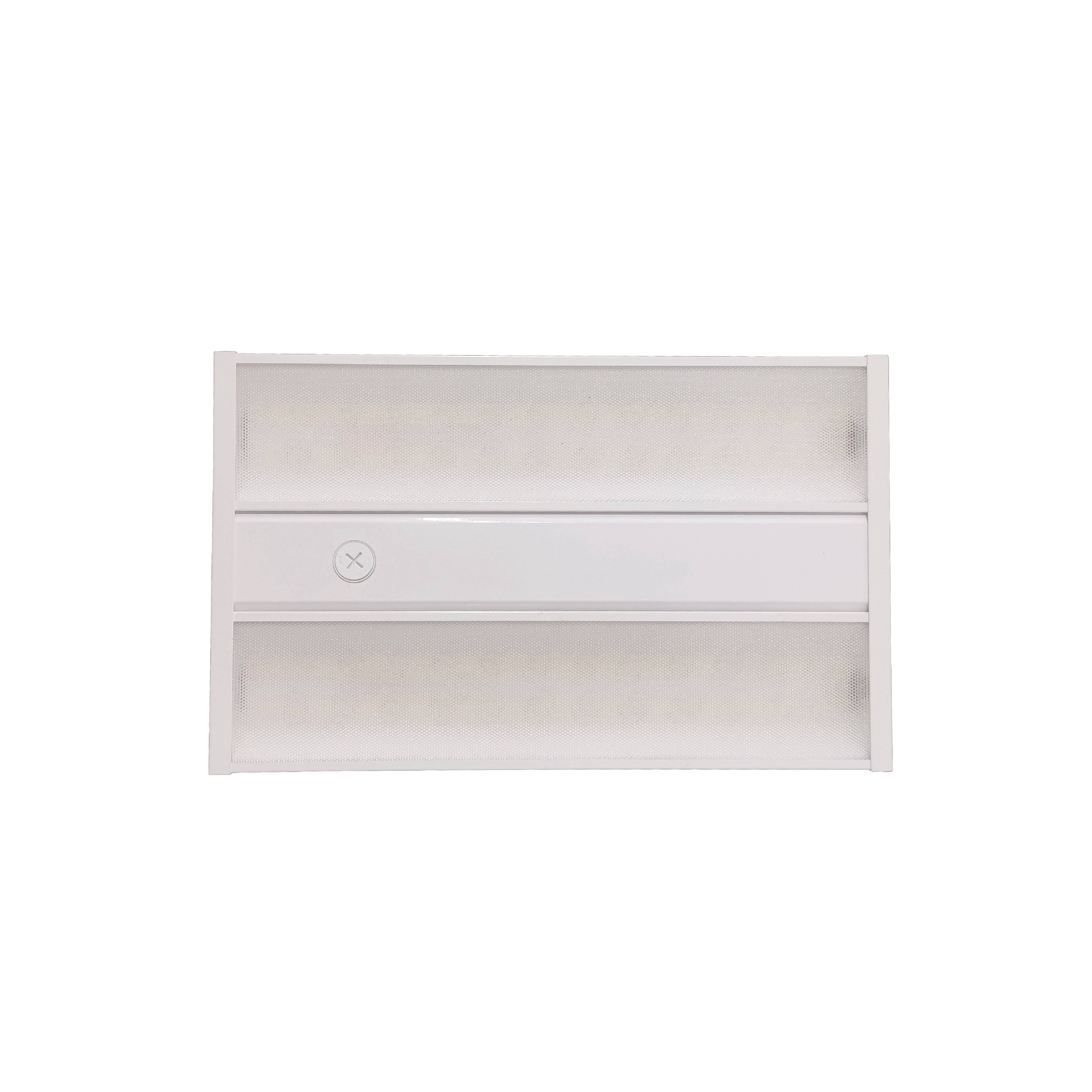

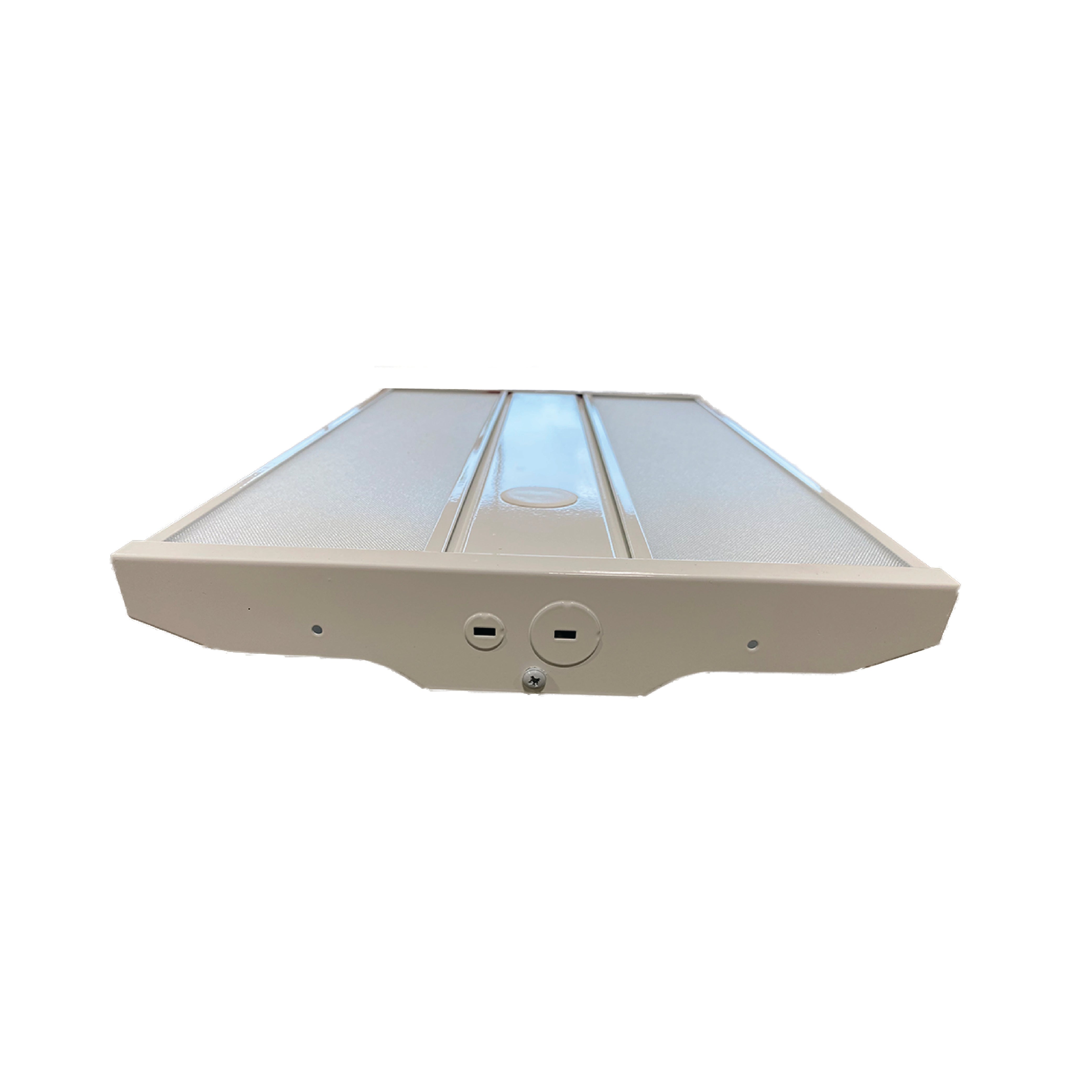

LED High Bay Premium Series- 20250 Lumens, 135 Watt, 5000K, 120-277V

Part : 11687

Sale price$75.00

Please contact us for quantity discount


LED High Bay Premium Series- 20250 Lumens, 135 Watt, 5000K, 120-277V

pdf download

EarthTronics LED High Bay offers a small, lightweight design that delivers excellent energy savings without sacrificing performance. This 135-watt LED  highbay has a 1.3ft design and provides 20250 lumens. It features a durable steel housing and the 5000K color temperature with a high 80+ CRI providing excellent visual acuity for accuracy when working in manufacturing and warehousing applications. Various mounting options are available. DLC® Premium



  • Lightweight, compact design
  • 120/277VAC 50-60Hz
  • Operating at 150 lumens per watt
  • DLC® Premium
  • 6kV ANSI surge protection standard
  • Integral LED lens is constructed from PMMA and provides even illumination across the face of the high bay
  • Durable steel housing
  • Up to 50°C true ambient temperature
  • Driver standard with 0-10V dimming (prewired)
  • Suitable for damp locations
  • Dimmable
  • 100,000 hours rated life L70
  • Hanging hardware included V-Hooks & chain
  • Emergency back-up driver available
    UL: Yes
    RoHS: Yes
    DLC® Premium: Yes

    Housing: Steel
    Lens: PMMA optical glare-
    control lens
    Warranty: 5 years
    Rated Life: 50,000 hours
    Lumen Maintenance:
    L70 at 100,000 hrs
    Weight: 7.94 LBS

  • Dimensions:
    16.62”L x 10.25" W x 2.0”D

    Watts: 135
    Voltage: 120-277VAC
    Power Factor: >0.9
    THD: ≤10%
    Operating Temp. Range:
    -20°C (-4°F) to 50°C (122°F)
    Initial Lumens: 20250
    Lumens per Watt: 150
    Color Temperature: 5000K
    CRI: 82
    Dimming: 0-10V
    Dimmable: Yes
