LED Linear High-Bay; 110W/130W/155W Wattage Selectable; 3K/4K/5K

Part : 65-1011

Sale price$102.99

Please contact us for quantity discount


LED Linear High-Bay; 110W/130W/155W Wattage Selectable; 3K/4K/5K

pdf download

Introducing SATCO|NUVO's versatile High Bay Fixtures, designed for ultimate lighting adaptability. Our field selectable fixtures comes with interchangeable optical lenses, offering unparalleled flexibility to meet various lighting requirements. The included 90 degrees x 90 degrees optical lens ensures even light distribution for most general applications, while optional lenses are available as accessories for specialized lighting needs. In addition to lens versatility, these fixtures offer three wattage and color temperature options, a flicker-free driver for seamless illumination, 6kV surge protection for added durability, and 0-10V dimming capability for precise control. For enhanced energy efficiency, an integrated sensor port is readily accessible, allowing seamless installation of optional PIR or microwave motion sensors. These sensors can be conveniently configured using an optional remote control. Designed for surface, suspension, and pendant mounting capabilities, these high bays are the ultimate lighting solution that adapts to all your needs.

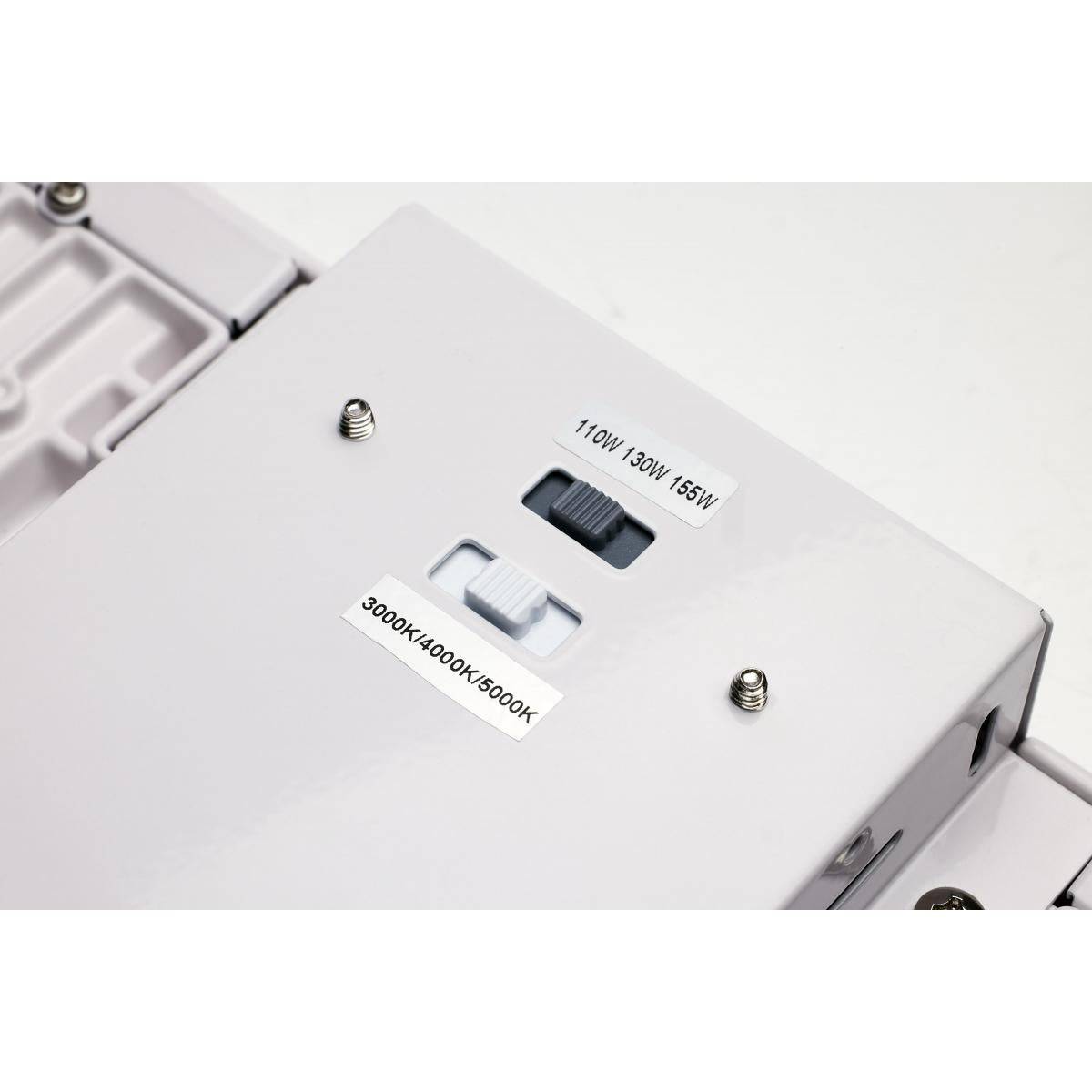

  • CCT and Wattage Selectable
  • Flicker Free Driver
  • Integrated Sensor Port
  • 41-inch Suspension Kit Included
  • 6kV Surge Protection
  • 5 Year Warranty


Fixture Type Linear Hi-Bay
Finish White
Wattage 110W/130W/155W
Lumen Output 15655L-21714L
CCT (Kelvin) 3000K/4000K/5000K
IP Rating IP20
Technology LED
Wattage 110W/130W/155W
Lumen Output 15655L-21714L
CCT (Kelvin) 3000K/4000K/5000K
CRI 80
Voltage 120V-277V
Beam Angle 90x90
Rated Hours 50000
Operating Temperature -40C (-40F) to +55C (+131F)
Dimmable Yes-Dimmable
Dimming Note 0-10V Dimming
Lens Material Polycarbonate (PC)
Surge Protection Built-in surge protection - 6KV
Weight (lb.) 5.07
IP Rating IP20
Material Die-cast Aluminum
Height (in.) 1.77
Width (in.) 11.02
Length (in.) 14.17
Safety Listing cULus - Certified
Location Rating Damp
DLC Approved Yes
CA T20 / T24 Rationale T20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS Compliant Yes
FCC Compliant Yes
Additional Information
Includes 41 Inch Suspension Kit
Warranty 5 Year Limited - Fixtures
Each UPC 045923657283
Each Quantity 1
Each Length (in.) 14.96
Each Width (in.) 11.81
Each Height (in.) 2.95
