Description

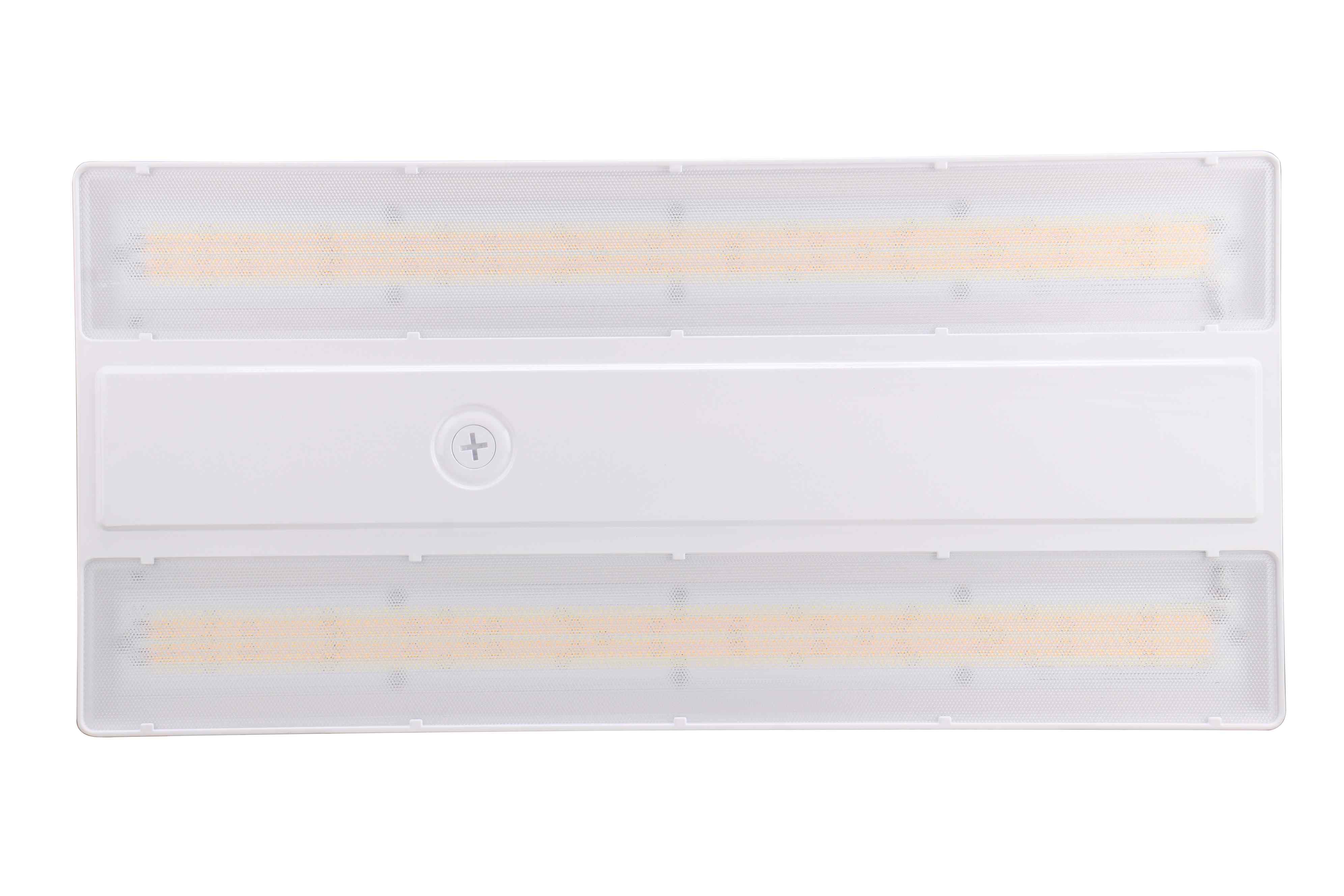

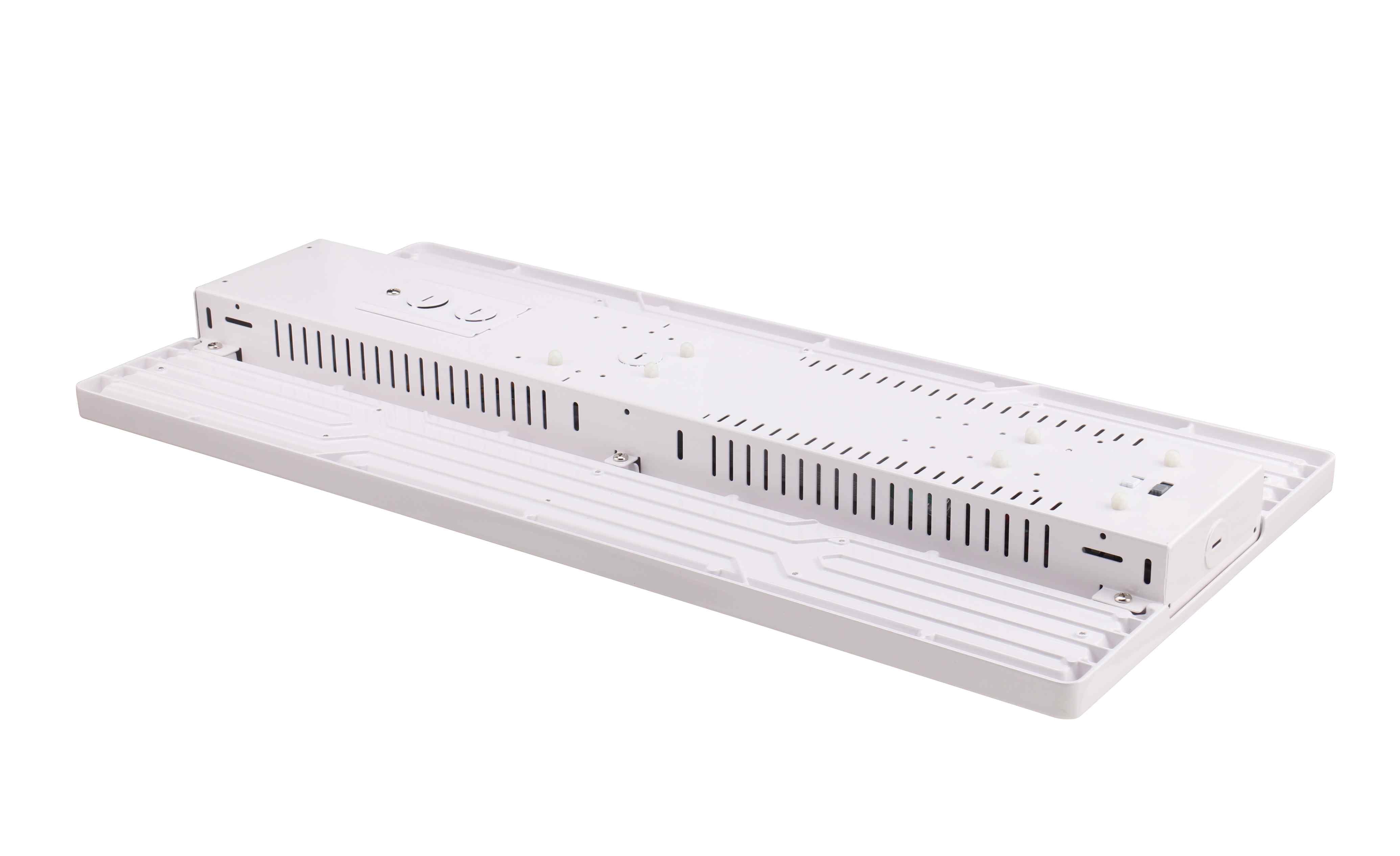

LED Linear High Bay, PowerSet 160/130/110/90W, FieldCCeT 4000/5000K, 120-277V, Dimming
| Product Specifications | |
|---|---|
| Voltage | 120-277VAC |
| Lumens (lm) | 13,500/16,500/19,500/24,000 lm |
| Wattage | 90/110/130/160W |
| Efficacy (lm/W) | 150 lm/W |
| CCT (K) | 4000K / 5000K |
| CRI | 80+ |
| Dimming | 0-10 |
| Replacement for | 6 lamp 32W T8 or 4 lamp T5 HO or up to 400W HID |
| DLC Version | DLC Premium |
| T20 Status | Exempt |
| IP Rating | IP20 |
| Wet/Damp/Dry Location | Damp |
| IK Rating | 6 |
| Dimensions (L x W x H) | L: 23" (585 mm), W: 11" (280 mm), H: 2 3/16" (55 mm) |
| Housing Color | White |
| Lens Material New | Polycarbonate (PC) |
| Ambient Temp Range | Without Motion Sensor: -40F to 122F (-40C to 50C), With Motion Sensor: -22F to 122F (-30C to 50C) |
| Driver Surge Protection (kV) new | L/N-PE: 6kV, L-N: 6kV |
| Auxiliary Output | Yes (12V) |
