Description

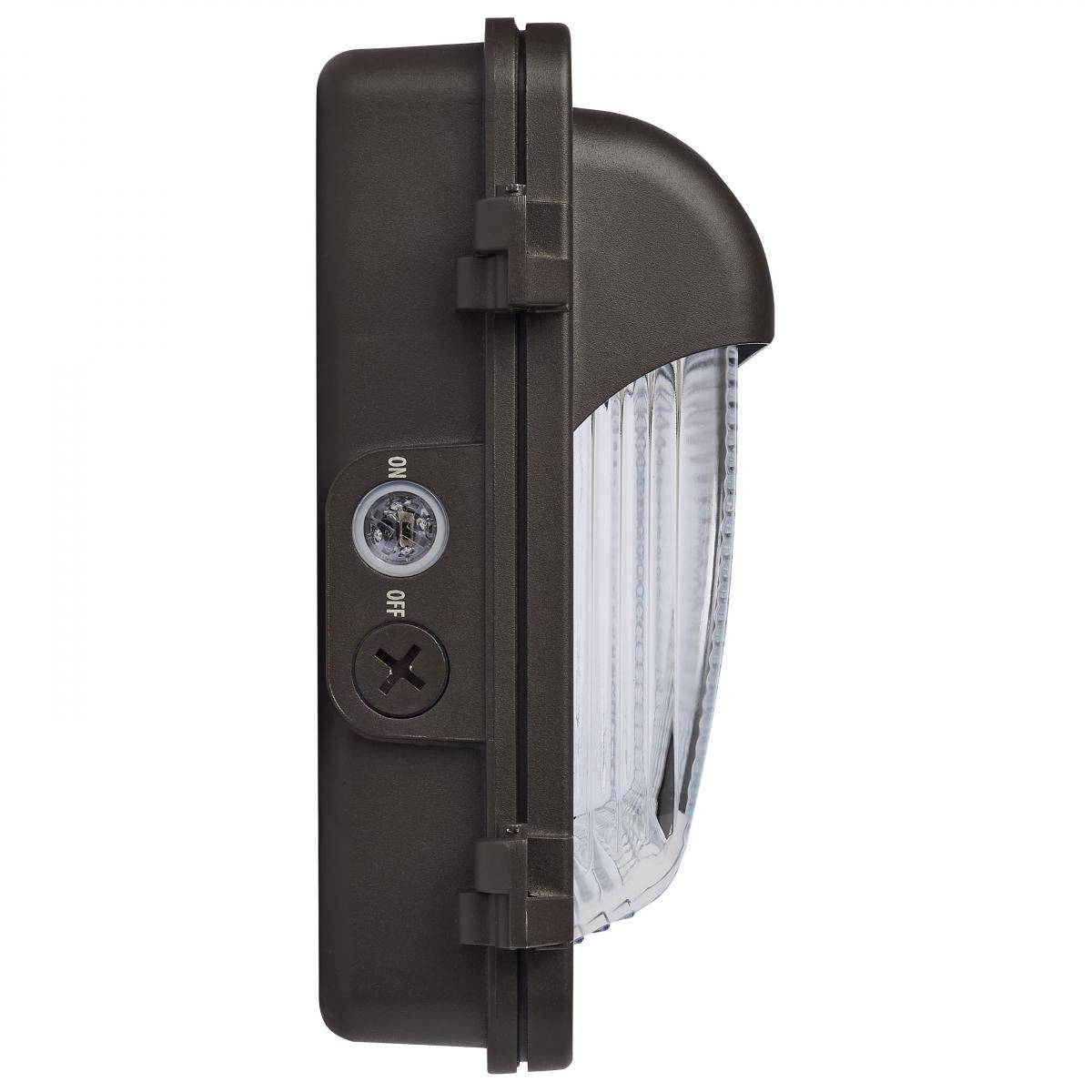

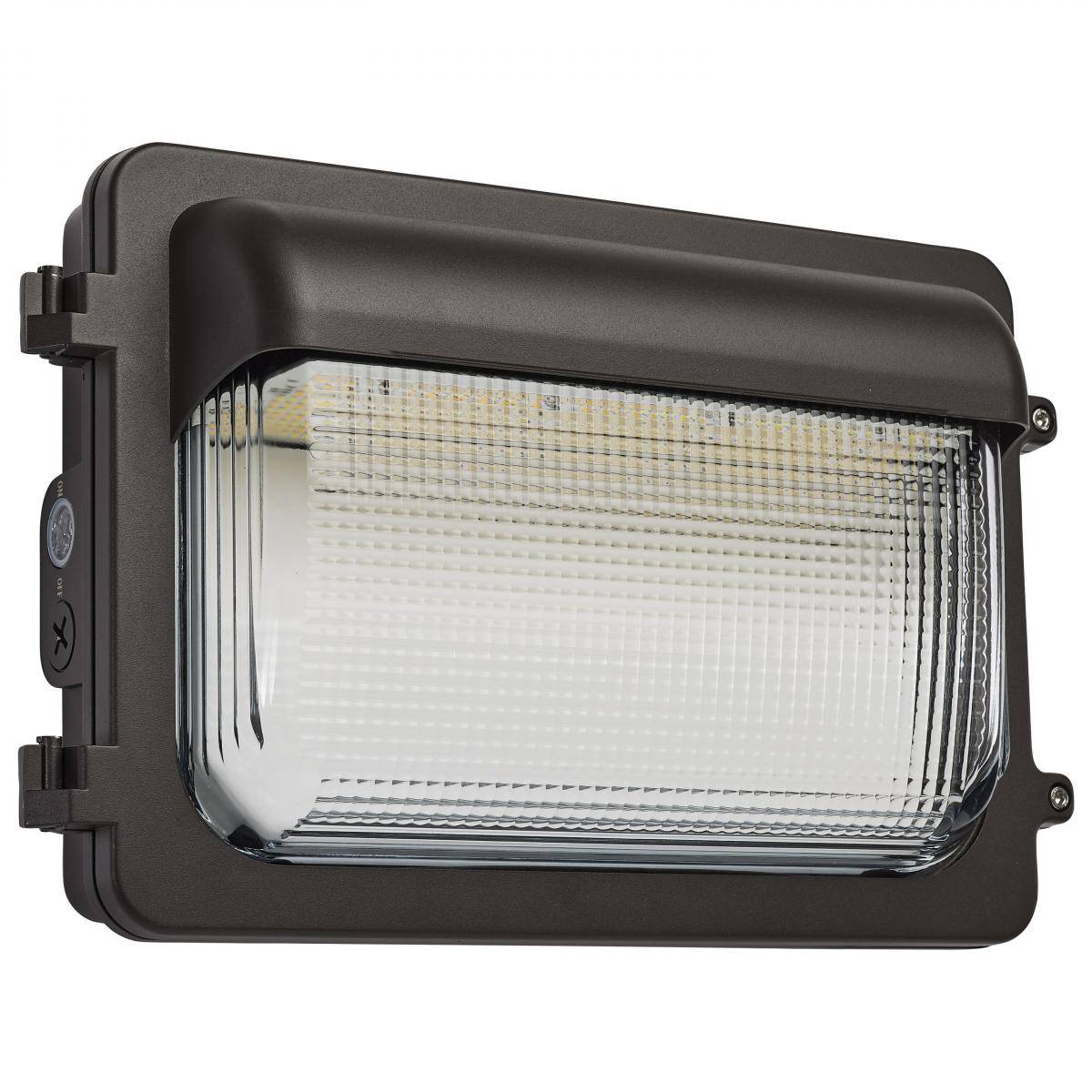

LED Low Profile Wall Pack; Wattage 30/45/60W and CCT 3K/4K/5K Selectable; Photocell
| Fixture Type | Wall Pack |
| Finish | Bronze |
| Wattage | 30W/45W/60W |
| Lumen Output | 3844L-7506L |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Temperature | Soft White to Natural Light |
| IP Rating | IP65 |
| Indoor or Outdoor Fixture | Indoor; Outdoor |
Specifications
| Technology | LED |
| Wattage | 30W/45W/60W |
| Lumen Output | 3844L-7506L |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Color Temperature | Soft White to Natural Light |
| CRI | 80 |
| Voltage | 120V-277V |
| Beam Angle | 90 |
| Rated Hours | 50000 |
| Operating Temperature | -40C (-40F) to +50C (+122F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming |

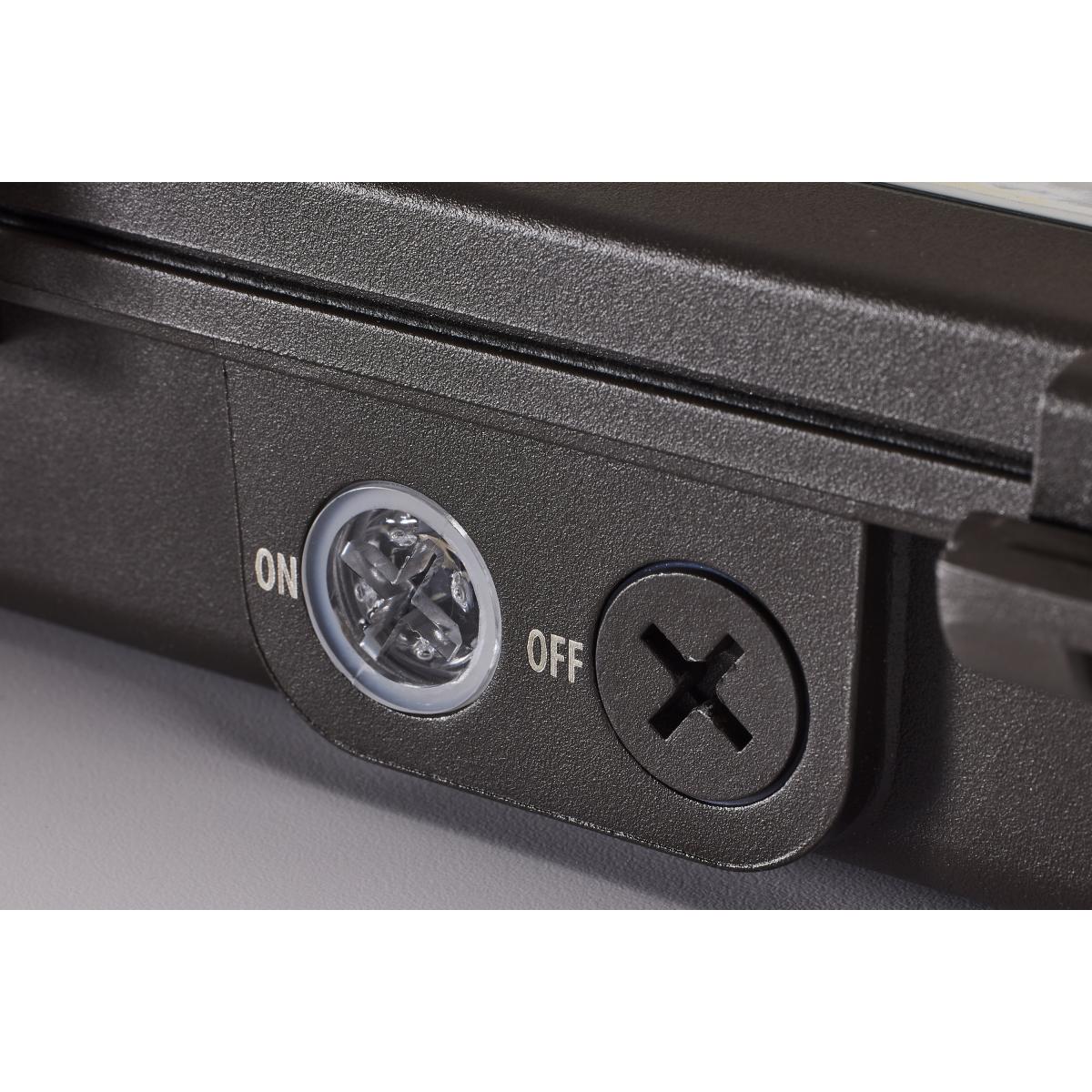

| Photocell or Sensor | Has Photocell |
| Lens Material | Borosilicate Glass |
| Surge Protection | Built-in surge protection - 4KV |
| Weight (lb.) | 9.26 |
| IP Rating | IP65 |
| Material | Die-Cast Aluminum |
Dimensions
| Height (in.) | 9.76 |
| Width (in.) | 15.55 |
| Extension (in.) | 4.21 |
Compliance
| Safety Listing | cETLus - Listed |
| Location Rating | Wet |
| DLC Approved | Yes |
| DLC ID | S-27Y08Z |
| ADA Compliant | No |
| B.U.G. Rating | B1-U3-G3 |
| CA T20 / T24 Rationale | T20 Exempt - Fixtures Not Regulated |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
Additional Information
| Warranty | 5 Year Limited - Fixtures |
Packaging
| Each UPC | 045923561023 |
| Each Quantity | 1 |
| Each Length (in.) | 17.50 |
| Each Width (in.) | 5.25 |
| Each Height (in.) | 5.25 |
