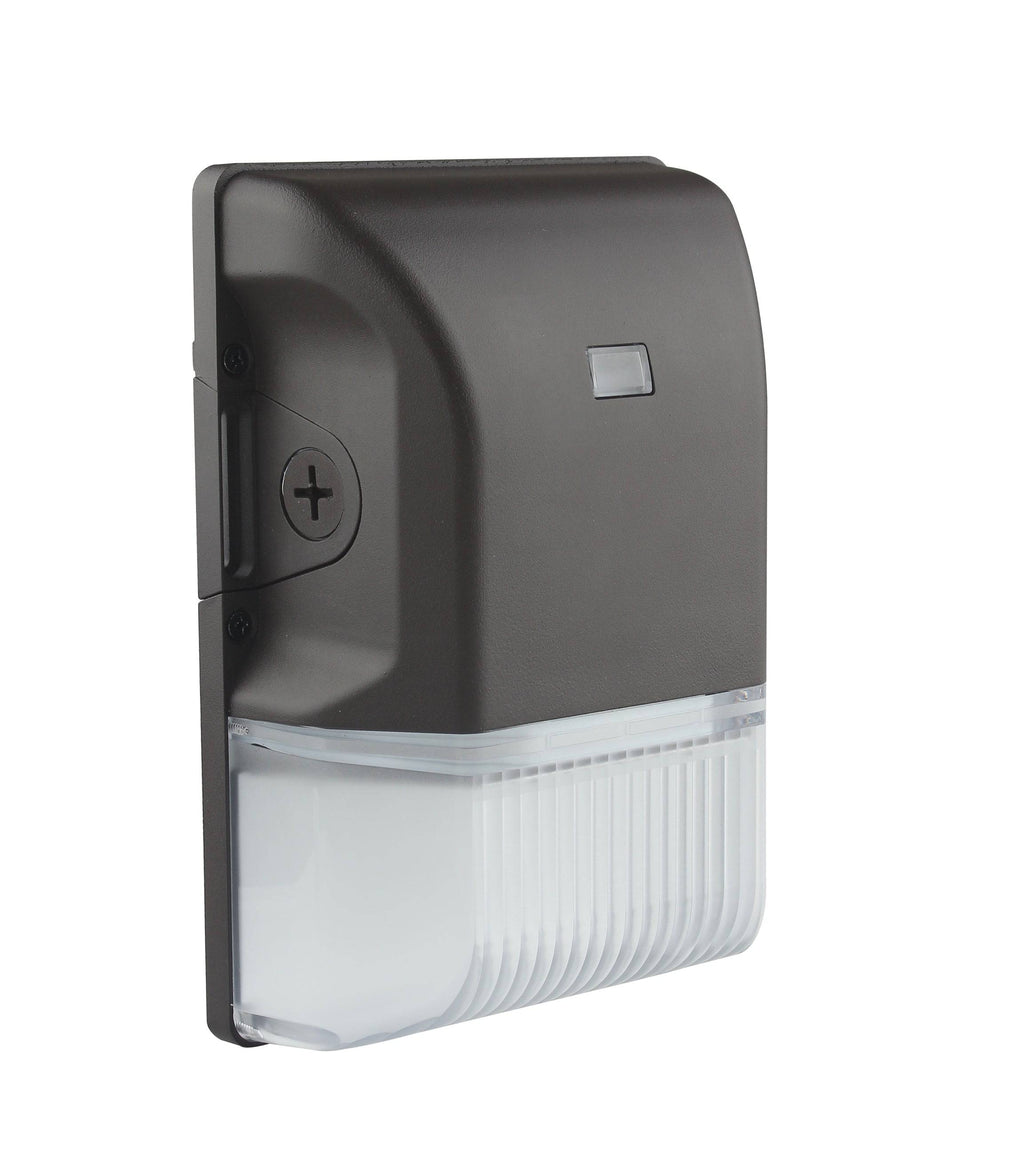

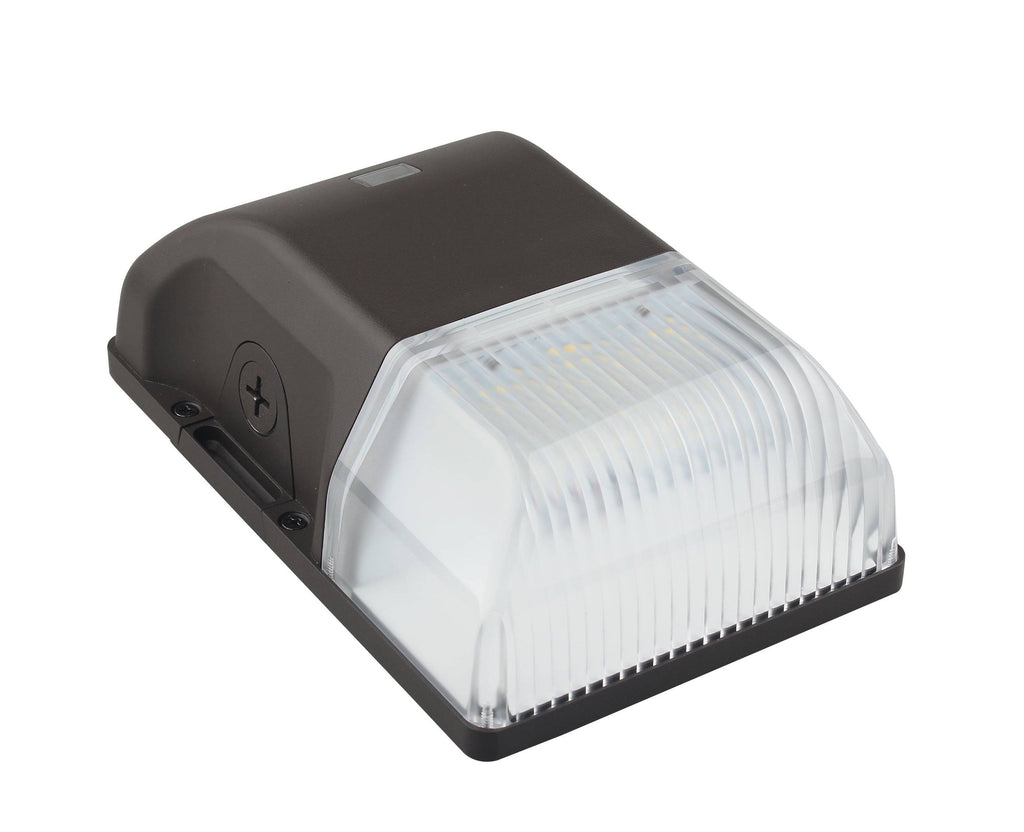

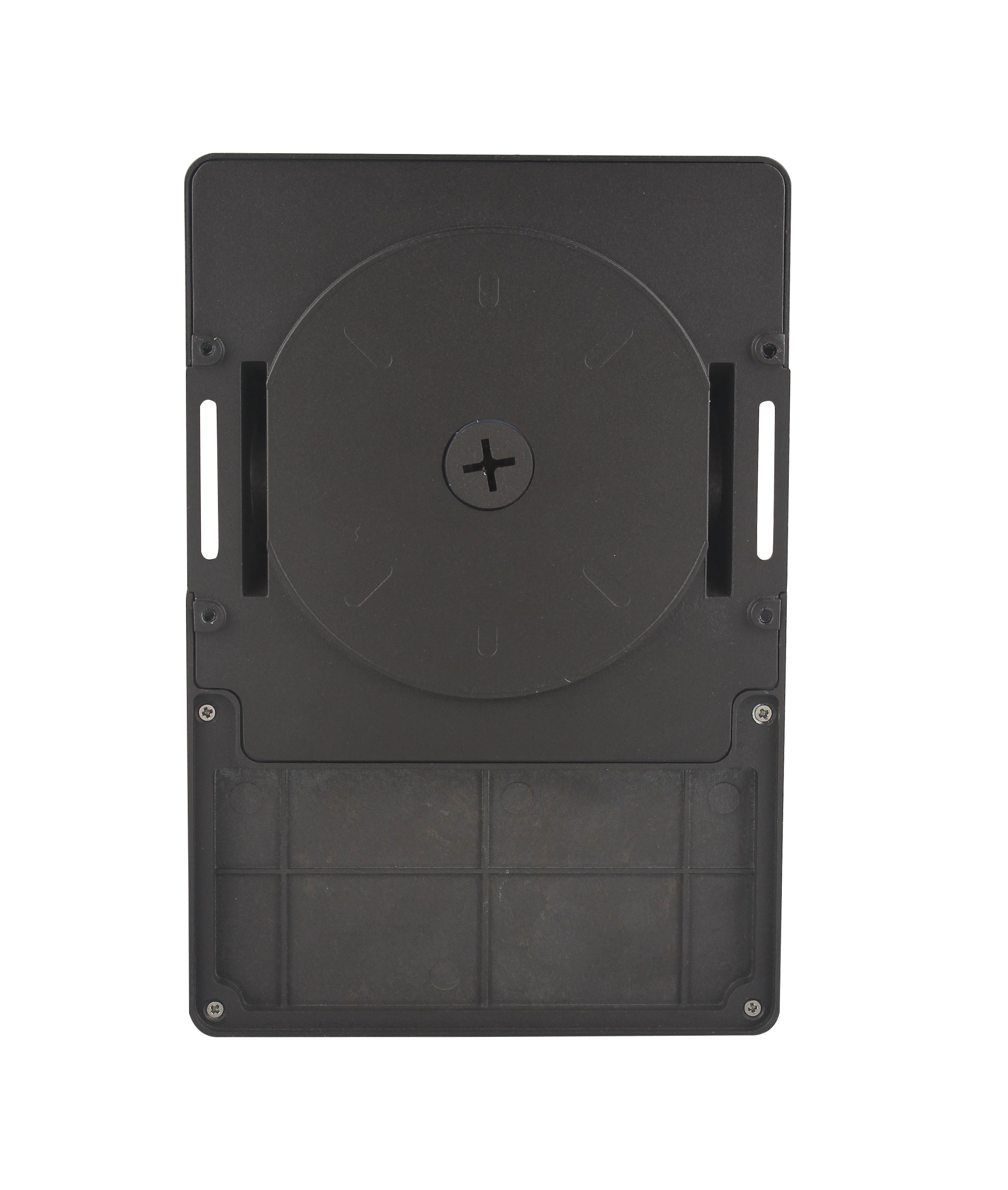

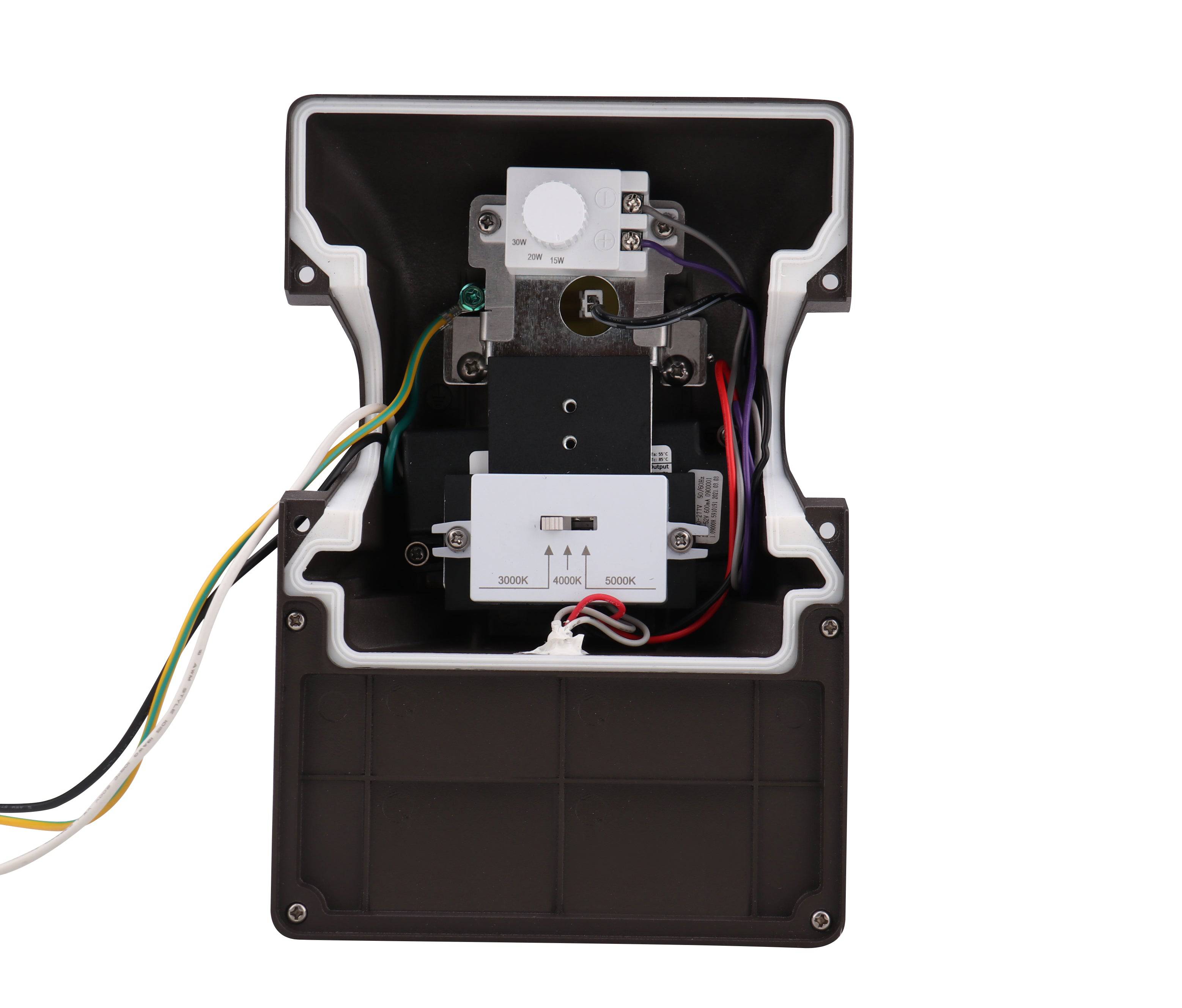

LED Mini Wall Pack, 30/20/15W, 3000/4000/5000K, 100-277V, Photocell

Part : 13930

Sale price$69.50

Please contact us for quantity discount


Mini Wall Pack, 30/20/15W, 3000/4000/5000K, 100-277V, Photocell

The MWP1 Series Mini Wall Pack is an energy efficient lighting solution that eliminates the need for frequent lamp or ballast replacements. It is the ideal fixture for security, entryways, stairways, as well as storage and perimeter areas.pdf download

Product Specifications
Voltage 100-277VAC
Lumens (lm) 30W, 3K: 3,741 lm | 30W, 4K: 3,933 lm | 30W, 5K: 3,708 lm | 20W, 3K: 2,685 lm | 20W, 4K: 2,758 lm | 20W, 5K: 2,654 lm | 15W, 3K: 1,998 lm | 15W, 4K: 2,067 lm | 15W, 5K: 2,017 lm
Wattage 30/20/15W
Efficacy (lm/W) 30W/3000K = 130 lm/W, 30W/4000K = 140 lm/W, 30W/5000K = 125 lm/W, 20W/3000K = 134 lm/W, 20W/4000K = 144 lm/W, 20W/5000K = 134 lm/W, 15W/3000K = 136 lm/W, 15W/4000K = 142 lm/W, 15W/5000K = 136 lm/W
CCT (K) 3000K / 4000K / 5000K
CRI 80+
Replacement for 70W HID
DLC Version DLC Premium
T20 Status Exempt
IP Rating IP65
Wet/Damp/Dry Location Wet
IK Rating 8
FCC Compliant New Yes
Dimensions (L x W x H) L: 5 13/16" (147mm), W: 3 1/16" (78mm), H: 8 9/16" (218mm)
Housing Color Dark Bronze
Lens Material New Polycarbonate (PC)
Ambient Temp Range -40F to 113F (-40C to 45C)
Driver Surge Protection (kV) new L/N-PE: 2.5kV, L-N: 2.5kV
Auxiliary Output N/A
General Warranty 5 Years
