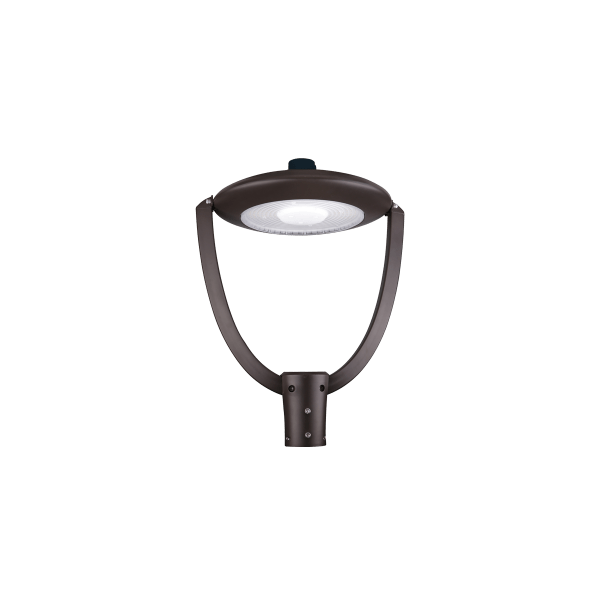

LED PT3-150GS-3 Matte Black LED Post Top Light CCT Selectable

Part : PT3-150GS-3

Sale price$364.00

Please contact us for quantity discount


LED PT3-150GS-3 Matte Black LED Post Top Light CCT Selectable

pdf download


Order Code:13124

Pole Top, 150/125/100W, 3K/4K/5K, 100-347V, Dimmable

UPC CODE:  031293131249

These PT3-Series LED Pole Top luminaires are a modern
twist on the everyday pathway fixture. With a wide beam
angle that provides uniform light, these fixtures are the
perfect lighting solution for parking lots, parks, and retail
Voltage 120-347VAC
Lumens (lm) 150W, 3K: 19,265 lm | 150W, 4K: 20,602 lm | 150W, 5K: 20,262 lm | 125W, 3K: 17,127 lm | 125W, 4K: 18,285 lm | 125W, 5K: 18,163 lm | 100W, 3K: 12,618 lm | 100W, 4K: 13,083 lm | 100W, 5K: 13,102 lm
Wattage 150/125/100W
Efficacy (lm/W) 150W, 3K: 122 lm/W | 150W, 4K: 140 lm/W | 150W, 5K: 130 lm/W | 125W, 3K: 128 lm/W | 125W, 4K: 145 lm/W | 125W, 5K: 138 lm/W | 100W, 3K: 130 lm/W | 100W, 4K: 143 lm/W | 100W, 5K: 139 lm/W
CCT (K) 3000K / 4000K / 5000K
CRI 80+
Replacement for Up to 400W HID
DLC Version DLC Premium
T20 Status Exempt
IP Rating IP65
Wet/Damp/Dry Location Wet
FCC Compliant New Yes
Dimensions (L x W x H) L: 26 1/4" (666mm), W: 21" (531mm), H: 3" (75mm)
Housing Color Matte Black
Lens Material New Tempered Glass
Ambient Temp Range -40F to 122F (-40C to 50C)
Driver Surge Protection (kV) new L/N-PE: 6kV, L-N: 4kV
General Warranty 10 Years
