LED UFO HighBay Color Selectable & Watt Selectable-50, 80, 100, or 150 Watt

Part : 11776

Price:
Sale price$79.50

Please contact us for quantity discount

Description

LED UFO HighBay Color Selectable & Watt Selectable-50, 80, 100, or 150 Watt

pdf download

Description

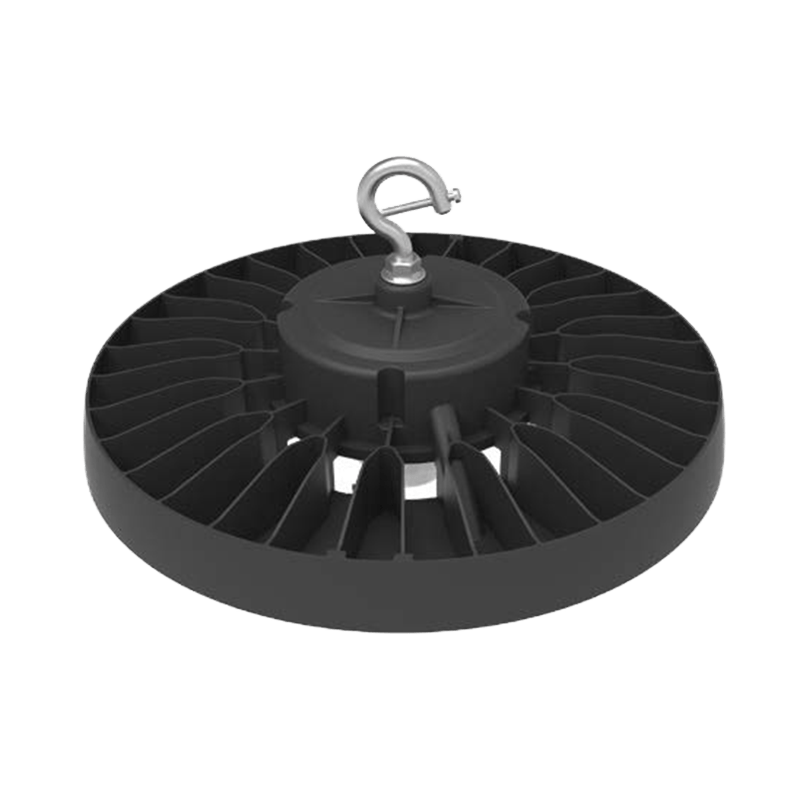

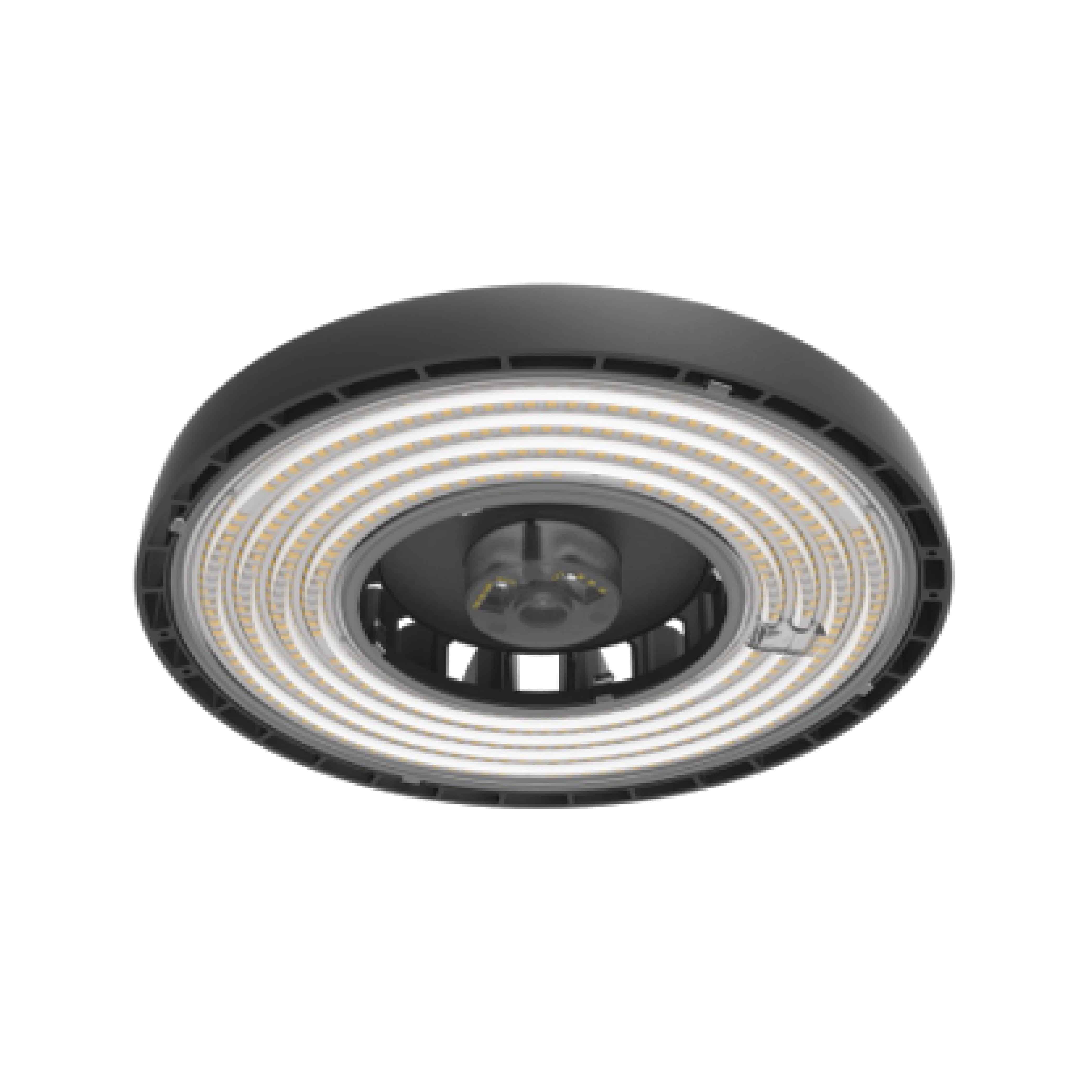

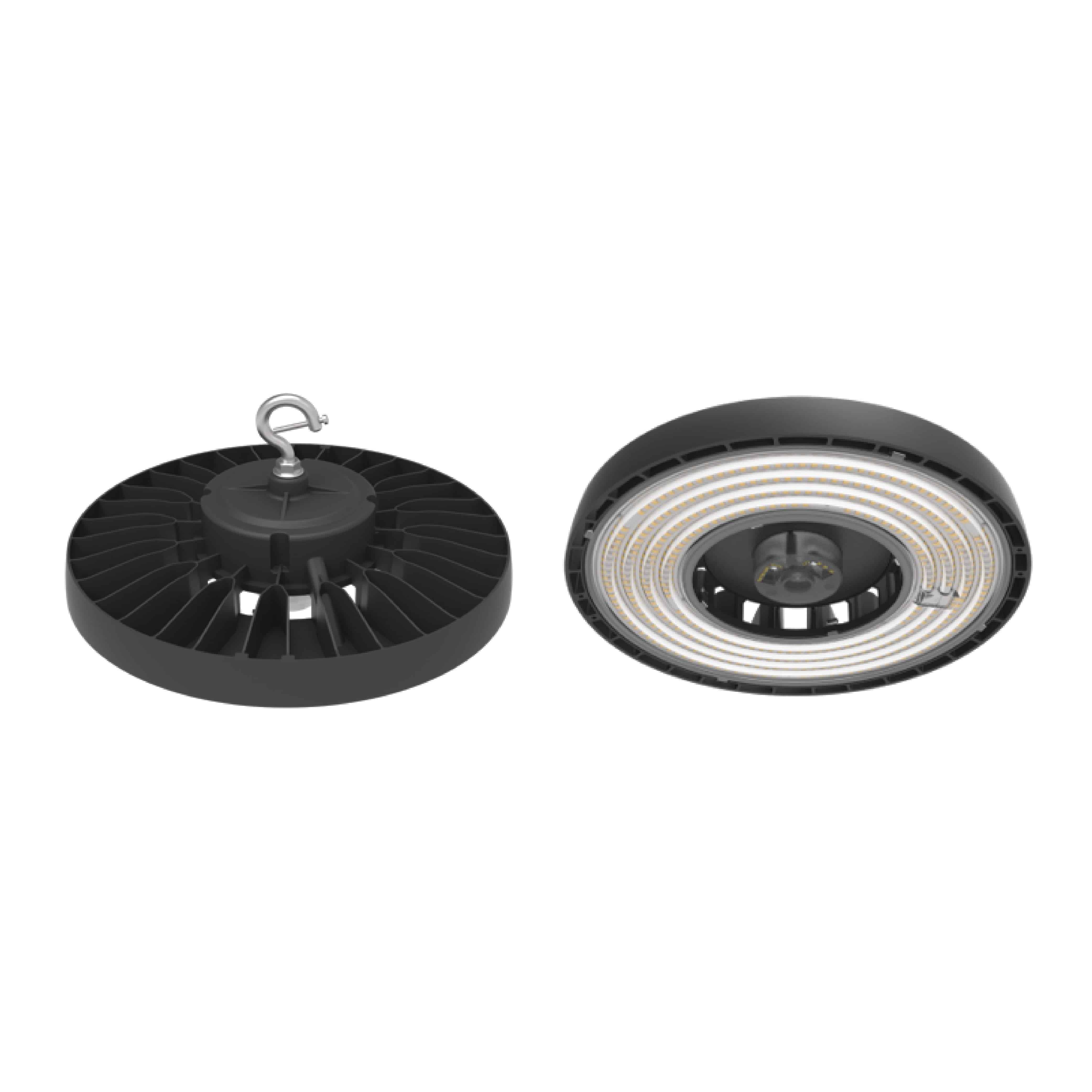

EarthTronics LED Highbay delivers excellent energy savings then replacing up to a 1000 watt HID fixtures. This wattage selectable fixture has an 11.30” diameter design and produces up to 20250 lumens. The CCT (color) selectable feature and a high 80+ CRI rating provides excellent visual acuity for accuracy when working in various manufacturing and warehousing applications. The LED driver is equipped with 12VDC to power optional sensors or EarthConnect Bluetooth mesh systems. Sensor options are easily installed by simply screwing them into the face of the fixture. This die-cast fixture has a unique open center ventilated LED design which affords excellent heat dissipation providing high lumen maintenance over its service life. IP65 rated for wet locations. Driver is 120/277VAC with 0-10V dimming standard and compatible with several controls. High quality LED chips provide excellent lumen maintenance. This UFO High Bay ships with a standard 6’ 18/3 SJT whip, 0-10v dimming wires and mounting hooks.



  • 120/277V
  • Simple design
  • Feature 3-stage color temperature adjustment, 3-stage brightness adjustment
  • Operating at 135 lumens per watt
  • Ships with standard 6′ 18/3 SJT whip, 1-10v dimming wires and mounting hooks
  • IP65 wet location rated
  • Polycarbonate lens
  • Corrosion resistant die-cast aluminum housing
  • Driver standard with 0-10V dimming -prewired

  • Dimensions: 12.20”x 12.20”x 5.11”
    Weight: 6.2 LBS
    UPC: 840791117767
  •
