Description

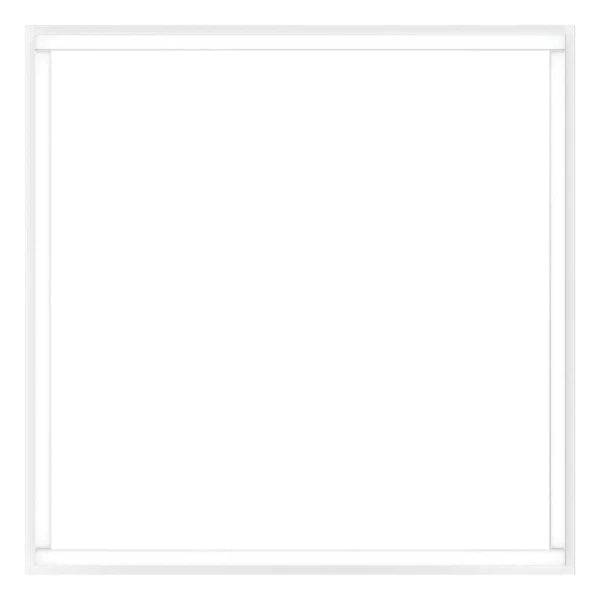

Lithonia Dimmable 2x2 LED FRAME Fixture, Wattage, and Color Selectable
The FRAME fixture from Lithonia has a modern, upscale aesthetic with functionality and performance to match. The FRAME is wattage selectable (23W/31W/39W) and color selectable (3500L/4000K/5000K). Featuring the latest optical technology, the FRAME is designed to provide the same lighting specifications as a traditional LED flat panel.
Equivalent to a 54-74 watt fluorescent fixture.

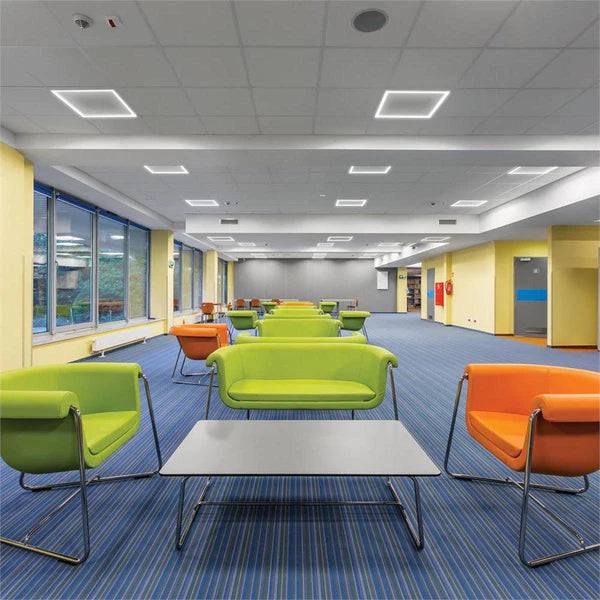

Applications - Offices, schools, retail locations, and hospitals.
- 3-way power and 3-way kelvin (CCT) switches
- Wattage selectable - 23W, 31W, 39W
- Kelvin (CCT) selectable - 3500K, 4000K and 5000K

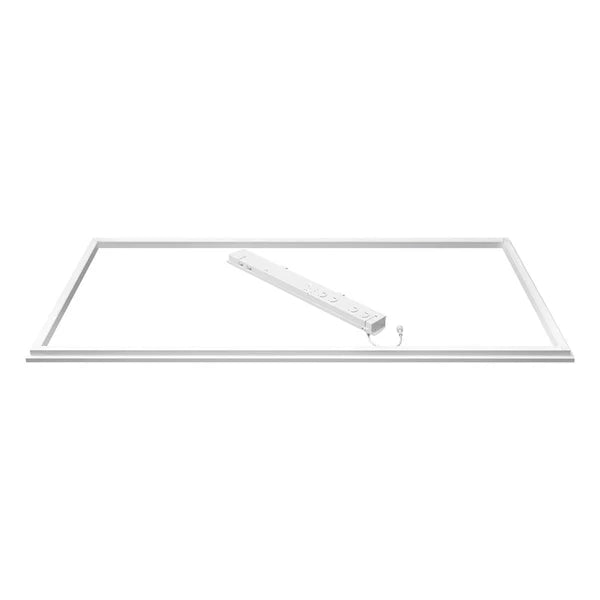

- White extruded aluminum frame easily snaps together
- The FRAME has an outer shield to limit glare while providing uplight to add an aesthetically pleasing glow to the ceiling tile above
- The remote-mounted driver has integral T-bar clips to easily mount into the ceiling and allow for easy access for maintenance
- With an installed depth of only 2.1" and a very lightweight design, the FRAME makes for an easy installation, especially in restricted plenum applications
- Fits into a standard 15/16" and narrow 9/16" T-grid ceiling systems
- IC rated
- 0-10V dimming
|
Brand |
Lithonia Lighting |
|
Model Number |
LFRM 2X2 ALO3 SWW7 MVOLT M6 |
| Energy Used | 20/30/40 Watts |
| Fluorescent Equivalent | 54-74 |
|
Line Voltage |
120-277 |
| CRI | 80 |
| Color Temperature (Kelvin) | 3500/4000/5000 |
| Lowest Color Temperature (Kelvin) | 3500K |
| Highest Color Temperature (Kelvin) | 5000K |
| Brightness (Lumens) | 3000/4000/5000 |
| Average Rated Life (hr) | 50000 |
| Operating Temperature (°F) | -4 to 104 |
