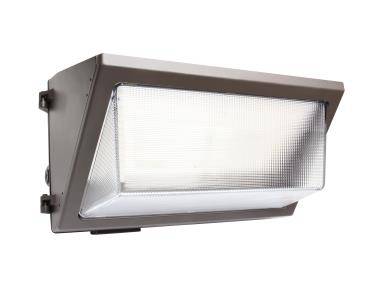

MaxLite 80Watt LED Wall Pack, 10796 lm, 120V-277V, CCT Selectable


MaxLite: MaxLite
Sale price$151.99

Please contact us for quantity discount


MaxLite 80Watt LED Wall Pack, 10796 lm, 120V-277V, CCT Selectable

pdf download

Product Description:
The new generation of WallMax Open Face LED Wall Packs provides flexibility
for distributors and contractors with field-selectable CCTs, wattages (55W and
120W models) and field-installable controls. The housing has been enlarged to
cover HID fixture footprints and accommodate battery backup in all sizes. The
Wall Packs feature a controls-ready receptacle compatible with c-Max controls.
The simple plug-and-play sensor receptacle enables c-Max control nodes to be
added at the time of installation, or in the future. as well as allowing for future
control upgrades without changing the fixture. The receptacle is located at the
bottom of the fixture and looks through a window, which minimizes the impact
on the fixture aesthetics. A cover is included to hide the window when controls
are not used.
CCT selectable between 3000K, 4000K or 5000K
Controls Ready - simple plug and play Sensor Receptacle/Socket
enables installation of c-Max control nodes without changing the fixture
Sealed housing - control nodes are mounted internally without impacting
the fixture sealing or aesthetics
High Voltage Option: 277-480V
Battery Backup Options - 0°C and -20°C
Avi-On Network Controls Option available
CRI: ≥80
Rugged die cast housing with corrosion resistant polyester powder
paint finish
Impact resistant borosilicate glass
Covers old HID footprints (14” and 18”)
4 x 1/2” conduit holes, one on each side for surface conduit applications


Watts (W) 80
Voltage (V) 120-277
Delivered Lumens (lm) 10714.2
Efficacy (lm/W) 135.02
Color Rendering Index (CRI) ≥80
Color Temperature (K) 3000/4000/5000
Equivalent Wattage 400W MH
Beam Angle 110
Power Factor 0.90
Min. Ambient Temp (°F) -40
Max. Ambient Temp (°F) 113
