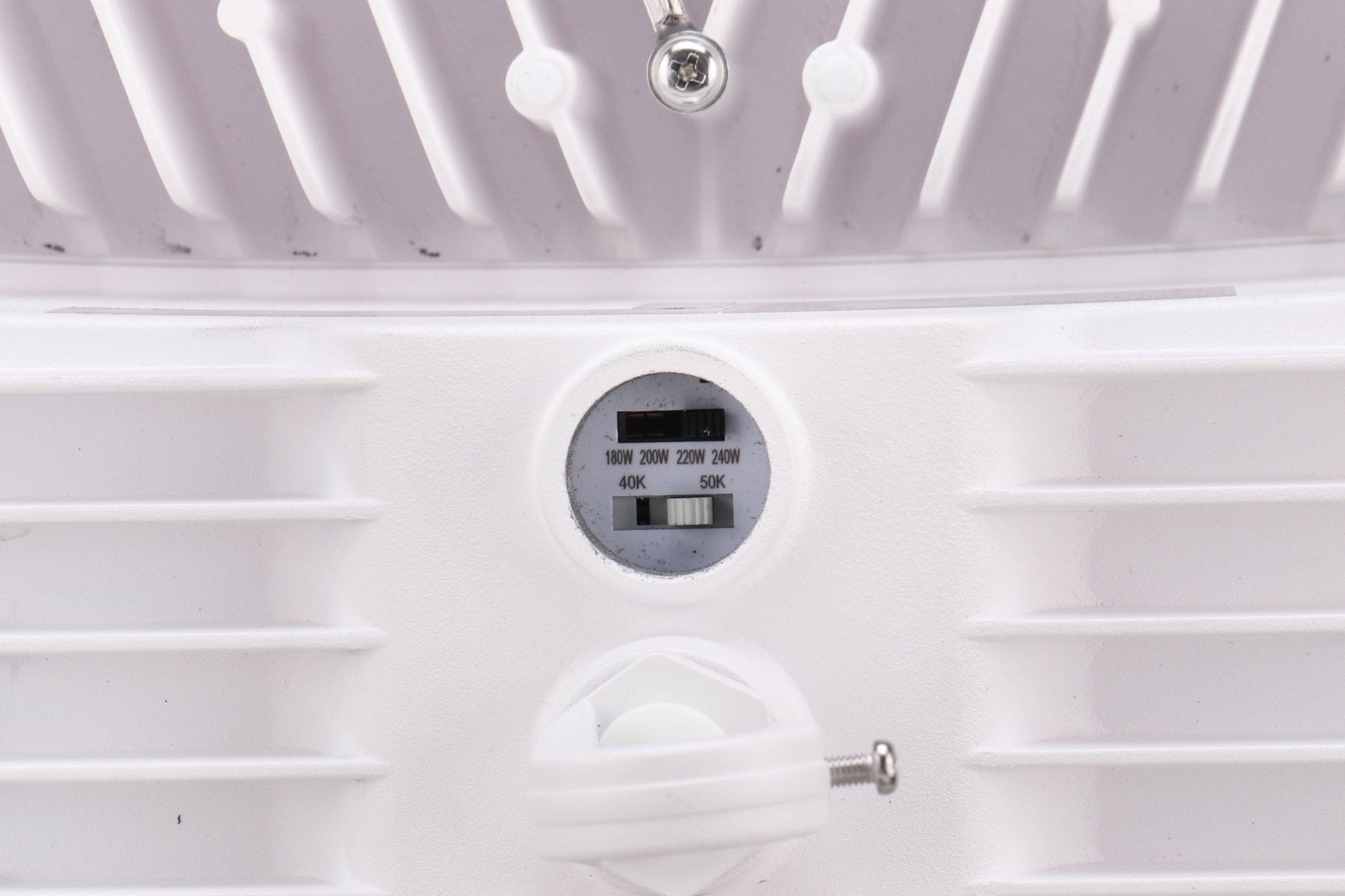

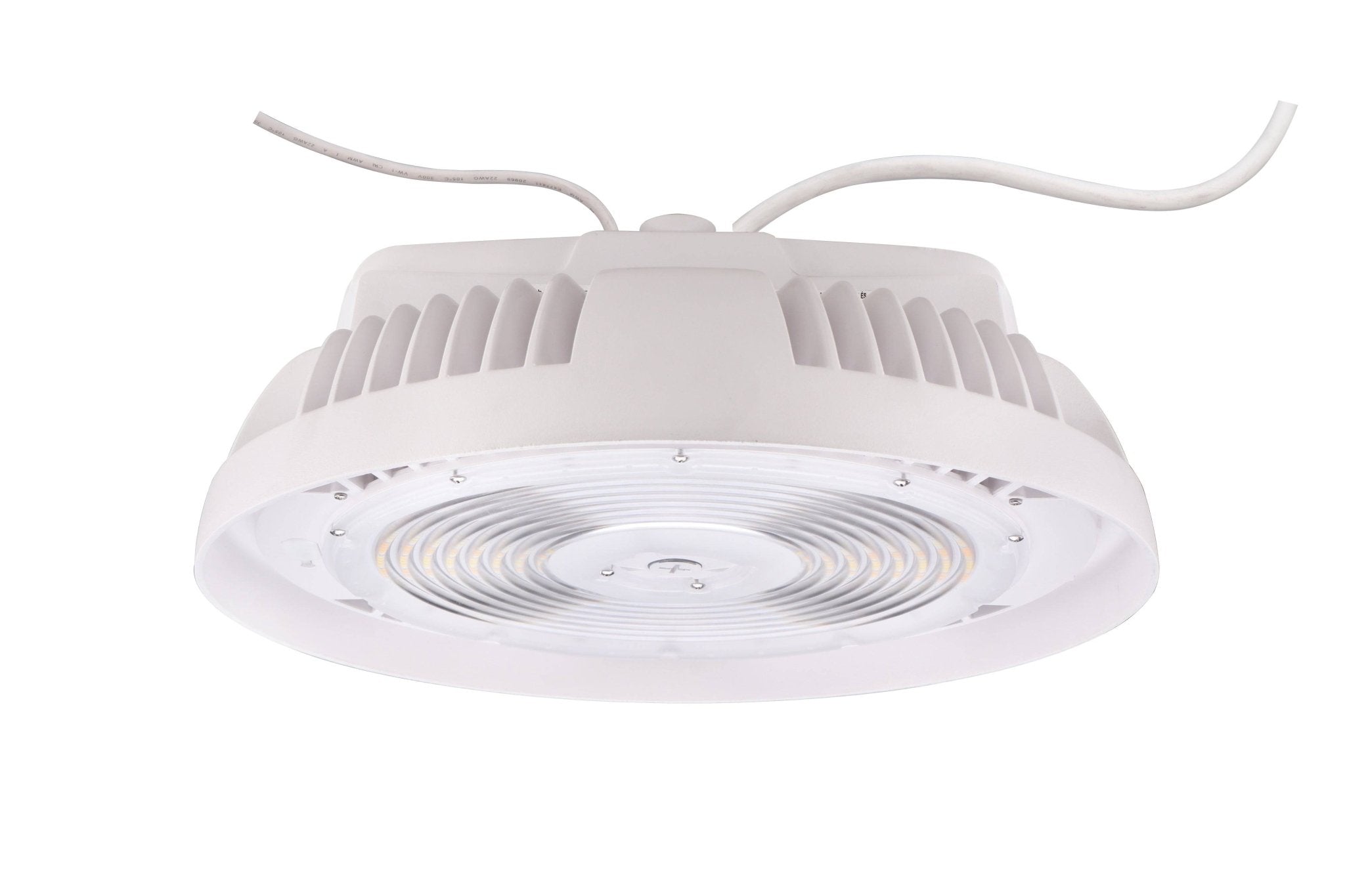

Round LED High Bay, PowerSet 240/220/200/180W, FieldCCeT 4000/5000K, 120-347V, Dimming, White

Part : 13570

Price:
Sale price$255.00

Please contact us for quantity discount

Description

Round LED High Bay, PowerSet 240/220/200/180W, FieldCCeT 4000/5000K, 120-347V, Dimming, White

pdf download

Product Specifications
Voltage 120-347VAC
Lumens (lm) 38,400 / 35,200 / 32,000 / 28,800 lm
Wattage 240/220/200/180W
Efficacy (lm/W) 160 lm/W
CCT (K) 4000K / 5000K
CRI 80+
Dimming 0-10/PWM/Resistance
Replacement for 6 lamp T5 HO / 750W HID (240W HBX3) 6 lamp 4ft 32W T8 / 4 lamp 4ft 54W T5 / 600W HID (180W HBX3)
DLC Version DLC Premium
IP Rating IP65
Wet/Damp/Dry Location Wet
NEMA Enclosure Type NEMA 4X
Dimensions (L x W x H) D: Ø15 3/8" (Ø390 mm), H: 8 11/16" (220 mm)
Housing Color White
Lens Material New Polycarbonate (PC)
Ambient Temp Range -40F to 131F (-40C to 55C)
Brand EiKO
