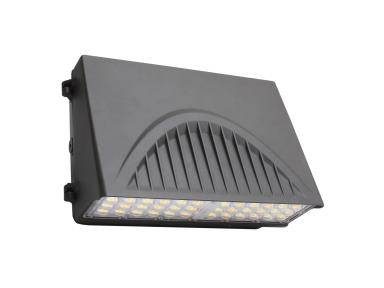

WALLMAX Cutoff Large 40W 4500 Lumens 120/277V TYPE 4 CCT SELECT 3/4/5K Bronze 0C BATTERY BACKUP

Part: WPCL40UT4-CSBEM0
Product Description

WALLMAX Cutoff Large 40W 4500 Lumens 120/277V TYPE 4 CCT SELECT 3/4/5K Bronze 0C BATTERY BACKUP

PRODUCT DESCRIPTION:WallMax Cutoff Wall Packs are a full cutoff architectural wall mounted fixture ideal for commercial offices, schools and other public administrative buildings. It offers a wide range of outputs and options including CCT selectability so the customer can choose between 3000K, 4000K and 5000K color temperatures.

FEATURES:120V-277V, 347V-480V available0-10V dimmingColor Selectable between 3000K, 4000K or 5000KCONTROL OPTIONS:Photocontrol (120V-277V)Dimmable motion sensor with photocontrol (requires RMRC-100 remote control to program)INSTALLATION:1/2" threaded conduit hole in the center of the back housing5 1/2" threaded conduit holes, one on each side of the back housing and 2 on the top of the housingBuilt in level helps ensure straight mounting.

Watts (W) 40
Voltage (V) 120-277
Delivered Lumens (lm) 4500
Efficacy (lm/W) 120
Color Rendering Index (CRI) ≥80
Color Temperature (K) 3000/4000/5000
Equivalent Wattage 150W
Beam Type TYPE IV
Power Factor 0.90
Min. Ambient Temp (°F) 32
Max. Ambient Temp (°F) 104
Dimensions
Size 14.63in X 9.52in X 6
Product Weight (lbs.) 10.58
Product Height (Inches) 6.66
Product Length (Inches) 14.63
Product Width (Inches) 9.52
Pieces per Carton 4
$299.98
Please contact us for quantity discount
