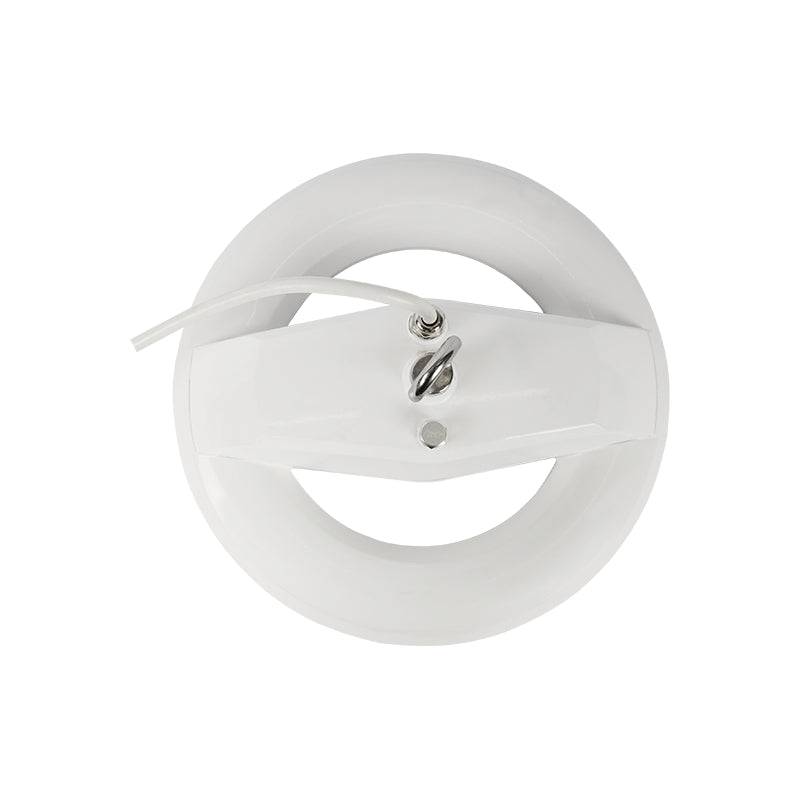

Wash-Down LED Highbay 5000K, 100/150/200 Wattage Selectable

Part : 11851

Sale price$292.50

Please contact us for quantity discount


Wash-Down LED Highbay 5000K, 100/150/200 Wattage Selectable

pdf download

Washdown LED Highbay Series is IP69K rated and ETL Sanitation Listed (conforms to NSF STD.2) for use in food processing and other clean room applications where washdown and product safety are important. The housing is designed to shed water impacting the fixture either through cleaning methods or the processing environment in which it operates. The cast aluminum alloy housing is powder coated for durability and is corrosion resistant in corrosive environments. Hanger hardware is corrosive resistant stainless steel. The IP69K rating provides a dust tight design than can also be cleaned using a high-pressure washer. It features 5000K color temperature with a high >80 CRI which delivers increased visual acuity in labor intensive applications. Rated for use in exposed applications. 0-10V dimming standard and compatible with several controls. High quality LED chips provide for excellent lumen maintenance. DLC® Premium listed.

  • Watt selectable 100, 150 or 200 watt options
  • 5000K color of light
  • 120/277 VAC 50-60Hz
  • 0-10V dimming (pre-wired)
  • NSF certified (for food safety, food processing)
  • IP69K rated for pressure wash down
  • 4kV Surge Protection built in
  • Polycarbonate lens, shatterproof, stronger than glass
  • Durable and corrosion resistant powered coat finish
  • DLC® Premium listed

17.4" Length x 17.4" Width x 7.48" Depth
Weight: 13.15 lbs
UPC: 84079111851

Watts: 100 / 150 / 200
Voltage: 120/277VAC
Power Factor: >0.9
THD: ≤15%
OperatingTemp. Range:
-40°C (-40°F) to 45°C (113°F)
Lumens per Watt: 150
Color Temperature: 5000K
CRI: 80
Dimming: 0-10V

UL/RoHS: Yes
ETL Sanitation:
Listed to NSF STD.2
IP69K: Yes
DLC® Premium: Yes
