Description

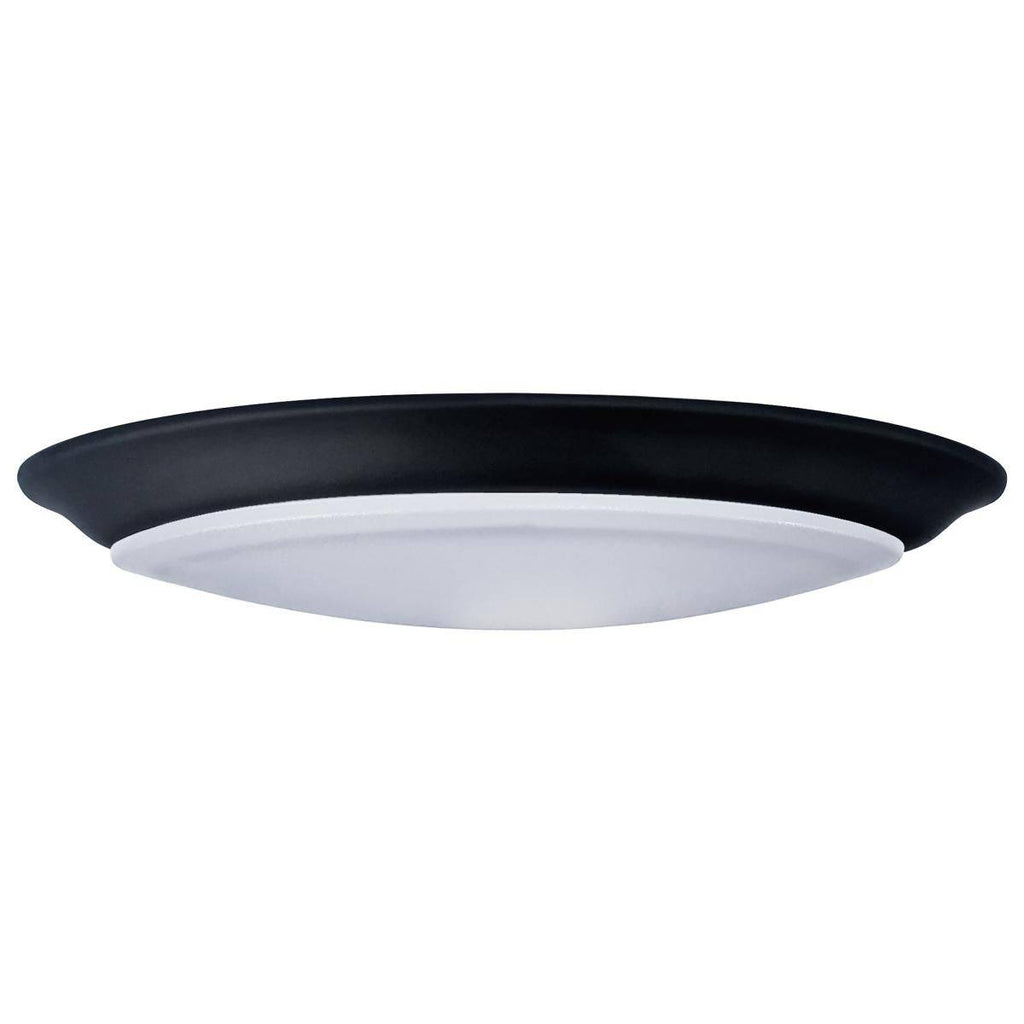

10 inch; LED Disk Light; CCT Selectable 3K/4K/5K; Black Finish
LED Disk Light fixtures now feature Satco's ColorQuick selectable CCT technology for even more versatility. The simple CCT selection, easy installation, choice of diameter size, finish color, and packaging options make these the most functional design available. NEC compliant and wet location rated, the Satco LED disk fixtures are truly an all-purpose lighting solution.
- Closet Rated - NEC 410.16(A)(3) and NEC 410.16(C)(5)
- Mounts to 3 in. and 4 in. Junction Boxes
- Wet Location Rated
- Rated for 50,000 Hours
- 5 Year Warranty
- Diameter: 9.49 inches, Height: 1.28 inches
General
| Status | Active |
| Substitute | 62-1814 |
| Finish | Black |
| Wattage | 16W |
| Style | Transitional |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| Width (in.) | 9.49 |
| Height (in.) | 1.28 |
| Indoor or Outdoor Fixture | Indoor |
Smart Product Info
| IOT Enabled | No |
Specifications
| Technology | LED |
| Wattage | 16W |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| CRI | 90 |
| Lumen Output | 990L-1050L |
| Rated Hours | 50000 |
| Voltage | 120V |
| Dimmable | Yes-Dimmable |
| Fabric Description | Frosted |
| Weight (lb.) | 1.22 |
| Sloped Ceiling | Yes |
| Fixture Shape | Round |
| Fixture Material | Steel |
| Fixture Type | Disk Light |
| Operating Temperature | -35C (-31F) to +50C (+122F) |
Dimensions
| Height (in.) | 1.28 |
| Width (in.) | 9.49 |
Compliance
| Safety Listing | cETLus |
| Location Rating | Wet |
| Energy Star | Yes |
| ES Unique ID | ESID-2399498 |
| DLC Approved | No |
| NSF Approved | No |
| CA T20 / T24 Rationale | California T24 2016 - 2022 JA8 Listed |
| California Status | Lawful for sale in California |
| Title 20 / 24 Status | California T24 Listed |
| California Prop 65 |
Lead
|
| NEC Compliance | Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5) |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Fixture |
Additional Information
| Specification Note | 3000K = 990L; 4000K = 1050L; 5000K = 1000L |
| Warranty | 5 Year Limited - Fixtures |
Packaging
| Each UPC | 045923616778 |
