Description

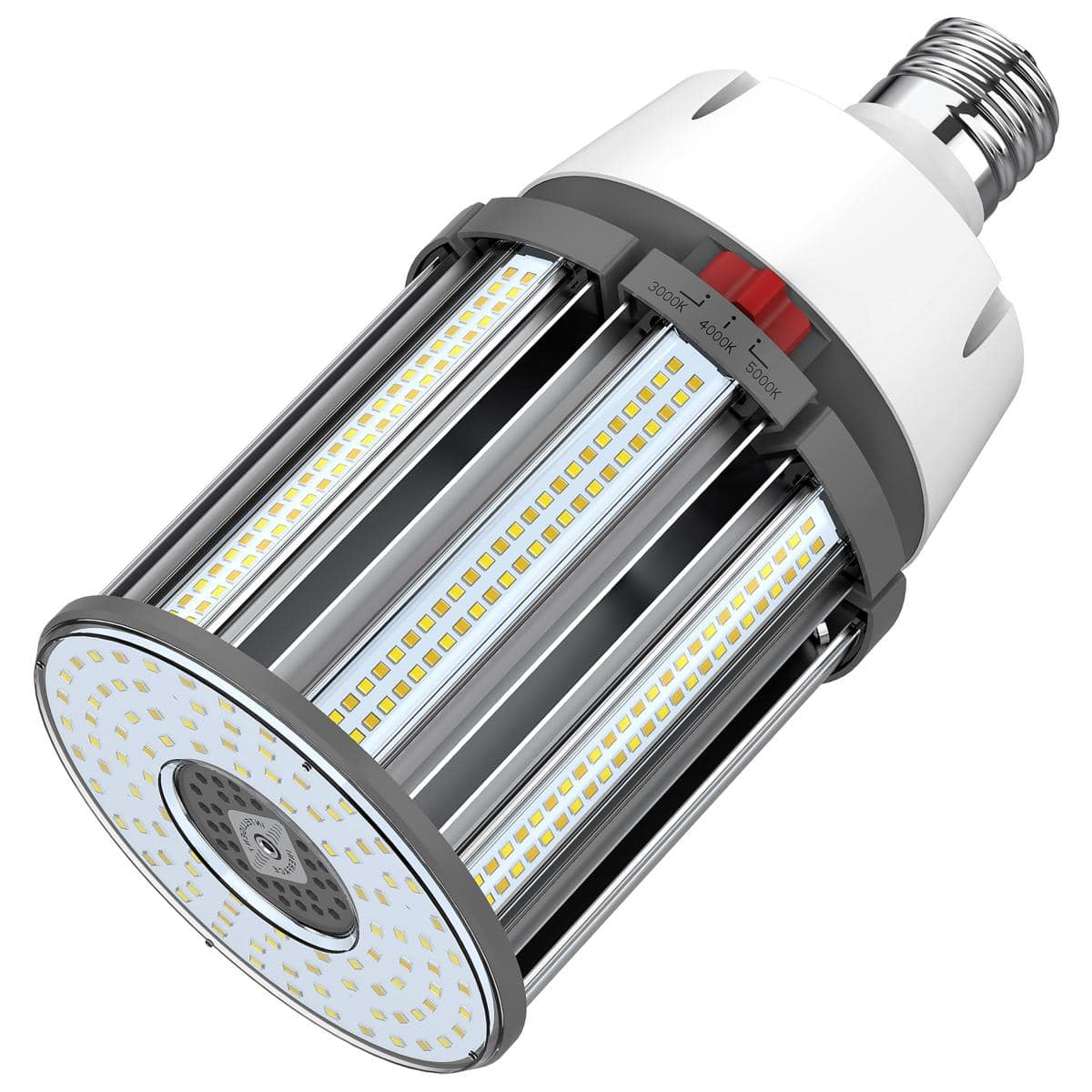

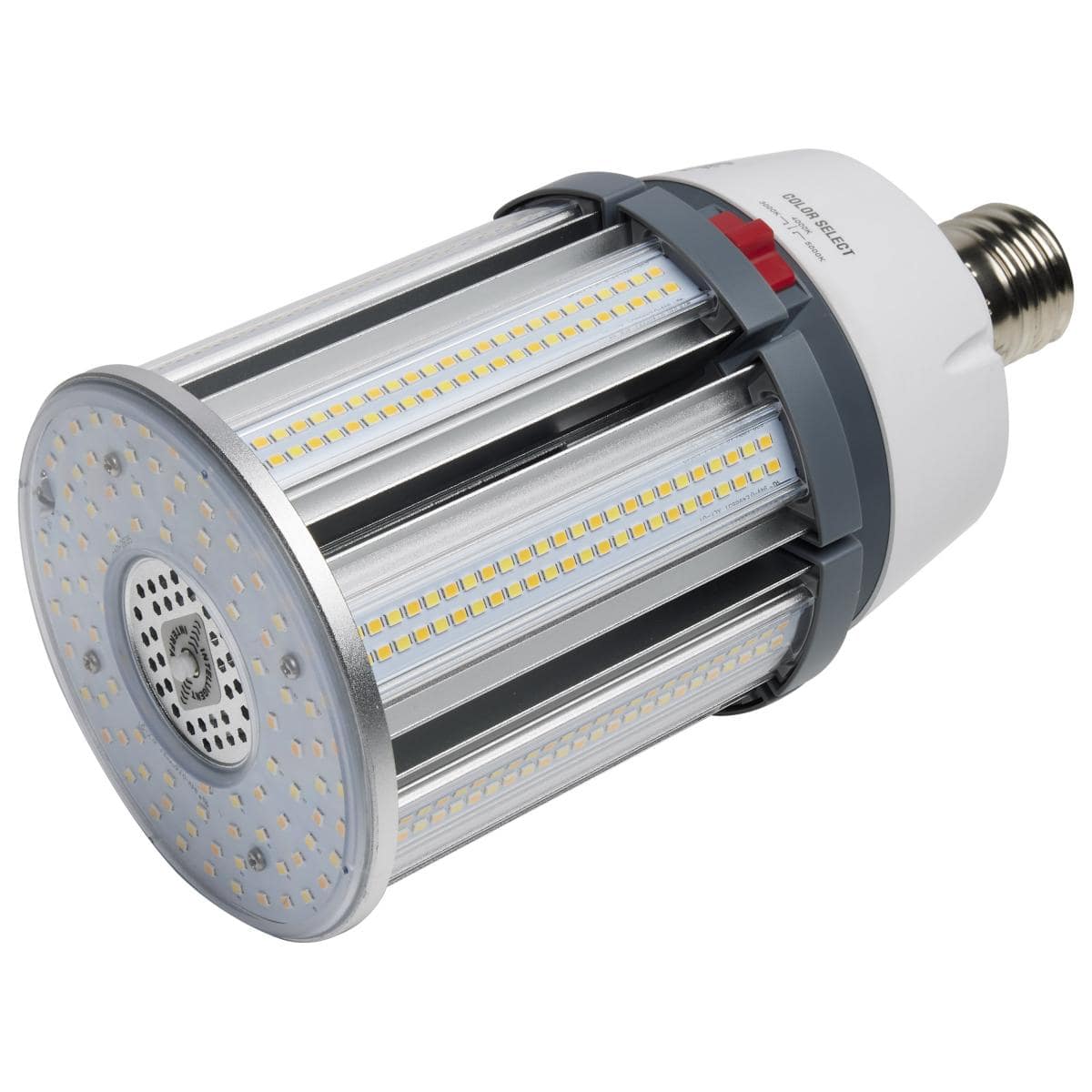

100 Watt LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Mogul Extended Base; 277-480 Volt
General
| Status | Active |
| Watts | 100W |
| Incandescent Equivalent | 400W |
| HID Equivalent | 400W |
| Volts | 277V-480V |
| Shape | Corncob |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | White |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Temperature | Warm to Cool White |
| CRI | 80 |
| Lumens | 13000L/14000L/13500L |
| Beam Spread | 300 |
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | Corncob |
| Technology | LED |
| Min Compartment Size | Length: 9.84 in. Width: 9.84 in. |
| Ballasting Requirements | Ballast Bypass |
Electrical
| Watts | 100W |
| Incandescent Equivalent | 400W |
| HID Equivalent | 400W |
| Volts | 277V-480V |
| Ballasting Requirements | Ballast Bypass |
| Operating Frequency | 50/60Hz |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Temperature | Warm to Cool White |
| CRI | 80 |
| Lumens | 13000L/14000L/13500L |
| Beam Spread | 300 |
| Dimmable | Yes-Dimmable |
| Dimming Type | Smart-Starfish App through Wifi Module only |
| Dimming Note | Only dimmable via WiFi Module 80-954 (available for purchase) and via the Starfish App |
| Power Factor | 0.9 |
| Hours Rated | 50000 |
| Operating Position | Base Up or Down |
| Surge Protection | Built-in surge protection - 4KV |
| THD | 8.50% |
| Operating Temperature | -30C (-22F) to +45C (+113F) |
Physical
| MOL | 10.46 |
| MOD | 5.12 |
| Shape | Corncob |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | White |
| Lens Finish | Clear |
| Lens Material | Plastic |
| Housing Color | Dark Gray |
| Photocell or Sensor | Optional |
| Weight (lb.) | 3.19 |
Additional Information
| Min Compartment Size | Length: 9.84 in. Width: 9.84 in. |
| Rated For Enclosed Fixture | Yes |
| IP Rating | IP64 |
| Warranty | 5 Year Limited - Hi-Pro |
Compliance
| Safety Listing | cULus - Classified; cRUus - Recognized Component |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | S-FUS4GO |
| CA T20 / T24 Rationale | Exempt - Base Not Regulated |
| NSF Approved | No |
| California Status | Lawful for sale in California |
| Title 20 / 24 Status | Lawful for sale |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923231681 |
| Each Quantity | 1 |
| Each Length (in.) | 12.20 |
| Each Width (in.) | 5.51 |
| Each Height (in.) | 5.51 |
| Each Weight (lb.) | 3.57 |
