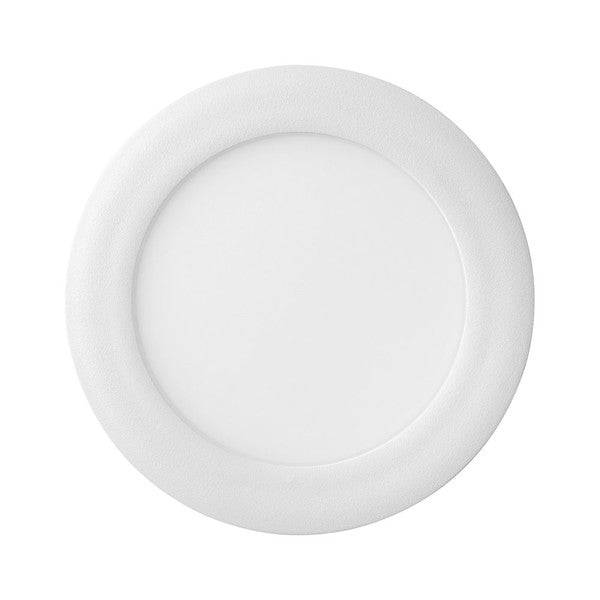

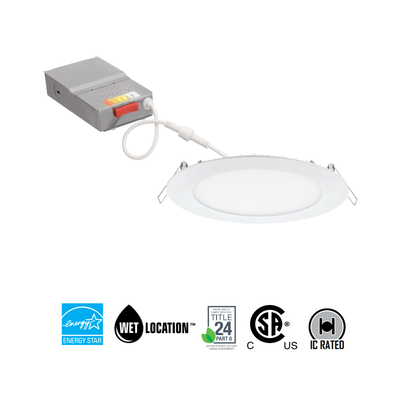

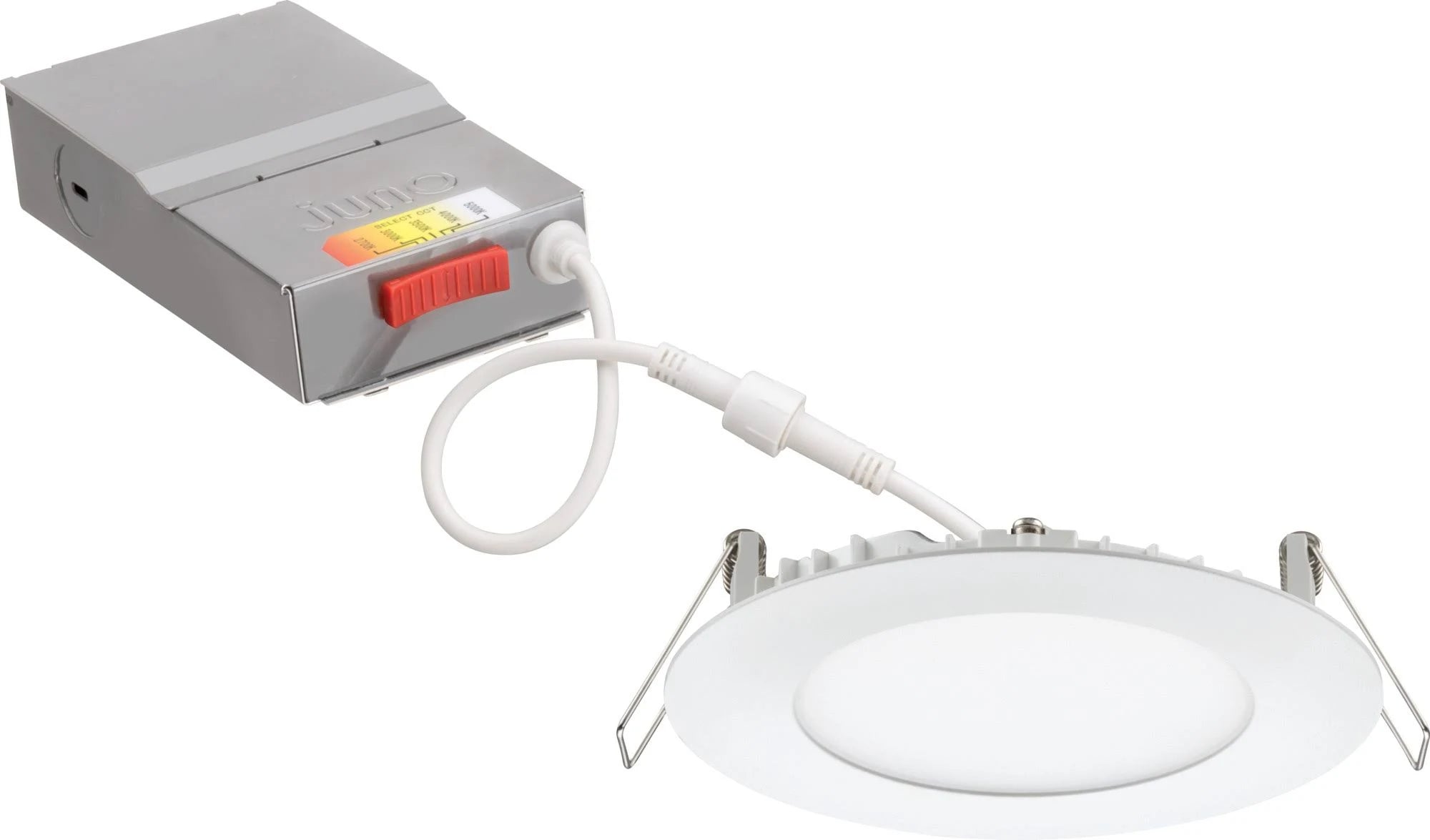

6" LED Ultra-Thin Wafer Switchable Downlight, 970 Lumens, Selectable Color Temperature


Lithonia Lighting: Lithonia Lighting
Sale price$18.65

Please contact us for quantity discount

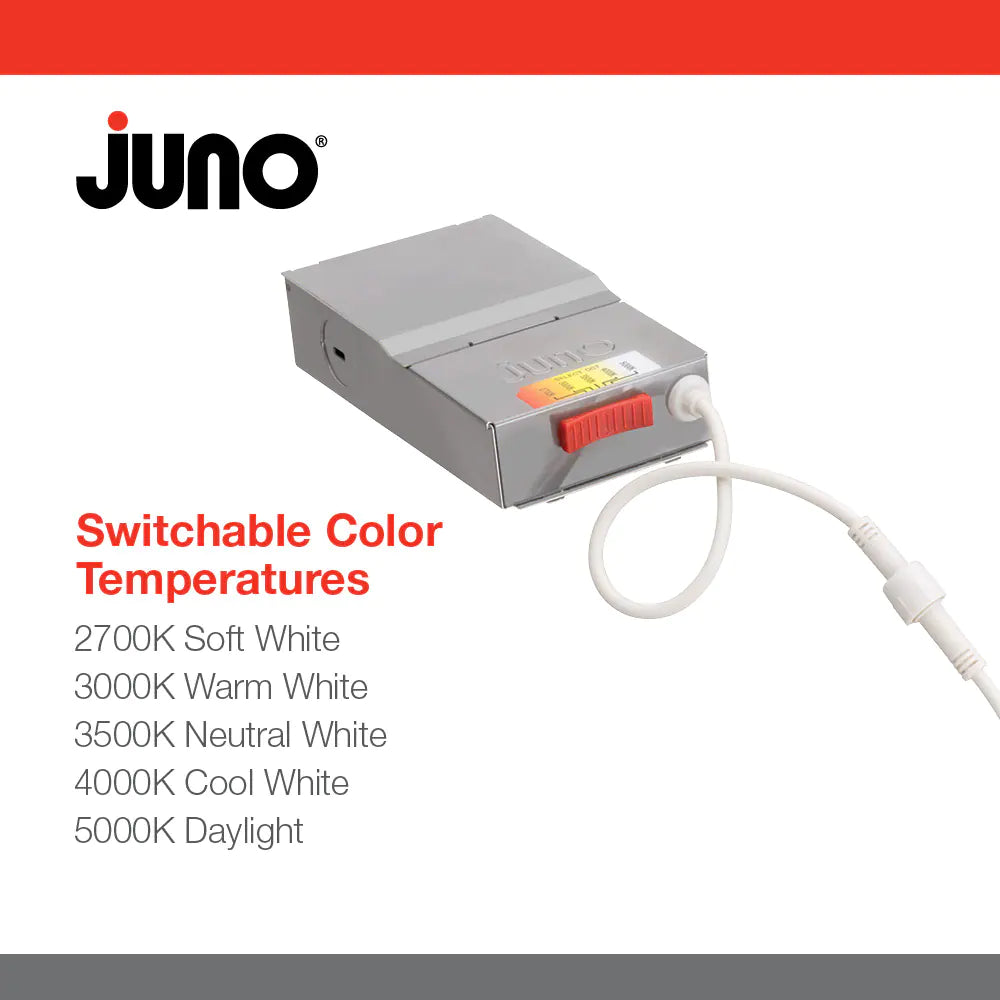

6" LED Ultra-Thin Wafer Switchable Downlight, 970 Lumens, Selectable Color Temperature- 2700K/3000K/3500K/4000K/5000K

pdf download

The 6"Wafer™LED Downlight with Switchable White provides high-quality light output
and efficiency featuring a switch for easy color temperature adjustment - while eliminating the need for recessed housings. The innovative, slim design allows for easy retrofit, remodel or new construction installation from below the ceiling. The LED module maintains at least 70% light output for 50,000 hours.
The Wafer LED downlight is wet location listed – making it ideal for use in a breadth of outdoor residential, hospitality, commercial and multifamily applications.

INSTALLATION — Ideal for shallow ceiling plenum; no housing required. Steel spring clip for easy installation. 6" cut out template is provided to ensure a correct sized hole is cut into ceiling for proper installation of the trim. Size of hole should not exceed 6 1/4 inches for this product. Suitable for installation
in t-grid and drop ceiling applications. 2" plenum space required for installation of the remote driver box.
OPTICS — Edge-lit LED technology uses a light guided plate to distribute light. Polycarbonate lens provides
even illumination throughout the space.
ELECTRICAL — Connect directly to 120V Class-2 (CAN ICES-005 (B) / NMB-005 (B))LED driver. High efficient driver with powerfactor>0.9.Ambient operating temperature:40°F(-40°C)to+104°F(+40°C).Dimming
down to 10% with most standard incandescent dimers (see list of approved dimmers). Replaces 75W incandescent for 850L and 100W incandescent for 1150 lumens
