Description

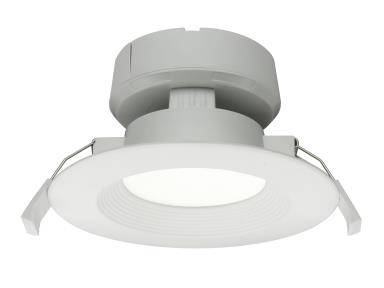

The J-Box Downlilght is an economical all-in-one solution for
recessed down lighting for homes and hospitality, as well as other general lighting applications. The downlight is built with an integral junction box that eliminates the need for a traditional recessed housing, saving installers time and money. Simply connect the junction box wiring to a light switch and place it into the ceiling– no can, bulb or extra labor required. Easy to install in new construction and retrofit projects, the downlight has a slim body that fits into shallow ceilings. Its white baffle trim blends seamlessly into interiors and reduces glare for soft eye-pleasing illumination.
Features
- Mounts directly into ceiling, no housing required
- 120V, 60Hz operation
- IC and Airtight rated for direct installation
- Triac dimming standard
- L70 of 36,000 hours
- Power factor: 0.9
- CRI: 80 Standard, 90 Optional
- 5-year limited warranty
- Suitable for wet locations
- High CRI models comply with Title 24 JA8 code
| Performance | ||
| Input Wattage | 7.0 | |
| Input Voltage Range (V) | 120 | |
| Delivered Lumens (lm) | 524.0 | |
| CBCP (cd) | 0 | |
| Efficacy (lm/W) | 79.0 | |
| Color Rendering Index (CRI) | 90 | |
| Color Temperature (CCT) | 2700 | |
| Equivalent Wattage | 60W INC | |
| Beam Angle | 0 | |
| Power Factor | 0.90 | |
| MAX THD (%) | 0 | |
| Min. Ambient Temp (°F) | -4 | |
| Max. Ambient Temp (°F) | 104 | |
