Description

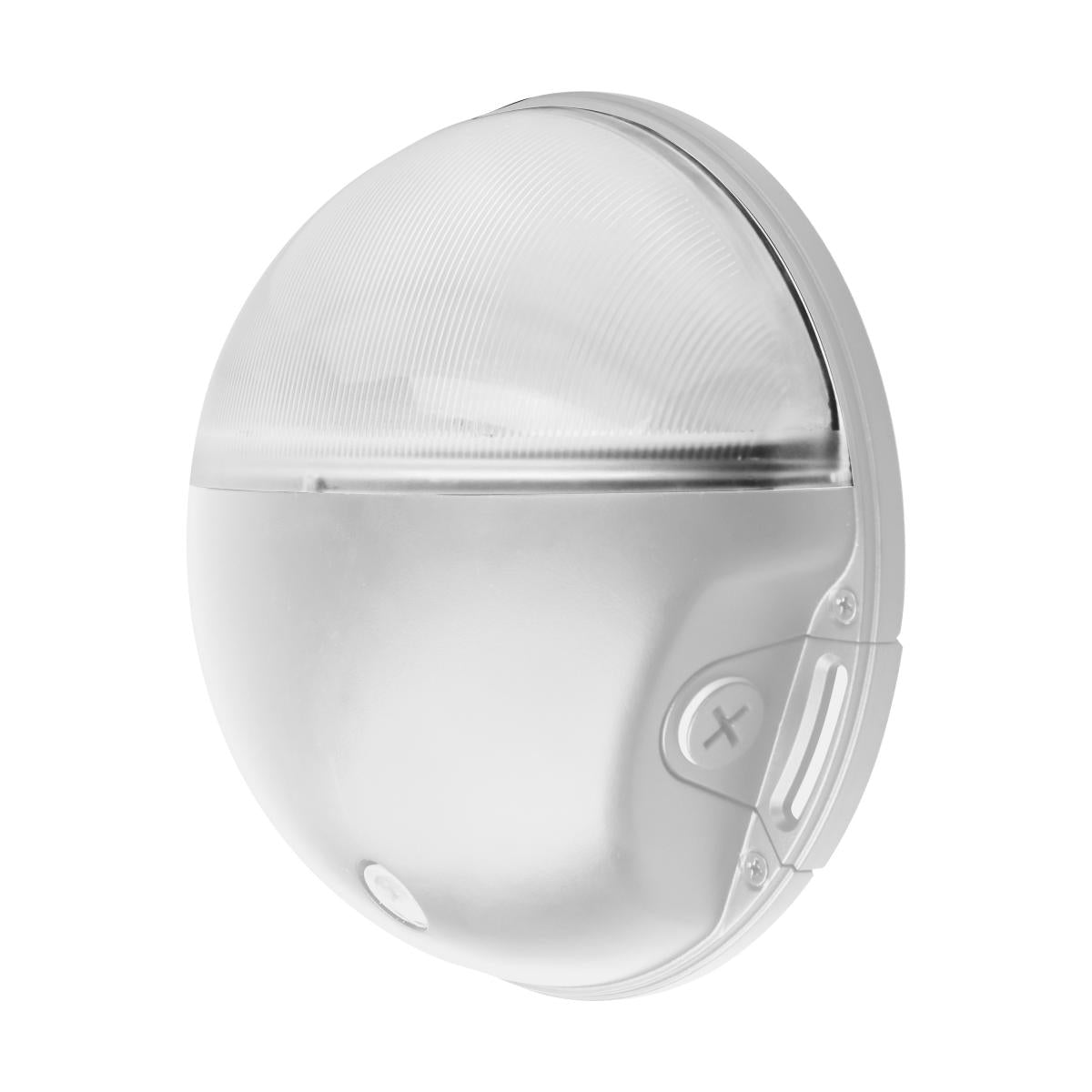

White LED Small Round Wall Pack; 20W; CCT Selectable; Bypassable Photocell
| Finish | White |
| Wattage | 20W |
| Lumen Output | 2600L-2800L |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Temperature | Warm to Cool White |
| IP Rating | IP65 |
| Indoor or Outdoor Fixture | Outdoor |
Specifications
| Technology | LED |
| Wattage | 20W |
| Lumen Output | 2600L-2800L |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| CRI | 80 |
| Voltage | 120V-277V |
| Beam Angle | 100 |
| Rated Hours | 50000 |
| Operating Temperature | -30C (-22F) to +45C (+113F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming Only |
| Photocell or Sensor | Yes - Bypassable |
| Surge Protection | Built-in surge protection - 2.5KV |
| Weight (lb.) | 2.42 |
| IP Rating | IP65 |
| Material | Die-cast Aluminum |

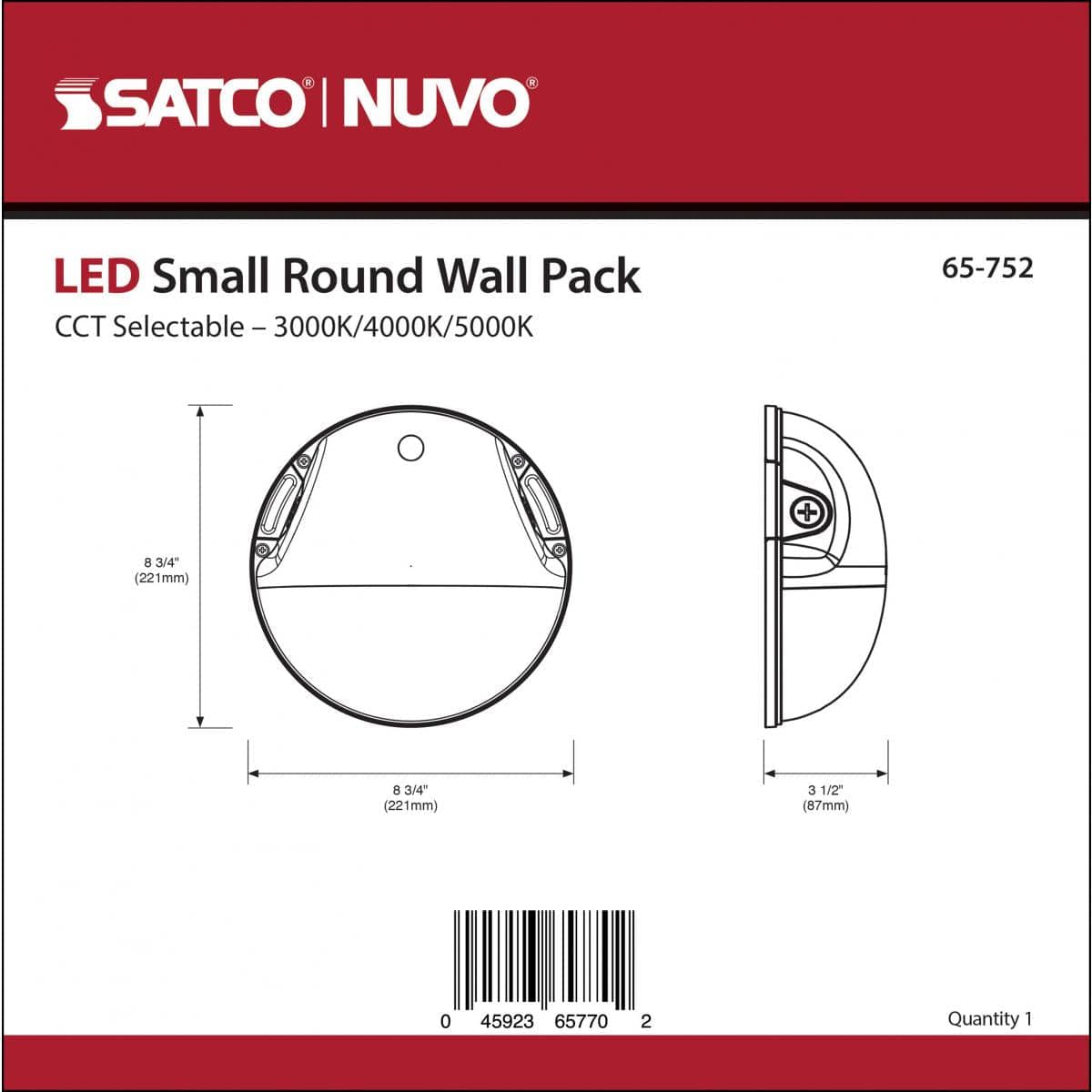

Dimensions
| Height (in.) | 8.7 |
| Extension (in.) | 3.4 |
Compliance
| Safety Listing | cULus - Listed |
| Location Rating | Wet |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PLGEPXY78U37 |
| ADA Compliant | Yes |
| B.U.G. Rating | B1-U3-G2 |
| Air Tight Rated | Yes |
| CA T20 / T24 Rationale | T20 Exempt - Fixtures Not Regulated |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| Flicker Free | Yes |
| SDS Sheet | LED Fixture |
Additional Information
| Additional Information | UV stabilized powder coated finish |
| Warranty | 5 Year Limited - Fixtures |
Packaging
| Each UPC | 045923657702 |
| Each Quantity | 1 |
| Each Length (in.) | 8.94 |
| Each Width (in.) | 8.94 |
| Each Height (in.) | 3.62 |
